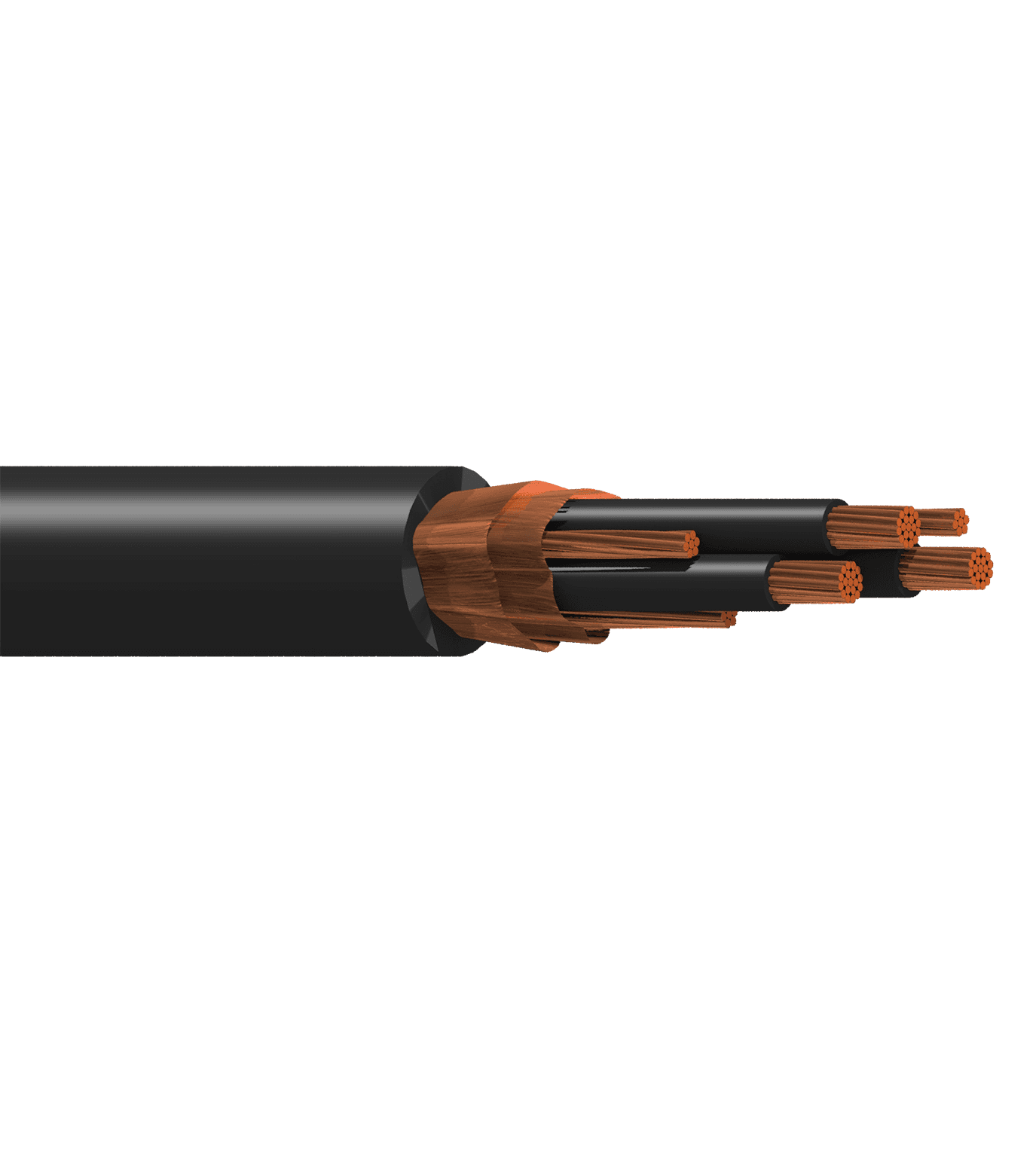

Belden 29528C 010 VFD Cable 3C-1 AWG BC 3G-10 AWG BC
SKU:Belden 29528C 010
$2,422.80
● In stock
Description
Belden 29528C 010 Belden Basics VFD cable is a VFD cable with 3C-1 AWG BC + 3G-10 AWG BC conductors, XLPE insulation, and a shielded black jacket. It features an overall dual copper tapes helically applied shield and an overall PVC jacket with ripcord. Ratings include 600/1000 V TC-ER and 90ºC Wet/Dry.
Applications
- Use in variable frequency drive (VFD) installations where a shielded cable is needed to support drive-to-motor connections.
- Choose for environments that require the listed 90ºC Wet/Dry rating.
- Install where 600/1000 V TC-ER cable is specified.
Specifications
| Attribute | Value |
|---|---|
| Series | Belden Basics VFD |
| Cable type | VFD cable |
| Conductor(s) | 3-1 AWG stranded (19x14) bare copper conductors + 3-10 AWG symmetrical bare copper segmented ground wires |
| Insulation | XLPE insulation on conductors, M4 color code |
| Shield | Overall dual copper tapes helically applied shield |
| Jacket | Overall PVC jacket, ripcord |
| Jacket Color | Black jacket |
| Rating | 600/1000 V TC-ER, 90ºC Wet/Dry |
| Other Part Numbers | 29528C 010, 29528C 010100, 29528C 010250, 29528C 010500, 29528C 0101000 |
| Priced Per | FT |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
Need a cut length, bulk pricing, or a spec sheet?
Our team quotes custom lengths and volume orders, usually same day.
