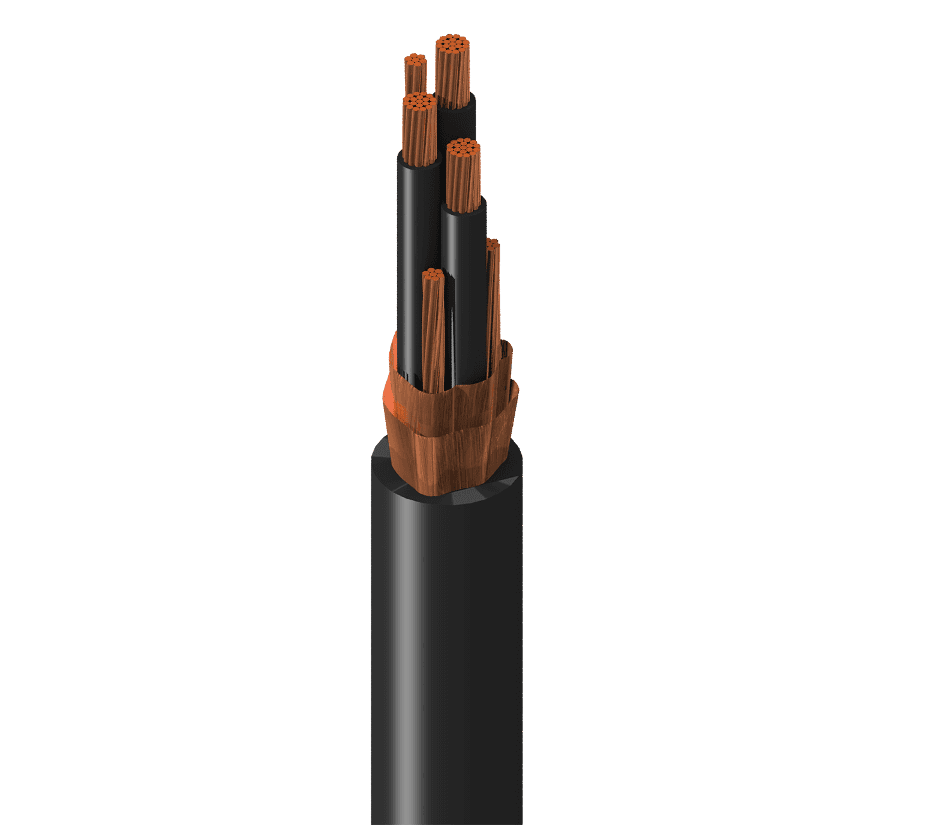

Belden 29528C, Variable Frequency Device Cable 3C 1 AWG 600V PVC
SKU:Belden 29528C
● In stock
Description
Belden 29528C is a Belden Basics VFD variable frequency device cable designed for Variable Frequency Drives (VFD), AC motor and drive systems, and Class 1 Division 2 hazardous locations. It is built with 3 x 1 AWG Stranded (19x14) Bare Copper Conductors and XLPE Insulation with ICEA Chart M4 color coding, plus a 5AWG symmetrical segmented ground (3 of 10AWG) in continuous contact with the overall shield. For noise control and drive performance, it uses an overall dual copper tape helically applied shield with 100% coverage. The black PVC outer jacket includes a ripcord and is rated 600/1000V and 1000 V (TC-ER) with 90°C Dry, 90°C Wet.
Belden 29528C Key Features
- 3 x 1 AWG Stranded (19x14) Bare Copper Conductors with XLPE Insulation and ICEA Chart M4 color coding.
- 5AWG symmetrical segmented ground (3 of 10AWG) Bare Copper Stranded in continuous contact with the overall dual copper tape helically applied shield.
- Overall dual copper tape helically applied shield with 100% coverage for noise control and drive performance.
- Black PVC outer jacket with ripcord, suitable for indoor, outdoor, sunlight resistance, and burial.
- Voltage ratings: 600/1000V and 1000 V (TC-ER); UL temperature: 90°C Dry, 90°C Wet.
Belden 29528C Applications
- Supports Variable Frequency Drives (VFD) installations where a dedicated VFD variable frequency device cable is required for connecting drives and motors.
- Works in AC motor and drive systems to connect equipment while supporting noise control and drive performance through its overall shield.
- Meets the needs of Class 1 Division 2 hazardous locations where the listed application suitability is required.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Conductor count | 3 |
| Conductor notes | ASTM B3 Copper B8 Class B Stranding |
| Segmented ground wire | 3 x 10 AWG |
| Segmented ground stranding | 7x18 |
| Segmented ground notes | Segmented Ground (3 Total 5AWG) |
| Ground wire insulation | No Insulation |
| Insulation nominal thickness | 0.057 in (1.4 mm) |
| Nom. insulation diameter | 0.438 in (11.1 mm) |
| Shield Type | Helical Tape |
| Jacket thickness (nom.) | 0.083 in (2.1 mm) |
| Overall cable diameter (nom.) | 1.121 in (28.47 mm) |
| Print marking | SUN RES DIR BUR |
| Nom. conductor DCR | 0.13 Ohm/1000ft (0.43 Ohm/km) |
| Nom. capacitance cond-to-cond | 35 pF/ft (110 pF/m) |
| Nom. capacitance (Cond-to-other) | 66 pF/ft (220 pF/m) |
| Nom. characteristic impedence | 36 Ohm |
| Nom. inductance | 0.146 µH/ft (0.479 µH/m) |
| Nom. velocity of prop. | 55% |
| Max. current | 145 Amps per Conductor at 30ºC (per NEC) |
| Nom. outer shield DCR | 1.48 Ohm/1000ft (4.86 Ohm/km) |
| Operating temperature | -40°C To +90°C |
| Stationary min. bend radius | 13.5 in (343 mm) |
| Installation min. bend radius | 13.5 in (343 mm) |
| Max Pull Tension | 3637.2 lbs (1649.8 kg) |
| Bulk cable weight | 1162 lbs/1000ft (1729 kg/km) |
| Oil resistance | Oil Resistant |
| Sustainability | CA Prop 65 |
| Flammability / reaction to fire | UL 1685 UL Loading, IEEE 1202 FT4, FT4 |
| NEC / UL compliance | Article 336, TC-ER, XHHW-2 |
| ICEA compliance | S-95-658 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Other standard compliance(s) | P-07-KA070003-MSHA |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
