Belden 29530C 010 VFD Cable 3C-2/0 AWG + 3G-10 AWG
SKU:Belden 29530C 010
$3,763.20
● In stock
Description

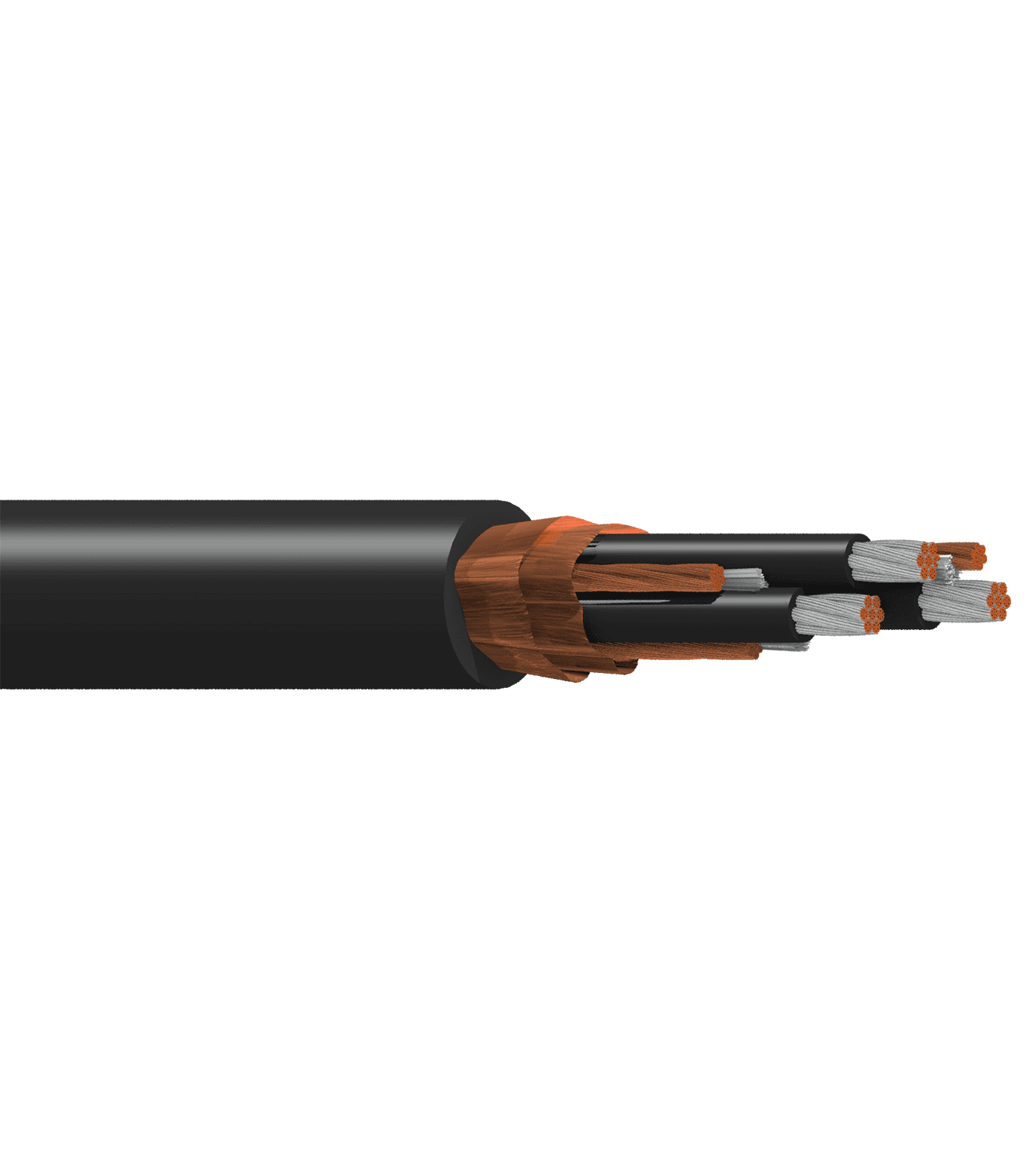

Belden 29530C 010 Belden Basics VFD cable is a VFD cable with 3C-2/0 AWG BC + 3G-10 AWG BC conductors, XLPE insulation, and a black jacket. It features an overall dual copper tapes helically applied shield and an overall PVC jacket with ripcord. Rated 600/1000 V TC-ER and 90ºC Wet/Dry.
Applications
- Used for variable frequency drive installations where a shielded cable is needed for the drive-to-motor connection.
- Meets installation requirements that specify TC-ER cable ratings.
- Fits environments specified as 90ºC Wet/Dry.
Specifications
| Attribute | Value |
|---|---|
| Series | Belden Basics VFD |
| Cable type | VFD Cable |
| Conductor(s) | 3-2/0 AWG stranded (19x12) bare copper conductors + 3-10 AWG symmetrical bare copper segmented ground wires |
| Insulation | XLPE insulation on conductors, M4 color code |
| Shield | Overall dual copper tapes helically applied shield |
| Jacket | Overall PVC jacket, ripcord |
| Jacket Color | Black jacket |
| Rating | 600/1000 V TC-ER, 90ºC Wet/Dry |
| Other Part Numbers | 29530C 010, 29530C 010100, 29530C 010250, 29530C 010500, 29530C 0101000, UPC 612825138105 |
| Priced Per | FT |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
