Belden 3073F C55, Twinaxial Cable 18 AWG 600V PVC Blue
Description

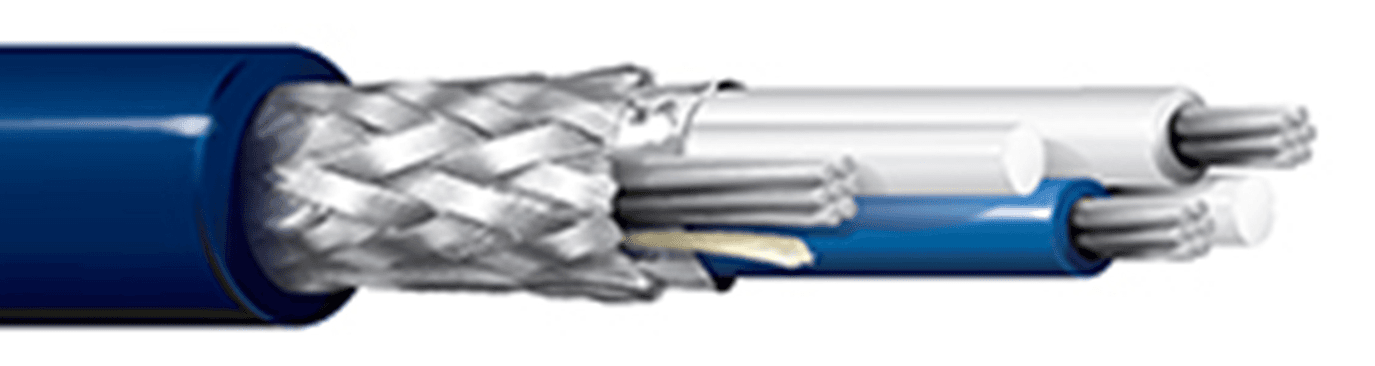

Belden 3073F C55 is a 100 Ohm twinaxial cable with 1 pair of 18 AWG (7x26) TC - Tinned Copper conductors, PP - Polypropylene insulation, and a PVC - Polyvinyl Chloride outer jacket. It features dual shielding with Beldfoil® (100% coverage, foil out) plus a Tinned Copper braid (55%) to help reduce EMI. The cable carries TC, PLTC, ITC, and CMG ratings, with UL voltage rating: 600 V (TC), 300 V (CMG, PLTC). It is listed for indoor/outdoor use with sunlight resistance and UV resistance, and it supports aerial installation when supported by messenger wire.
Belden 3073F C55 Key Features
- 100 Ohm twinaxial construction with 1 pair of 18 AWG (7x26) TC - Tinned Copper conductors.
- Dual shielding: Beldfoil® tape, bi-laminate (Alum+Poly), 100% coverage, foil out, plus a Tinned Copper (TC) braid with 55% coverage.
- PVC - Polyvinyl Chloride outer jacket with PP - Polypropylene insulation (flame retardant).
- Ratings: TC, PLTC, ITC, and CMG.
- Environmental suitability includes indoor/outdoor, sunlight resistance, UV resistance, and aerial - when supported by messenger wire.
Belden 3073F C55 Applications
- Specified for harsh environment installations where durable, rated cabling is required.
- Supports IIoT connectivity in industrial settings where consistent signal transmission is needed.
- Commonly used in factory or process automation systems for signal and communication links.
- Suitable for video, audio, and data communication runs that call for a shielded twinaxial cable.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Conductor diameter (nom.) | 0.046 in |
| Insulation diameter (nom.) | 0.128 in (3.25 mm) |
| Color Code | White & Blue |
| Outer jacket diameter (nom.) | 0.388 in (9.86 mm) |
| Overall cable diameter (nom.) | 0.388 in (9.86 mm) |
| Bulk cable weight | 77 lbs/1000ft |
| Nom. velocity of prop. | 65% |
| Nom. conductor DCR | 6.9 Ohm/1000ft |
| Nom. outer shield DCR | 2.9 Ohm/1000ft (9.5 Ohm/km) |
| UL Voltage Rating | 600 V (TC), 300 V (CMG, PLTC) |
| Attenuation | 2 MHz: 0.41 dB/100ft; 10 MHz: 1.33 dB/100ft; 50 MHz: 2.97 dB/100ft; 100 MHz: 4.20 dB/100ft; 200 MHz: 5.95 dB/100ft; 400 MHz: 7.52 dB/100ft |
| Operating temperature | -40°C to +75°C |
| UL temperature | 75°C Dry, PLTC 75°C Dry/Wet |
| Stationary min. bend radius | 3.2 in (81 mm) |
| Installation min. bend radius | 2.4 in (61 mm) |
| Max Pull Tension | 90 lbs (41 kg) |
| NEC / UL compliance | Article 336, Article 725, Article 727, Article 800, CMG, ITC, PLTC, TC |
| CEC / C(UL) compliance | CMG |
| Flammability / reaction to fire | UL1685 UL Loading, FT1, FT4 |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Sustainability | CA Prop 65 |
| Item Type | Belden Multi-Pair Cable |
| Other Part Numbers | 3073F C55, 3073F C55100, 3073F C55250, 3073F C55500, 3073F C551000 |
| Priced Per | FT |
