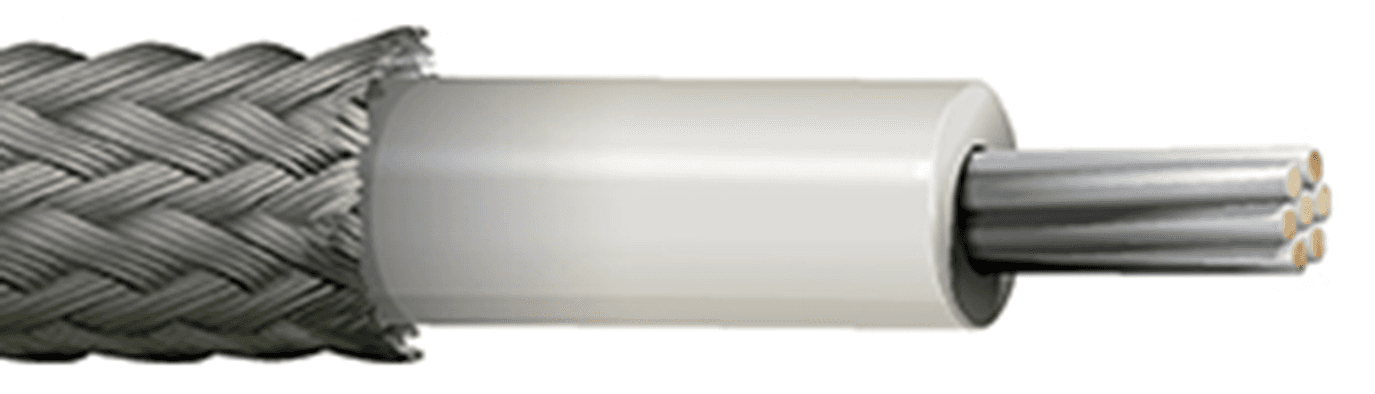

Belden 30801 010, Hook Up Wire 1C 1 AWG Tinned Copper Silicone, Black Jacket
SKU:Belden 30801 010
● In stock
Description
Belden 30801 010 is a 1 AWG rubber lead wire with a lacquered glass braid covering outer jacket and silicone rubber insulation. It features a 1-conductor 210x24 TC - Tinned Copper construction and is rated 600 V under AWM 3126 and CSA SEW-2. This wire is specified for UL temperature 200°C with an operating temperature range of -70°C to +200°C, and it is listed for indoor and outdoor environmental suitability.
Belden 30801 010 Key Features
- This 1 AWG rubber lead wire uses a 1-conductor 210x24 TC - Tinned Copper construction.
- Silicone rubber insulation is specified for UL temperature 200°C and an operating temperature range of -70°C to +200°C.
- The lacquered glass braid covering outer jacket is black, and the insulation color is black.
- It is rated 600 V (AWM 3126) and 600 V (CSA SEW-2).
- Environmental suitability includes indoor and outdoor use.
Belden 30801 010 Applications
- It supports Class 130(B), 155(F) or 180(H) insulation systems.
- Use it for internal wiring of lighting fixtures and appliances.
- It is intended for high temperature applications.
- It is recommended for high-temperature applications in motors, lighting fixtures, clothes dryers, stoves, therapeutic and electronic devices.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Wire type | Rubber lead wire |
| Number of Conductors | 1 |
| Conductor size | 1 AWG |
| Conductor stranding | 210x24 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | Silicone Rubber |
| Outer jacket material | Lacquered Glass Braid Covering |
| Shielding | Not Shielded |
| Insulation nominal thickness | 0.08 in (2.0 mm) |
| Insulation nominal diameter | 0.544 in (13.8 mm) |
| Outer jacket nominal diameter | 0.622 in (15.8 mm) |
| Overall cable diameter (nominal) | 0.622 in (15.8 mm) |
| Bulk cable weight | 382 lbs/1000ft |
| Nominal conductor DCR | 0.143 Ohm/1000ft |
| Max. current | 315.2 Amps per Conductor at 30ºC |
| Bend radius (stationary min.) | 6.22 in (158 mm) |
| Bend radius (installation min.) | 6.22 in (158 mm) |
| Max Pull Tension | 1085 lbs (492.1 kg) |
| Jacket Color | Black |
| Insulation Color | Black |
| AWM compliance | AWM 3126 |
| CEC / C(UL) compliance | SEW-2 |
| Sustainability | CA Prop 65 |
| European directive compliance | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| RoHS Compliant | Yes |
| Item Type | Belden Lead Wire & Hook-Up Wire |
| Other Part Numbers | 30801 010, 30801 010100, 30801 010250, 30801 010500, 30801 0101000 |
| Priced Per | FT |
