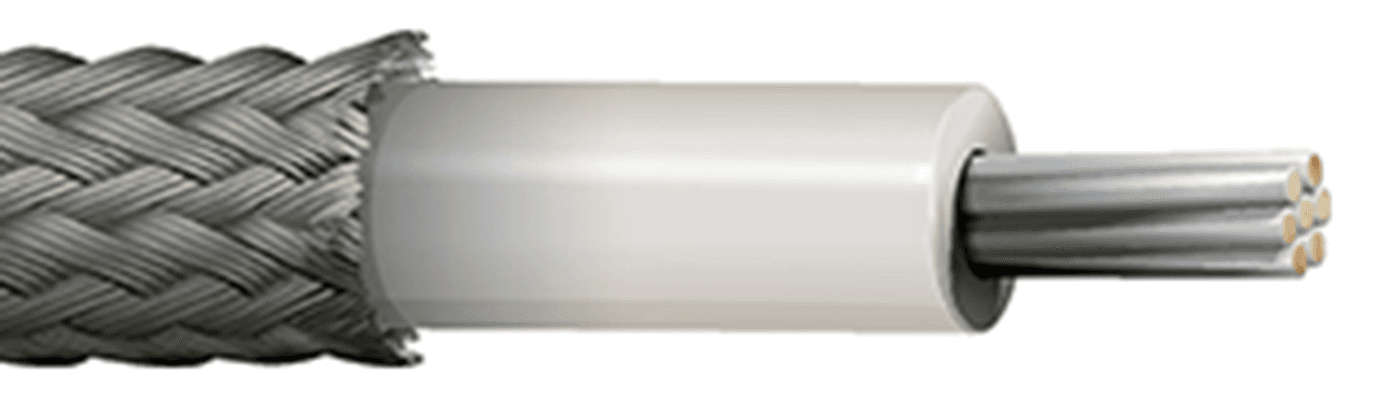

Belden 30802 009, Hook Up Wire 1C 2 AWG Tinned Copper Silicone, White Jacket

Belden 30802 009 is a 2 AWG leadwire with a 1-conductor 163x24 TC - Tinned Copper construction, silicone rubber insulation, and a lacquered glass braid covering outer jacket. It is rated 600 V (AWM 3125) and 600 V (CSA SEW-2) and supports UL temperature: 200°C with an Operating Temperature Range: -70°C To +200°C. Designed for demanding high-temperature wiring in Class 130(B), 155(F) or 180(H) insulation systems, it also provides Nom. Conductor DCR: 0.180 Ohm/1000ft and Max. current: 273.6 Amps per Conductor at 30ºC.

Belden 30802 009 Key Features

• This 2 AWG leadwire uses a 1-conductor 163x24 TC - Tinned Copper construction for high-temperature internal wiring needs.
• Silicone rubber insulation with a lacquered glass braid covering outer jacket helps provide abrasion resistance and reduced fraying.
• Rated 600 V (AWM 3125) and 600 V (CSA SEW-2) for electrical installations requiring these voltage ratings.
• UL temperature: 200°C and Operating Temperature Range: -70°C To +200°C support use in high-temperature environments.

Belden 30802 009 Applications

• Use it for demanding high-temperature wiring in Class 130(B), 155(F) or 180(H) insulation systems.
• Choose it for internal wiring of lighting fixtures and appliances where elevated temperatures are present.
• Apply it in high temperature applications that require UL temperature: 200°C and an Operating Temperature Range: -70°C To +200°C.
• Consider it for high-temperature applications in motors, lighting fixtures, clothes dryers, stoves, therapeutic and electronic devices.
