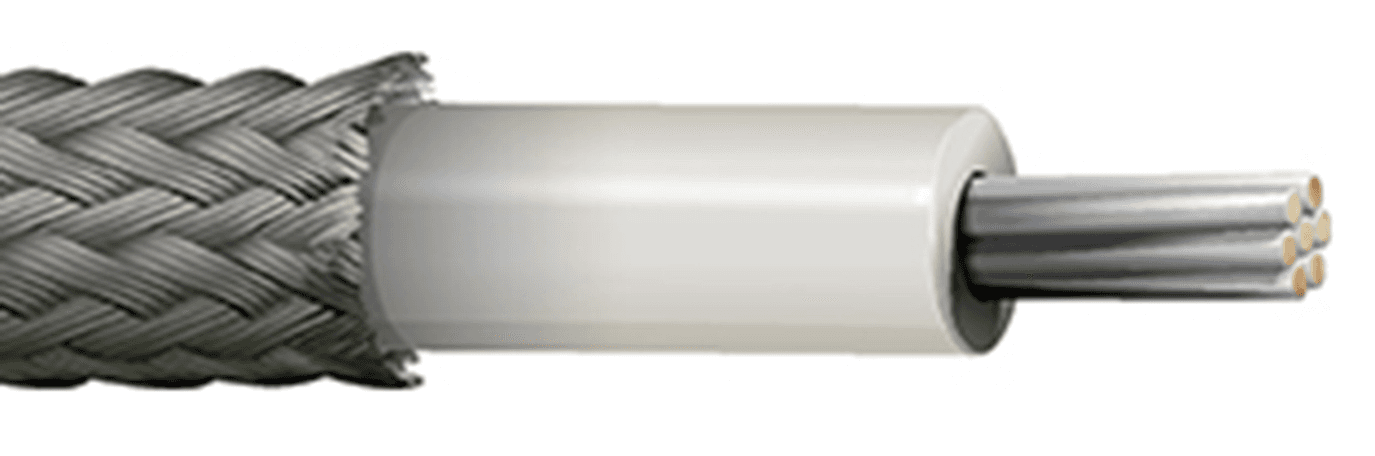

Belden 30804 010, Hook Up Wire 1C 4 AWG Tinned Copper Silicone, Black Jacket
SKU:Belden 30804 010
● In stock
Description
Belden 30804 010 is a leadwire built with a 1-conductor 4 AWG (105x24) TC - Tinned Copper conductor, Silicone Rubber insulation, and a Lacquered Glass Braid Covering outer jacket. It is rated 600 V under AWM 3125 and 600 V (CSA SEW-2), with an operating range of -70°C to +200°C. This wire is suitable for Class 130(B), 155(F) or 180(H) insulation systems and supports internal wiring needs in high temperature applications.
Belden 30804 010 Key Features
- This leadwire features a 1-conductor 4 AWG (105x24) TC - Tinned Copper construction.
- It uses Silicone Rubber insulation with a Lacquered Glass Braid Covering outer jacket.
- The voltage rating is 600 V (AWM 3125) and 600 V (CSA SEW-2).
- The operating temperature range is -70°C to +200°C, with a UL temperature of 200°C.
- It is suitable for Class 130(B), 155(F) or 180(H) insulation systems.
Belden 30804 010 Applications
- This wire is suitable for Class 130(B), 155(F) or 180(H) insulation systems.
- It supports internal wiring of lighting fixtures and appliances.
- It is intended for high temperature applications.
- It is recommended for high-temperature applications in motors, lighting fixtures, clothes dryers, stoves, therapeutic and electronic devices.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Product type | Leadwire |
| Number of Conductors | 1 |
| Conductor size | 4 AWG |
| Conductor stranding | 105x24 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | Silicone Rubber |
| Outer jacket material | Lacquered Glass Braid Covering |
| Insulation Color | Black |
| Jacket Color | Black |
| Shielding | Not Shielded |
| Nom. thickness | 0.063 in (1.6 mm) |
| Nom. insulation diameter | 0.390 in (9.91 mm) |
| Overall cable diameter (nominal) | 0.424 in (10.8 mm) |
| Bulk cable weight | 189 lbs/1000ft |
| Nom. conductor DCR | 0.279 Ohm/1000ft |
| Max. current | 200 Amps per Conductor at 30ºC |
| Stationary min. bend radius | 4.24 in (108 mm) |
| Installation min. bend radius | 4.24 in (108 mm) |
| Max Pull Tension | 532 lbs (241 kg) |
| AWM compliance | AWM 3125 |
| CEC / C(UL) compliance | SEW-2 |
| Sustainability | CA Prop 65 |
| European directive compliance | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Environmental suitability | Indoor, Outdoor |
| RoHS Compliant | Yes |
| Item Type | Belden Lead Wire & Hook-Up Wire |
| Other Part Numbers | 30804 010, 30804 010100, 30804 010250, 30804 010500, 30804 0101000 |
| Priced Per | FT |
