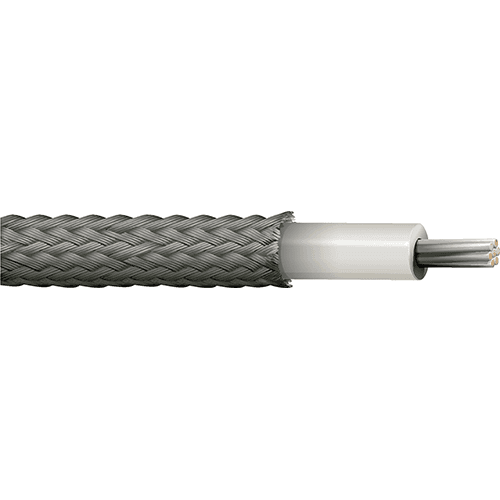

Belden 30806 009, Hook Up Wire 1C 6 AWG Tinned Copper Silicone, White Jacket
Description
Belden 30806 009 is a high-temperature rubber lead wire with a 6 AWG (84x25) TC - Tinned Copper conductor, Silicone Rubber insulation, and a Lacquered Glass Braid Covering. It is rated AWM 3125 and CSA SEW-2, with 600 V RMS and 200°C performance. Built for demanding internal wiring and appliance applications, the silicone insulation is designed to strip easily and cleanly.
Belden 30806 009 Key Features
- Meets UL AWM style compliance AWM 3125 and CSA type SEW-2 for recognized wire style requirements.
- Rated 600 V RMS for electrical performance in specified wiring applications.
- UL temperature rating is 200°C, with an operating temperature range of -70°C to +200°C.
- Lacquered Glass Braid Covering provides added abrasion resistance and fray resistance.
- UL flammability is Horizontal; CSA flammability is FT1.
- Shielded: Not Shielded; Plenum (Y/N): No.
Belden 30806 009 Applications
- Designed for Class 130(B), 155(F) or 180(H) insulation systems where the specified insulation system class is required.
- Supports internal wiring of lighting fixtures and appliances where a high-temperature lead wire is needed.
- Suitable for high temperature applications that call for 200°C performance.
- Recommended for motors, lighting fixtures, clothes dryers, stoves, therapeutic and electronic devices in high-heat equipment environments.
Shipping & Availability
- Footnote: C - CRATE REEL PUT-UP., F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of Conductors | 1 |
| Wire size | 6 |
| Stranding | 84x25 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | Silicone Rubber |
| Nominal wall thickness | 0.063 in |
| Min. average wall thickness | 0.06 in |
| Insulation Color | White |
| Outer jacket material | Lacquered Glass Braid Covering |
| Jacket Color | White |
| Nominal conductor DCR | 0.40 Ohm/1000ft |
| Max. recommended current [A] | Single Conductor in free air @ 30ºC: 165 A |
| CSA rating | 600 V, 200°C |
| Nominal diameter | 0.368 in |
| Minimum minor axis bend radius | 1.48 in |
| Bulk cable weight | 142 lbs/1000ft |
| Recommended maximum baking cycles | 24 Hours @ 410°F (210°C) |
| EU Directive 2000/53/EC (ELV) | Yes |
| EU Directive 2003/96/EC (BFR) | Yes |
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment) | Yes |
| EU directive compliance | EU Directive 2003/11/EC (BFR) |
| CA Prop 65 | Yes |
| MII Order #39 (China RoHS) | Yes |
| Item Type | Belden Lead Wire & Hook-Up Wire |
| Other Part Numbers | 30806 009, 30806 009100, 30806 009250, 30806 009500, 30806 0091000, UPC 612825140573, UPC 612825140580 |
| Priced Per | FT |
