Belden 30890 010, Hook Up Wire 1C 1 0 AWG Tinned Copper Silicone, Black Jacket
SKU:Belden 30890 010
$1,460.50
● In stock
Description

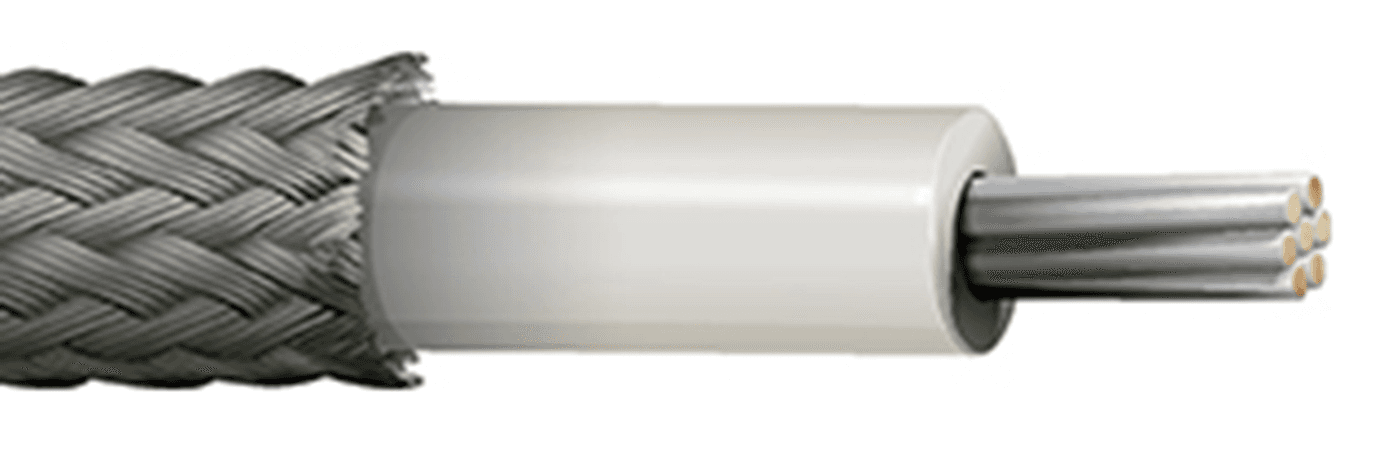

Belden 30890 010 is a 1-conductor rubber lead wire with a 1/0 AWG (262x24) tinned copper conductor, silicone rubber insulation, and a lacquered glass braid outer jacket. It is rated 600 V and 200°C for demanding, high-temperature internal wiring. This wire is suitable for Class 130(B), 155(F) or 180(H) insulation systems and other high temperature applications.
Belden 30890 010 Key Features
- 1-conductor rubber lead wire design for high-temperature wiring applications.
- 1/0 AWG (262x24) tinned copper conductor for the specified conductor construction.
- Silicone rubber insulation for heat resistance and clean stripping.
- Lacquered glass braid outer jacket for abrasion resistance and treatment to help prevent fraying.
- Rated 600 V and 200°C.
- Suitable for Class 130(B), 155(F) or 180(H) insulation systems.
Belden 30890 010 Applications
- Use it in Class 130(B), 155(F) or 180(H) insulation systems.
- Support internal wiring of lighting fixtures and appliances with this wire.
- Choose it for high temperature applications.
- Recommended uses include motors, lighting fixtures, clothes dryers, stoves, therapeutic and electronic devices.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| UL Voltage Rating | 600 V (AWM 3126) |
| Voltage Rating | 600 V (CSA SEW-2) |
| Nom. conductor DCR | 0.114 Ohm/1000ft |
| Max. current | 366.4 Amps per Conductor at 30ºC |
| Shielding | Not Shielded |
| Insulation thickness (nom.) | 0.080 in (2.0 mm) |
| Insulation diameter (nom.) | 0.594 in (15.1 mm) |
| Overall diameter (Nom.) | 0.670 in (17.0 mm) |
| Jacket Color | Black |
| Bulk cable weight | 465 lbs/1000ft |
| Operating temperature | -70°C to +200°C |
| Stationary min. bend radius | 6.7 in (170 mm) |
| Installation min. bend radius | 6.7 in (170 mm) |
| Max Pull Tension | 1321 lbs (599.2 kg) |
| Environmental suitability | Indoor, Outdoor |
| AWM compliance | AWM 3126 |
| CEC / C(UL) compliance | SEW-2 |
| Sustainability | CA Prop 65 |
| European directive compliance | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| RoHS Compliant | Yes |
| Item Type | Belden Lead Wire & Hook-Up Wire |
| Other Part Numbers | 30890 010, 30890 010100, 30890 010250, 30890 010500, 30890 0101000, UPC 612825141174, UPC 612825141181 |
| Priced Per | FT |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
