Belden 3089A 010, Power Limited Tray Cable 1 Triad 18 AWG 600V PVC, Black Jacket
SKU:Belden 3089A 010
● In stock
× 100 ft = Total: 100 ft
Description

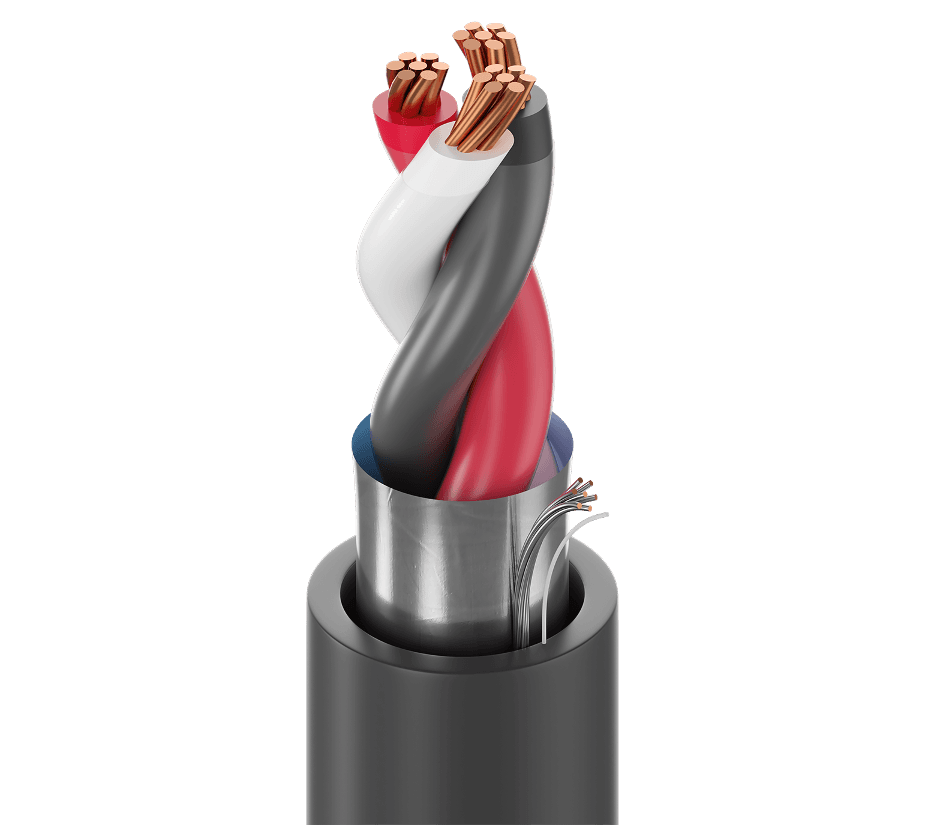

Belden 3089A 010 is a power limited tray cable designed for instrumentation and industrial control wiring in raceways, cable trays, and ducts. It is built with 1 triad 18 AWG (7x26) BC - Bare Copper conductors, PVC/Nylon - Polyvinyl Chloride + Nylon insulation, and a tape shield using Bi-Laminate (Alum+Poly) with 100% coverage. This cable is rated 600 V (TC-ER), 150 V (NPLF) and 90°C Dry, 90°C Wet, with a black PVC - Polyvinyl Chloride outer jacket and Ripcord: Yes. Environmental suitability includes Indoor/Outdoor, Sunlight Resistance, and Burial.
Belden 3089A 010 Key Features
- Power limited tray cable construction for instrumentation and industrial control wiring in raceways, cable trays, and ducts.
- 1 triad 18 AWG (7x26) BC - Bare Copper conductors for control and signal circuits.
- PVC/Nylon - Polyvinyl Chloride + Nylon insulation with Color code: Black, White, Red.
- Tape shield with Bi-Laminate (Alum+Poly) and 100% coverage, plus Drainwire type: 20 AWG (7x28) TC.
- UL Voltage Rating: 600 V (TC-ER), 150 V (NPLF) and UL temperature: 90°C Dry, 90°C Wet.
- Black PVC - Polyvinyl Chloride outer jacket with Ripcord: Yes.
- Environmental suitability: Indoor/Outdoor, Sunlight Resistance, Burial.
- Flammability / reaction to fire: UL 1685 UL Loading, IEEE 1202, FT4.
- NEC / UL compliance: Article 336, Article 760, NPLF, TC-ER.
- European directive compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE).
- APAC compliance: China RoHS II (GB/T 26572-2011).
Belden 3089A 010 Applications
- Used in Industrial Control and control circuits where organized routing through raceways, cable trays, and ducts is required.
- Supports Digital Control and low voltage digital control (24v, …) signal wiring in industrial and control environments.
- Suitable for Instruments (4-20ma, 0-10v, ...) and RTD connections where shielded construction is needed for sensitive signal circuits.
- Commonly installed in distributed control system (DCS) and programmable logic controller (PLC) wiring for control and instrumentation interconnects.
- Connects and controls Solenoids, Valves, actuators, and positioners in industrial automation systems.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of elements | 1 |
| Element type | Triad(s) |
| Insulation nominal thickness | 0.022 in (0.56 mm) |
| Nom. insulation diameter | 0.088 in (2.2 mm) |
| Outer jacket nominal thickness | 0.047 in (1.2 mm) |
| Nom. diameter | 0.290 in (7.37 mm) |
| Overall cable diameter (nominal) | 0.290 in (7.37 mm) |
| Nom. conductor DCR | 7.06 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 47.3 pF/ft (155 pF/m) |
| Nom. capacitance (Cond-to-Shield) | 84.2 pF/ft (276 pF/m) |
| Nom. inductance | 0.199 µH/ft (0.653 µH/m) |
| Max. current | 5 Amps per Conductor at 25ºC |
| Nom. outer shield DCR | 8.08 Ohm/1000ft (26.5 Ohm/km) |
| Operating temperature | -30°C to +90°C Dry, 75°C wet |
| Bend radius (stationary min.) | 3.5 in (89 mm) |
| Bend radius (installation min.) | 3.5 in (89 mm) |
| Max Pull Tension | 80 lbs (36 kg) |
| Bulk cable weight | 47 lbs/1000ft |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
