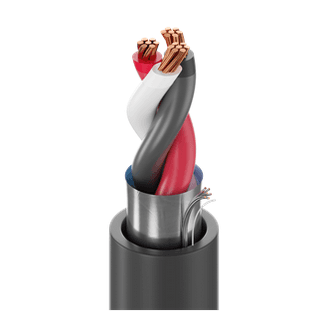

Belden 3091A 010, Power Limited Tray Cable 1 Triad 16 AWG 600V PVC, Black Jacket
SKU:Belden 3091A 010
● In stock
Description
Belden 3091A 010 is a power limited tray cable designed for industrial control and instrumentation wiring in raceways, cable trays, and ducts. It features 1 triad 16 AWG (7x24) BC - Bare Copper conductors with PVC/Nylon - Polyvinyl Chloride + Nylon insulation and an overall Beldfoil® shield. Rated 600 V (TC-ER) and 150 V (NPLF), it is specified for control applications including DCS, PLC, RTD, and 4-20ma loops. The black PVC - Polyvinyl Chloride outer jacket is Sunlight Resistant and listed for Indoor/Outdoor use, including Burial.
Belden 3091A 010 Key Features
- Power limited tray cable construction for industrial control and instrumentation wiring in raceways, cable trays, and ducts.
- 1 triad 16 AWG (7x24) BC - Bare Copper stranded conductors for control and instrumentation circuits.
- PVC/Nylon - Polyvinyl Chloride + Nylon insulation with color code: Black, White, Red.
- Overall Beldfoil® shield with 100% coverage and 18 AWG (7x26) TC drainwire.
- Black PVC - Polyvinyl Chloride outer jacket with Sunlight Resistance and environmental suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial.
- UL voltage rating: 600 V (TC-ER), 150 V (NPLF).
- UL temperature: 90°C Dry, 90°C Wet.
- NEC / UL compliance: Article 336, Article 760, NPLF, TC-ER.
- Flammability / reaction to fire: UL 1685 UL Loading, IEEE 1202, FT4.
- Ripcord: Yes; Armor: No.
Belden 3091A 010 Applications
- Use it for industrial control and control circuits where a power limited tray cable is specified.
- Install it in raceways, cable trays, and ducts for organized routing in control and instrumentation systems.
- Support digital control and low voltage digital control (24v, …) signal wiring with this cable.
- Apply it with instruments (4-20ma, 0-10v, ...) and other instrumentation loops where shielded signal wiring is required.
- Use it in RTD circuits for instrumentation and monitoring systems.
- Deploy it in distributed control system (DCS) and programmable logic controller (PLC) installations for control and instrumentation wiring.
- Connect solenoids and field devices such as valves, actuators, positioners in control systems with this cable.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of elements | 1 |
| Element type | Triad(s) |
| Conductor Type | Stranded Conductor |
| Insulation thickness (nom.) | 0.022 in (0.56 mm) |
| Insulation diameter (nom.) | 0.101 in (2.57 mm) |
| Shield Type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Shield type (overall) | Overall aluminum mylar Foil Shield |
| Jacket thickness (nom.) | 0.047 in (1.2 mm) |
| Overall cable diameter (nominal) | 0.315 in (8.00 mm) |
| Nom. conductor DCR | 4.45 Ohm/1000ft |
| Max. current | 6.2 Amps per Conductor at 25°C |
| Nom. outer shield DCR | 5.47 Ohm/1000ft (17.9 Ohm/km) |
| Operating temperature | -30°C to +90°C Dry, 75°C wet |
| Bend radius (stationary min.) | 3.8 in (97 mm) |
| Bend radius (installation min.) | 3.8 in (97 mm) |
| Max Pull Tension | 129 lbs (58.5 kg) |
| Bulk cable weight | 62 lbs/1000ft |
| European directive compliance | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Other Part Numbers | 3091A 010, 3091A 010100, 3091A 010250, 3091A 010500, 3091A 0101000, UPC 612825141273 |
| Priced Per | FT |
