Belden 3092A 010, ControlNet Coaxial 18 AWG Quad Shielded PVC
SKU:Belden 3092A 010
● In stock
Description

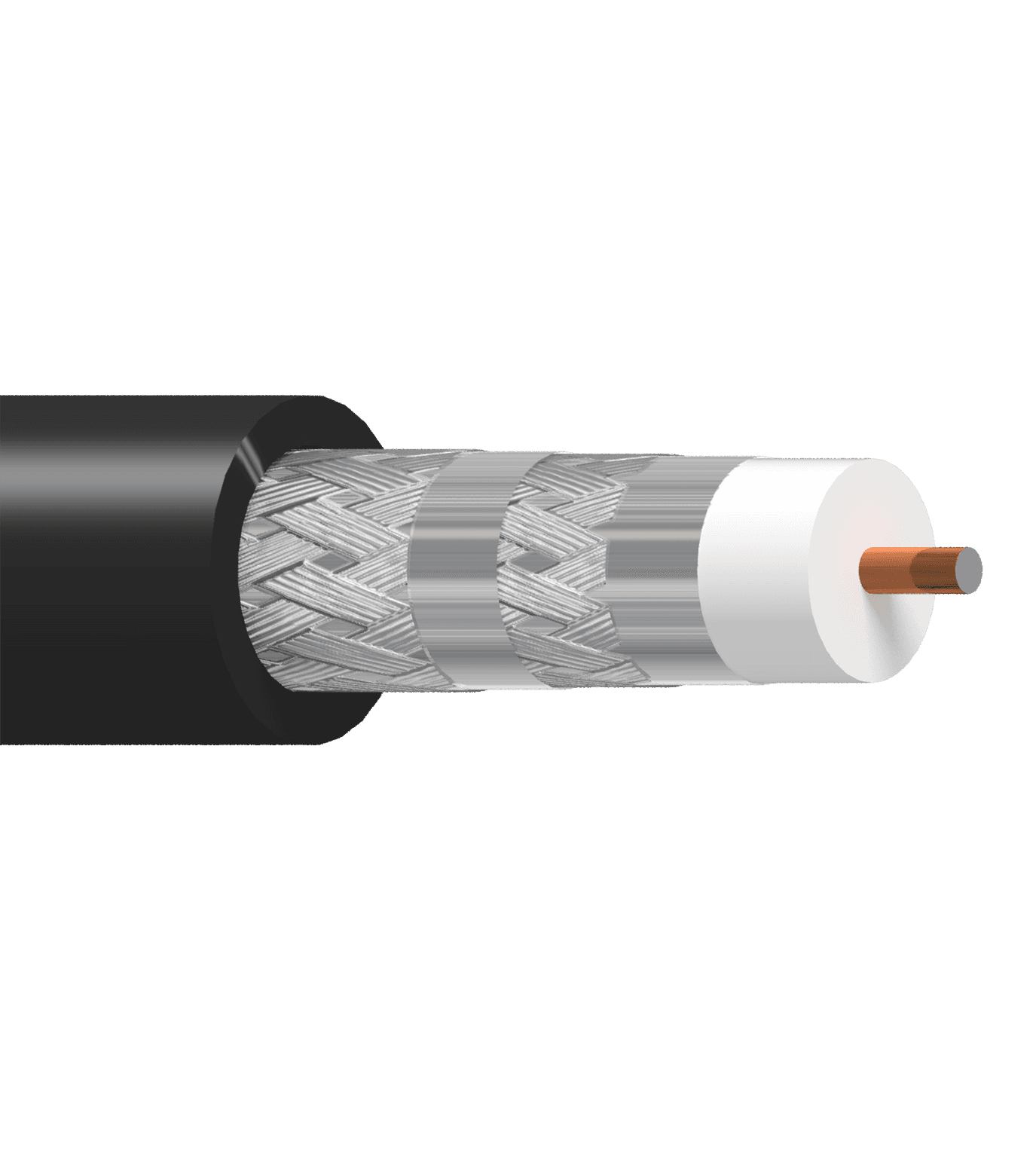

Belden 3092A 010 is a ControlNet coaxial RG-6 cable for harsh environment factory automation networks, including ControlNet™, Modbus II, and other industrial coax applications. It uses an 18 AWG solid BCCS - Bare Copper Covered Steel conductor with foam PE insulation and a quad-shield construction. The shield system combines Duobond® II tape, aluminum braid (60%), Duofoil® tape, and aluminum braid (40%) under a black PVC outer jacket. It is rated 75 Ohm with 300 V (CMR, CMG) and UL 75°C performance.
Belden 3092A 010 Key Features
- ControlNet coaxial RG-6 cable designed for industrial coax network installations.
- 18 AWG solid BCCS - Bare Copper Covered Steel conductor for consistent coax performance.
- Quad-shield design using Duobond® II tape, aluminum braid (60%), Duofoil® tape, and aluminum braid (40%).
- 75 Ohm nominal characteristic impedance for ControlNet™ and Modbus II coax applications.
- UL voltage rating: 300 V (CMR, CMG).
- UL temperature: 75°C.
Belden 3092A 010 Applications
- Supports harsh environment factory automation installations where industrial coax connectivity is required.
- Commonly used in ControlNet™ and Modbus II networks, as well as other industrial coax applications.
- Helps provide maximum signal integrity and run length for ControlNet factory floor applications.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Coax Type | RG-6 |
| Conductor | 18 AWG, Solid, 0.040 in, BCCS - Bare Copper Covered Steel |
| Insulation | PE - Polyethylene (Foam), 0.180 in (4.57 mm), White |
| Outer jacket | PVC - Polyvinyl Chloride, 0.303 in (7.70 mm) |
| Overall cable diameter (nominal) | 0.303 in (7.70 mm) |
| Jacket Color | Black |
| Bulk cable weight | 33 lbs/1000ft |
| Plenum number | 3093A |
| Nom. velocity of prop. | 83% |
| Nom. capacitance (Cond-to-Shield) | 16.2 pF/ft (53.1 pF/m) |
| Nom. conductor DCR | 28 Ohm/1000ft |
| Nom. outer shield DCR | 2.6 Ohm/1000ft (8.5 Ohm/km) |
| Return loss (min. structural) | 5 - 50 MHz, 23 dB |
| Attenuation (nom.) | 1 MHz: 0.35 dB/100ft; 2 MHz: 0.38 dB/100ft; 5 MHz: 0.45 dB/100ft; 10 MHz: 0.59 dB/100ft; 20 MHz: 0.86 dB/100ft; 50 MHz: 1.37 dB/100ft; 100 MHz: 1.97 dB/100ft; 200 MHz: 2.82 dB/100ft; 300 MHz: 3.48 dB/100ft; 400 MHz: 4.04 dB/100ft |
| Operating temperature | -30°C to +75°C |
| Installation min. bend radius | 3 in (76 mm) |
| Max Pull Tension | 162 lbs (73.5 kg) |
| Environmental suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Aerial - When supported by messenger Wire |
| Sustainability | CA Prop 65 |
| NEC / UL compliance | CMR, CL2R, CMG |
| CEC / C(UL) compliance | CMG |
| Flammability / reaction to fire | UL1666 Vertical Shaft |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Coaxial Cable RG6 |
| Other Part Numbers | 3092A 010, 3092A 010100, 3092A 010250, 3092A 010500, 3092A 0101000 |
| Priced Per | FT |
