Belden 3094A F2V ControlBus Coax RG11 14 AWG Gray PVC
Description

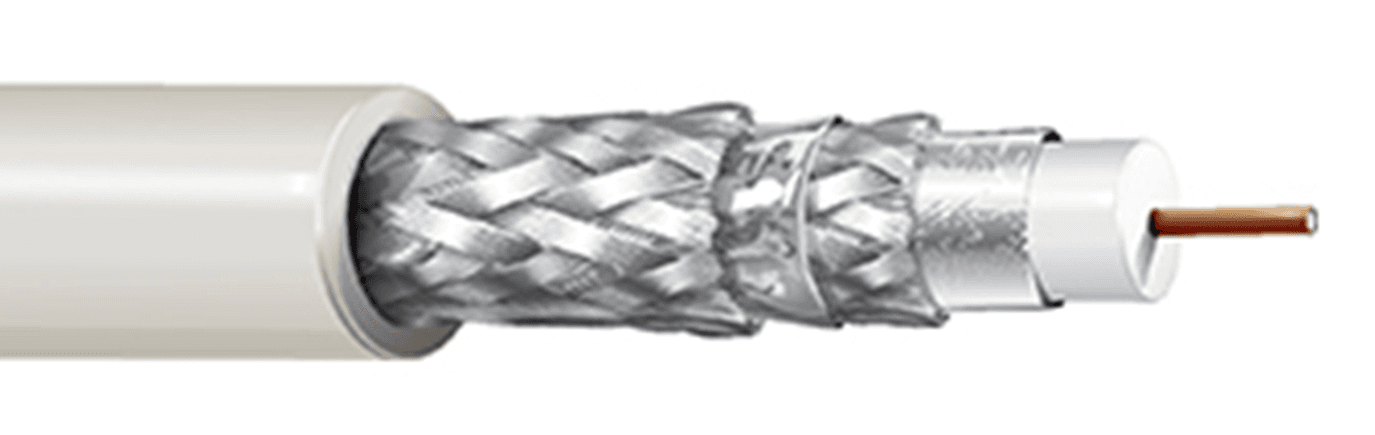

Belden 3094A F2V ControlBus™ Coax RG-11 cable features a 14 AWG solid bare copper-covered steel conductor, foam PE insulation, and an overall PVC jacket in Dec Gray. This shielded coax includes an overall Duofoil® + 60% aluminum braid + Duofoil® + 40% aluminum braid shield. It is rated 300 V, 75°C and CMR-rated.
Applications
- Use in ControlBus™ coax RG-11 installations where a shielded construction is needed for signal integrity.
- Choose for runs that require a CMR-rated cable.
- Install where a 300 V, 75°C cable rating is required.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 1 Coax |
| Conductor Gauge Size | 14 AWG |
| Conductor Type | Bare Copper Covered Steel |
| Insulation Material | Foam PE |
| Shield Type | Foil + 60% AL & Foil + 40% AL Braid |
| Jacket Material | PVC - Polyvinyl Chloride |
| Voltage | 300 V |
| Approvals | CMR |
| Item Type | Belden Coaxial Cable RG11 |
| Weight /LBS per 1000FT | 234 |
| Coax Type | RG11 |
| Other Part Numbers | 3094A F2V, 3094A F2V100, 3094A F2V250, 3094A F2V500, 3094A F2V1000 |
| Priced Per | FT |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
