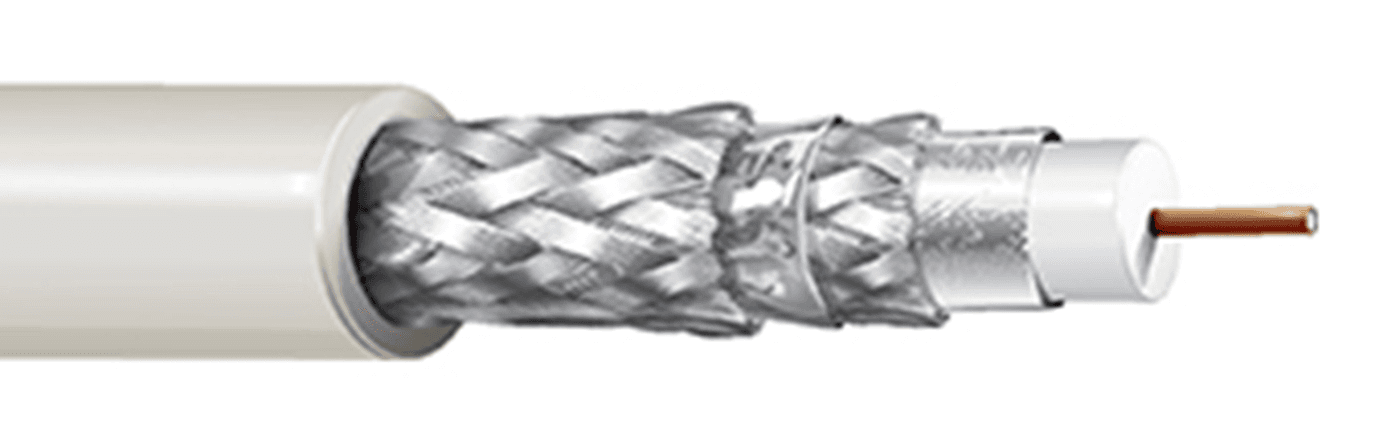

Belden 3095A F2V, Coax ControlBus Quad Shielded Coax 14 AWG FFEP
SKU:Belden 3095A F2V
● In stock
Description
Belden 3095A F2V is a ControlBus™ coax RG11 cable designed for harsh environment industrial networks where signal integrity and extended run length matter, including factory automation, ControlNet™, and Modbus II. It uses a 14 AWG solid BCCS - Bare Copper Covered Steel conductor with FEP - Fluorinated Ethylene Propylene (Foam) insulation and a PVDF - Polyvinylidene Fluoride outer jacket. For noise rejection, it features an overall Duofoil® + aluminum braid quad-shield design (100%/60%/100%/40% coverage layers). It is CMP plenum rated and has a UL Voltage Rating of 300 V RMS.
Belden 3095A F2V Key Features
- ControlBus™ coax RG11 cable for industrial network signal transmission in harsh environment installations.
- 14 AWG solid BCCS - Bare Copper Covered Steel conductor.
- FEP - Fluorinated Ethylene Propylene (Foam) insulation.
- Overall quad-shield: Duofoil® tape and aluminum braid layers with 100%/60%/100%/40% coverage.
- PVDF - Polyvinylidene Fluoride outer jacket.
- CMP plenum rated; Plenum (Y/N): Yes.
Belden 3095A F2V Applications
- Designed for harsh environment industrial network installations where maintaining signal integrity and supporting extended run length are important.
- In factory automation networks, it supports reliable communications in industrial settings.
- For ControlNet™ network deployments, it supports network connectivity.
- For Modbus II network deployments, it supports network connectivity.
- Specified for industrial coax applications.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Coax construction | Coax RG11 |
| RG type | 11 |
| Number of coax | 1 |
| Number of Conductors | 1 |
| Conductor nominal diameter | 0.064 in |
| Insulation nominal diameter | 0.28 in |
| Jacket nominal diameter | 0.387 in |
| Nominal characteristic impedance | 100 Ohm |
| Nominal characteristic tolerance | ± 3 Ohm |
| Nom. capacitance (Conductor to Shield) | 16.5 pF/ft |
| Nominal inductance | 0.097 µH/ft |
| Nominal delay | 1.2 ns/ft |
| Nominal velocity of propagation (VP) [%] | 82% |
| UL Voltage Rating | 300 V RMS |
| Nominal conductor DCR | 11 Ohm/1000ft |
| Nominal outer shield DCR | 3.9 Ohm/1000ft |
| Outer conductor DCR | 3.9 Ohm/1000ft |
| Insertion loss @ 1 MHz | 0.17 dB/100ft |
| Insertion loss @ 2 MHz | 0.22 dB/100ft |
| Insertion loss 5 MHz | 0.28 dB/100ft |
| Insertion loss @ 10 MHz | 0.4 dB/100ft |
| Insertion loss @ 20 MHz | 0.6 dB/100ft |
| Insertion loss @ 50 MHz | 1.2 dB/100ft |
| Insertion loss @ 100 MHz | 1.7 dB/100ft |
| Insertion loss @ 200 MHz | 2.5 dB/100ft |
| Insertion loss @ 300 MHz | 3.04 dB/100ft |
| Insertion loss @ 400 MHz | 3.5 dB/100ft |
| Phase delay distortion f/B 0.5 | -0.6 |
| Phase delay distortion f/B 1 | -0.46 |
| Phase delay distortion f/B 1.5 | 0 |
| Phase delay distortion f/B 2 | 0.17 |
| Phase delay distortion f/B 2.5 | 0.3 |
| Structural return loss @ 1 MHz | 20 dB |
| Tilt 5 to 10 MHz | .42 dB/100 M |
| Tilt 10 to 20 MHz | .58 dB/100 M |
| SLR | SLR Min. 20dB (5MHz - 50MHz) |
| UL Temperature Rating | 150°C |
| Operating Temperature Range | -20°C To +150°C |
| Bulk cable weight | 68 lbs/1000ft |
| Maximum recommended pulling tension | 309 lbs |
| Minimum minor axis bend radius | 4 in |
| NEC articles | Article 800 |
| NEC / UL compliance | CMP |
| CEC / C(UL) compliance | CMP |
| UL flammability | NFPA 262 |
| CSA flammability | FT6 |
| EU Directive 2000/53/EC (ELV) | Yes |
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment) | Yes |
| EU directive compliance | EU Directive 2003/11/EC (BFR) |
| MII Order #39 (China RoHS) | Yes |
| Suitability - burial | Yes |
| Suitability - Outdoor | Yes |
| Non-Plenum number | 3094A |
| Item Type | Belden Coaxial Cable RG11 |
| Other Part Numbers | 3095A F2V, 3095A F2V100, 3095A F2V250, 3095A F2V500, 3095A F2V1000 |
| Priced Per | FT |
