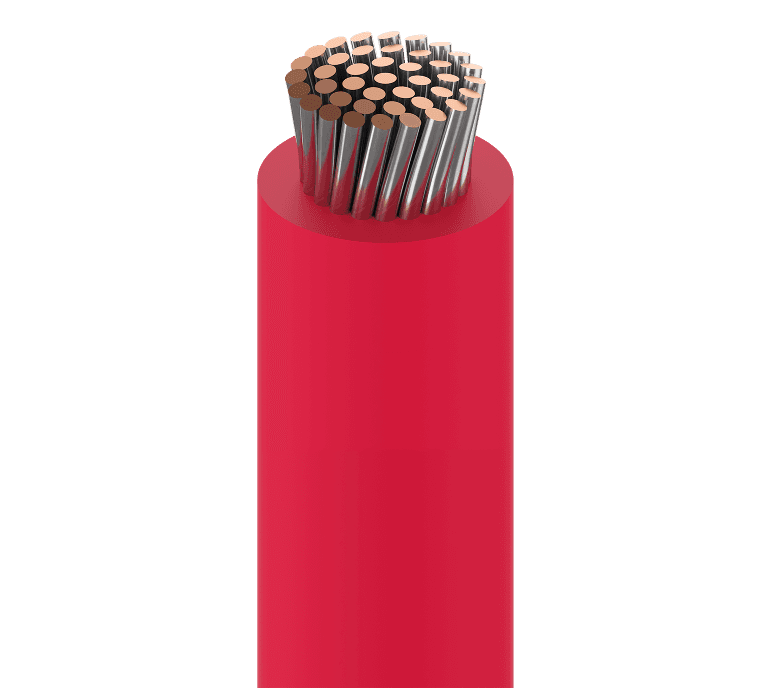

Belden 31514 010, Hook Up Wire 1C 14 AWG Neoprene Insulation
Description
Belden 31514 010 is a low temp rubber lead wire with a 1-conductor 14 AWG (41x30) TC - Tinned Copper conductor and Neoprene insulation. It is rated 600 V (AWM 3046) and 90°C, with an operating temperature of -30°C to +90°C. This wire is designed for internal wiring of appliances, oil resistance applications, and motor lead systems.
Applications
- Supports internal wiring of appliances where 600 V (AWM 3046) and 90°C are required.
- Works for oil resistance applications in equipment and systems that specify this wire type.
- Meets motor lead system needs where a low temp rubber lead wire is specified.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of Conductors | 1 |
| Conductor size | 14 AWG |
| Conductor stranding | 41x30 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | Neoprene |
| Nom. thickness | 0.047 in (1.2 mm) |
| Nom. insulation diameter | 0.169 in (4.29 mm) |
| Overall cable diameter (nominal) | 0.169 in (4.29 mm) |
| Bulk cable weight | 26 lbs/1000ft |
| UL Voltage Rating | 600 V (AWM 3046) |
| Nom. conductor DCR | 2.82 Ohm/1000ft |
| Max. current | 40 Amps per Conductor at 30ºC |
| UL temperature | 90°C |
| Operating temperature | -30°C To +90°C |
| Bend radius (stationary min.) | 1.69 in (42.9 mm) |
| Bend radius (installation min.) | 1.69 in (42.9 mm) |
| Max Pull Tension | 53.3 lbs (24.2 kg) |
| Environmental suitability | Indoor, Outdoor |
| Flammability / reaction to fire | Horizontal flame |
| UL style | UL TYPE AWM, STYLE 3046 |
| AWM compliance | AWM 3046 |
| CEC / C(UL) compliance | CL-903 |
| Sustainability | CA Prop 65 |
| European directive compliance | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
