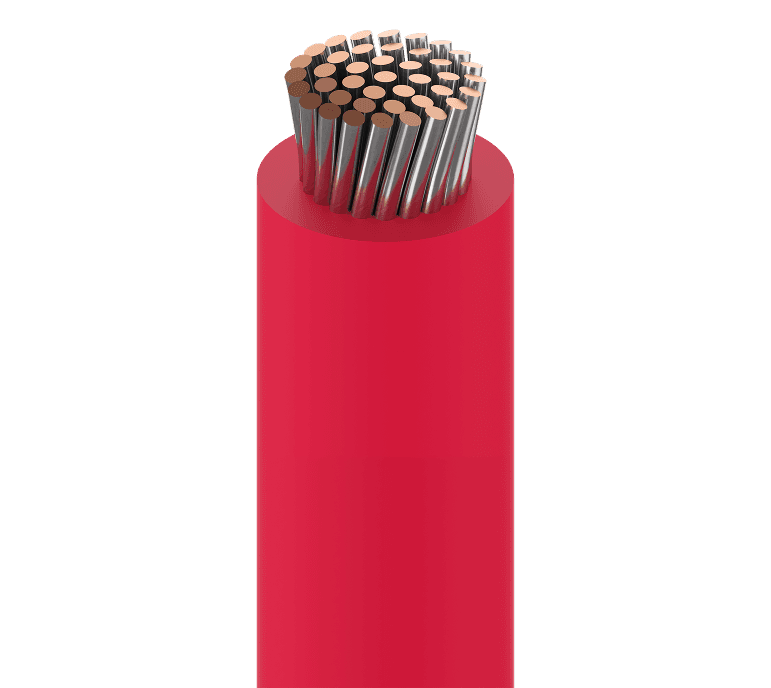

Belden 34414 010, Hook Up Wire 1C 14 AWG Tinned Copper CSPE
SKU:Belden 34414 010
● In stock
Description
Belden 34414 010 is a low temp rubber lead wire with 1 conductor of 14 AWG (41x30) TC - Tinned Copper and CSPE - Chlorosulphonated Polyethylene insulation. It is rated 600 V (AWM 3191) and 105°C, with an operating temperature range of -30°C To +105°C. This wire is not shielded and features a 1.7 in (43 mm) minimum bend radius with a nominal overall diameter of 0.170 in (4.32 mm) for practical routing in motor lead and appliance wiring.
Key Features
- 600 V (AWM 3191) UL voltage rating for specified electrical installations.
- 105°C UL temperature rating with a -30°C To +105°C operating temperature range.
- CSPE - Chlorosulphonated Polyethylene insulation material.
- 1.7 in (43 mm) stationary and installation minimum bend radius for easier handling.
- Not Shielded construction.
Applications
- Supports Class 130(B) motor lead systems where the specified temperature and voltage ratings are required.
- Commonly used for internal wiring of appliances where flexible lead wire is needed for routing and termination.
- Works well in oil resistance applications in environments identified as Oil Resistance.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of Conductors | 1 |
| Conductor size | 14 AWG |
| Conductor stranding | 41x30 |
| Conductor Material | TC - Tinned Copper |
| Nom. insulation thickness | 0.048 in (1.2 mm) |
| Nom. insulation diameter | 0.17 in (4.3 mm) |
| Overall cable diameter (nominal) | 0.170 in (4.32 mm) |
| Insulation Color | Black |
| Bulk cable weight | 26 lbs/1000ft |
| Nom. conductor DCR | 2.73 Ohm/1000ft |
| Max. current | 46.4 Amps per conductor at 30ºC |
| Max Pull Tension | 53.3 lbs (24.2 kg) |
| Flammability / reaction to fire | Horizontal flame |
| Environmental suitability | Indoor, Outdoor, Oil Resistance |
| CEC / C(UL) compliance | CL-1053 |
| Sustainability | CA Prop 65 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
