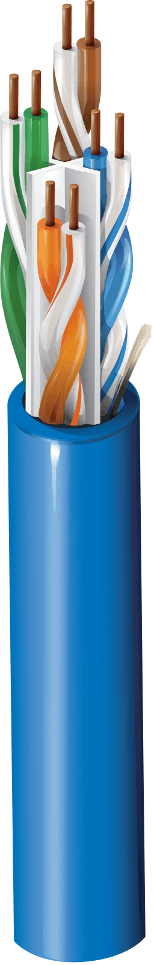

Belden 3612 006, 23 4P UTP CMR Solid BC CAT6 PVC Blue Jacket
SKU:Belden 3612 006
$490.00
● In stock
× 1,000 ft = Total: 1,000 ft
Description
Belden 3612 006 is a Category 6+ premium premise horizontal cable (400MHz) built with 4 pairs of 23 AWG solid bare copper conductors in a U/UTP construction. It is designed for indoor riser pathways and uses a PVC jacket. This cable is rated riser-CMR with UL 1666 Riser and FT4 flammability performance, and it supports Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, plus PoE++, PoE+, and PoE applications.
Belden 3612 006 Key Features
- Category 6+ premium premise horizontal cable (400MHz) for balanced data transmission.
- 4 pairs of 23 AWG solid bare copper conductors in a U/UTP construction.
- PVC jacket for indoor riser pathways.
- Riser-CMR rating with UL 1666 Riser and FT4 flammability performance.
- Supports Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, and PoE++, PoE+, and PoE applications.
Belden 3612 006 Applications
- Intended for premise horizontal cable installations.
- Supports Ethernet 1000BASE-T connectivity in structured cabling environments.
- Use it with Ethernet 100BASE-TX networks where this standard is required.
- It is compatible with Ethernet 10BASE-T connections for legacy network needs.
- Enables PoE++, PoE+, and PoE to deliver power and data over the same cabling.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Shield Type | U/UTP |
| Number of pairs | 4 |
| Conductor size | 23 AWG |
| Conductor stranding | Solid |
| Conductor Material | BC - Bare Copper |
| Insulation Material | PO - Polyolefin |
| Color Code | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Color | Blue |
| Separator | Center Member (Patented X-Spline®) |
| Ripcord | Yes |
| Plenum number | 3613 |
| Overall cable diameter (nominal) | 0.231 in (5.87 mm) |
| Max. Conductor DCR | 77 Ohm/km (23 Ohm/1000ft) |
| Max. capacitance unbalance | 330 pF/100m |
| UL Voltage Rating | 300 V (CMR) |
| Delay (100 MHz) | Max. delay 537.6 ns/100m; Max. delay skew 35 ns/100m; Nom. velocity of prop. 70%; Typical delay skew 35 ns/100m |
| High frequency performance | Frequency [MHz], Max. insertion loss (attenuation), Min. NEXT [dB], Min. PSNEXT [dB], Min. ACR [dB], Min. PSACR [dB], Min. ACRF (ELFEXT) [dB], Min. PSACRF (PSELFEXT) [dB], Min. RL (Return Loss) [dB], Max./Min. input impedance (unFitted) [Ohm] |
| UL temperature | 75°C |
| Operating temperature | -20°C To +75°C |
| Installation temperature | 0°C To +50°C |
| Storage temperature | -20°C To +75°C |
| Bend Radius | Stationary min. 1.0 in (25 mm); Installation min. 2.5 in (64 mm) |
| Max Pull Tension | 25 lbs (11 kg) |
| Bulk cable weight | 25 lbs/1000ft |
| Environmental suitability | Riser, Indoor |
| Flammability / reaction to fire | UL 1666 Riser, FT4, IEC 60332-1-2 |
| NEC / UL compliance | Article 800, CMR |
| CEC / C(UL) compliance | CMR |
| CPR compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| TIA/EIA compliance | ANSI/TIA-568.2-D Category 6 |
| ISO/IEC compliance | ISO/IEC 11801-1, IEC 61156-5 |
| IEEE compliance | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| ICEA compliance | S-116-732 |
| NEMA Compliance | ANSI/NEMA WC-66 |
| CENELEC compliance | Segregation class according EN50174-2 = a |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Third party performance verification | Category 6 |
| Sustainability | Product Lens™, Environmental Product Declaration (EPD) Available |
| Patent | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents. |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
