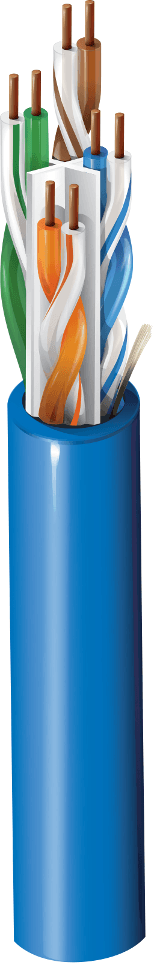

Belden 3612 006A, Enhanced Category 6 Cable 4 pair U/UTP CMR
SKU:Belden 3612 006A
● In stock
× 1,000 ft = Total: 1,000 ft
Description
Belden 3612 006A is a Category 6+ premium premise horizontal cable (400MHz) designed for Ethernet networks and PoE delivery. It features a 4 pair 23 AWG solid BC - bare copper construction in a U/UTP design. A patented X-Spline® center member and ripcord help maintain consistent pair separation and support easier pulls. This Riser-CMR cable has a PVC - Polyvinyl Chloride jacket in Blue and is intended for Riser, Indoor installations.
Belden 3612 006A Key Features
- Category 6+ premium premise horizontal cable (400MHz) for structured cabling installations.
- 4 pair construction with 23 AWG solid BC - bare copper conductors in a U/UTP design.
- Patented X-Spline® center member and ripcord help maintain pair separation and support easier pulls.
- Riser-CMR jacketed cable with PVC - Polyvinyl Chloride jacket material in Blue.
Belden 3612 006A Applications
- Designed for premise horizontal cable runs in structured cabling layouts.
- Enables Ethernet 10BASE-T connectivity where this standard is required.
- Provides support for Ethernet 100BASE-TX network links.
- Handles Ethernet 1000BASE-T connections for gigabit Ethernet networks.
- Suitable for PoE, PoE+, PoE++ deployments where power is delivered over Ethernet cabling.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Overall cable diameter (nominal) | 0.231 in (5.87 mm) |
| Insulation Material | PO - Polyolefin |
| Color Code | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
| Bulk cable weight | 25 lbs/1000ft |
| Max. Conductor DCR | 77 Ohm/km (23 Ohm/1000ft) |
| Max. capacitance unbalance | 330 pF/100m |
| UL Voltage Rating | 300 V (CMR) |
| Frequency | 100 MHz |
| Max. delay | 537.6 ns/100m |
| Max. delay skew | 35 ns/100m |
| Nom. velocity of prop. | 70% |
| Typical delay skew | 35 ns/100m |
| UL temperature | 75°C |
| Operating temperature | -20°C To +75°C |
| Installation temperature | 0°C To +50°C |
| Storage temperature | -20°C To +75°C |
| Bend radius (stationary min.) | 1.0 in (25 mm) |
| Bend radius (installation min.) | 2.5 in (64 mm) |
| Max Pull Tension | 25 lbs (11 kg) |
| Environmental suitability | Riser, Indoor |
| Flammability / reaction to fire | UL 1666 Riser, FT4, IEC 60332-1-2 |
| NEC / UL compliance | Article 800, CMR |
| CEC / C(UL) compliance | CMR |
| CPR compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| TIA/EIA compliance | ANSI/TIA-568.2-D Category 6 |
| ISO/IEC compliance | ISO/IEC 11801-1, IEC 61156-5 |
| IEEE compliance | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| ICEA compliance | S-116-732 |
| NEMA Compliance | ANSI/NEMA WC-66 |
| CENELEC compliance | Segregation class according EN50174-2 = a |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Sustainability | Product Lens™, Environmental Product Declaration (EPD) Available |
| Third party performance verification | Category 6 |
| Plenum number | 3613 |
| Patent information | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents . |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
