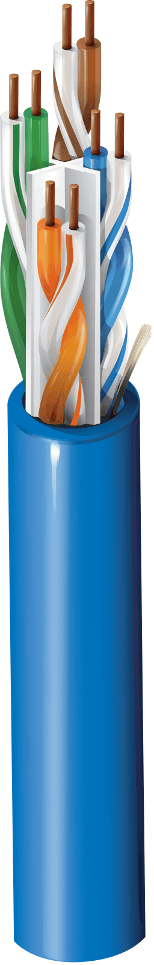

Belden 3613 005, Enhanced Category 6 Cable 4 pair U/UTP CMP PVC
SKU:Belden 3613 005
● In stock
× 1,000 ft = Total: 1,000 ft
Description
Belden 3613 005 is a Category 6 premium premise horizontal cable (400MHz) for Ethernet networks and power delivery. It features 4 pair 23 AWG solid bare copper conductors in a U/UTP (unshielded twisted pair) design. For plenum indoor spaces, it uses a Plenum-CMP Flamarrest® PVC-LS jacket and includes a patented X-Spline® center member plus a ripcord for easier installation. It meets NFPA 262 / UL 910 (Plenum) and ANSI/TIA-568.2-D Category 6.
Belden 3613 005 Key Features
- Category 6 premium premise horizontal cable (400MHz) for high-performance Ethernet networks and power delivery.
- 4 pair 23 AWG solid bare copper conductors in a U/UTP (unshielded twisted pair) construction.
- Plenum-CMP Flamarrest® PVC-LS jacket for plenum, indoor environments.
- Patented X-Spline® center member and ripcord for easier installation.
- Meets NFPA 262 / UL 910 (Plenum) and ANSI/TIA-568.2-D Category 6.
Belden 3613 005 Applications
- Intended for premise horizontal cable installations where structured cabling is routed through a building.
- Supports Ethernet 1000BASE-T links in network infrastructure requiring gigabit connectivity.
- Works with Ethernet 100BASE-TX connections for Fast Ethernet network segments.
- Provides Ethernet 10BASE-T connectivity where 10 Mbps Ethernet is used.
- Enables PoE++, PoE+, and PoE deployments where power and data are delivered over the same Ethernet cabling.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Data category | Category 6 |
| Overall cable diameter (nominal) | 0.238 in (6.05 mm) |
| Insulation Material | PO+FEP - Polyolefin + Fluorinated Ethylene Propylene |
| Color Code | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Color | Green |
| UL Voltage Rating | 300 V (CMP), 300 V (CL3P) |
| Bulk cable weight | 28 lbs/1000ft |
| Non-Plenum number | 3612 |
| Max. Conductor DCR | 77 Ohm/km (23 Ohm/1000ft) |
| Max. capacitance unbalance | 330 pF/100m |
| Max. Delay (100 MHz) | 537.6 ns/100m |
| Max. delay skew (100 MHz) | 35 ns/100m |
| Nom. velocity of prop. (100 MHz) | 70% |
| Typical delay skew (100 MHz) | 35 ns/100m |
| Third party performance verification | Category 6 |
| UL temperature | 90°C |
| Operating temperature | -20°C To +75°C |
| Installation temperature | 0°C To +50°C |
| Storage temperature | -20°C To +75°C |
| Bend radius (stationary min.) | 1.0 in (25 mm) |
| Bend radius (installation min.) | 2.5 in (64 mm) |
| Max Pull Tension | 25 lbs (11 kg) |
| Flammability / reaction to fire | NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| NEC / UL compliance | Article 800, CMP, CMP-LP (0.6A), CL3P-LP (0.6A) |
| CEC / C(UL) compliance | CMP |
| ICEA compliance | S-116-732 |
| IEEE compliance | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| NEMA Compliance | ANSI/NEMA WC-66 |
| TIA/EIA compliance | ANSI/TIA-568.2-D Category 6 |
| ISO/IEC compliance | ISO/IEC 11801-1, IEC 61156-5 |
| CENELEC compliance | Segregation class according EN50174-2 = a |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Sustainability | Product Lens™, Environmental Product Declaration (EPD) Available |
| Patent notice | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents. |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
