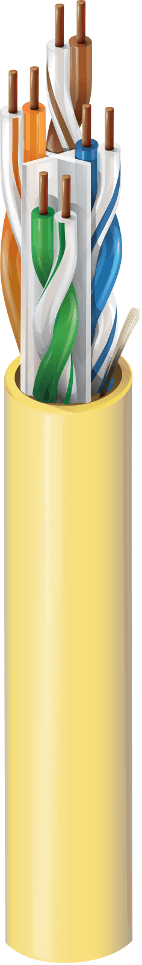

Belden 3633 009A, Enhanced Category 6 4 Pair U UTP CMP White
Description
Belden 3633 009A is a Category 6 premium premise horizontal data cable rated to 400MHz. It features 4 bonded-pairs of 23 AWG solid bare copper conductors in a U/UTP construction with FEP insulation and a Flamarrest® PVC-LS jacket. Designed for plenum, indoor environments, it includes a patented X-Spline® center member to help maintain cable geometry and support installation reliability. It is suitable for Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T, and PoE, PoE+, and PoE++.
Belden 3633 009A Key Features
- Category 6 data cable rated to 400MHz for high-performance Ethernet networks and PoE delivery.
- U/UTP construction with 4 bonded-pairs to help support consistent electrical performance.
- 23 AWG solid bare copper conductors with FEP insulation.
- Flamarrest® PVC-LS jacket for plenum, indoor installations.
- Patented X-Spline® center member and ripcord to help maintain cable geometry and support installation reliability.
Belden 3633 009A Applications
- Use it for premise horizontal cable runs where consistent network cabling performance is required.
- Deploy it for Ethernet 10BASE-T connections in structured cabling environments.
- Implement it for Ethernet 100BASE-TX links for network connectivity.
- Choose it for Ethernet 1000BASE-T gigabit network connections.
- Enable PoE delivery to power compatible devices over the network cabling.
- Support PoE+ for powered network endpoints.
- Support PoE++ for higher-power PoE implementations.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Cable type | Data |
| Number of pairs | 4 |
| Color Code | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket trade name | Flamarrest® |
| Jacket Color | White |
| Overall cable diameter (nominal) | 0.230 in (5.84 mm) |
| Bulk cable weight | 31 lbs/1000ft |
| Max. Conductor DCR | 77 Ohm/km (23 Ohm/1000ft) |
| Max. capacitance unbalance | 90 pF/100m |
| Delay (100 MHz) max. | 537.6 ns/100m |
| Delay skew (100 MHz) max. | 35 ns/100m |
| Delay skew (100 MHz) typical | 30 ns/100m |
| Nom. velocity of prop. | 72% |
| UL Voltage Rating | 300 V (CMP), 300 V (CL3P) |
| UL temperature | 105°C |
| Operating temperature | -20°C To +75°C |
| Installation temperature | 0°C To +50°C |
| Storage temperature | -20°C To +75°C |
| Bend radius (stationary min.) | 0.5 in (13 mm) |
| Bend radius (installation min.) | 2.5 in (64 mm) |
| Max Pull Tension | 40 lbs (18 kg) |
| Fire rating | Plenum-CMP |
| Flammability / reaction to fire | NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2 |
| NEC / UL compliance | Article 800, CMP, CMP-LP (0.6A), CL3P-LP (0.6A) |
| CEC / C(UL) compliance | CMP |
| CPR compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| TIA/EIA compliance | ANSI/TIA-568.2-D Category 6 |
| ISO/IEC compliance | ISO/IEC 11801-1, IEC 61156-5 |
| IEEE compliance | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| ICEA compliance | S-116-732 |
| NEMA Compliance | ANSI/NEMA WC-66 |
| CENELEC compliance | Segregation class according EN50174-2 = a |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Sustainability | Product Lens™, Environmental Product Declaration (EPD) Available |
| Third party performance verification | Category 6 |
| Non-Plenum number | 3632 |
| Patent | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents . |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
