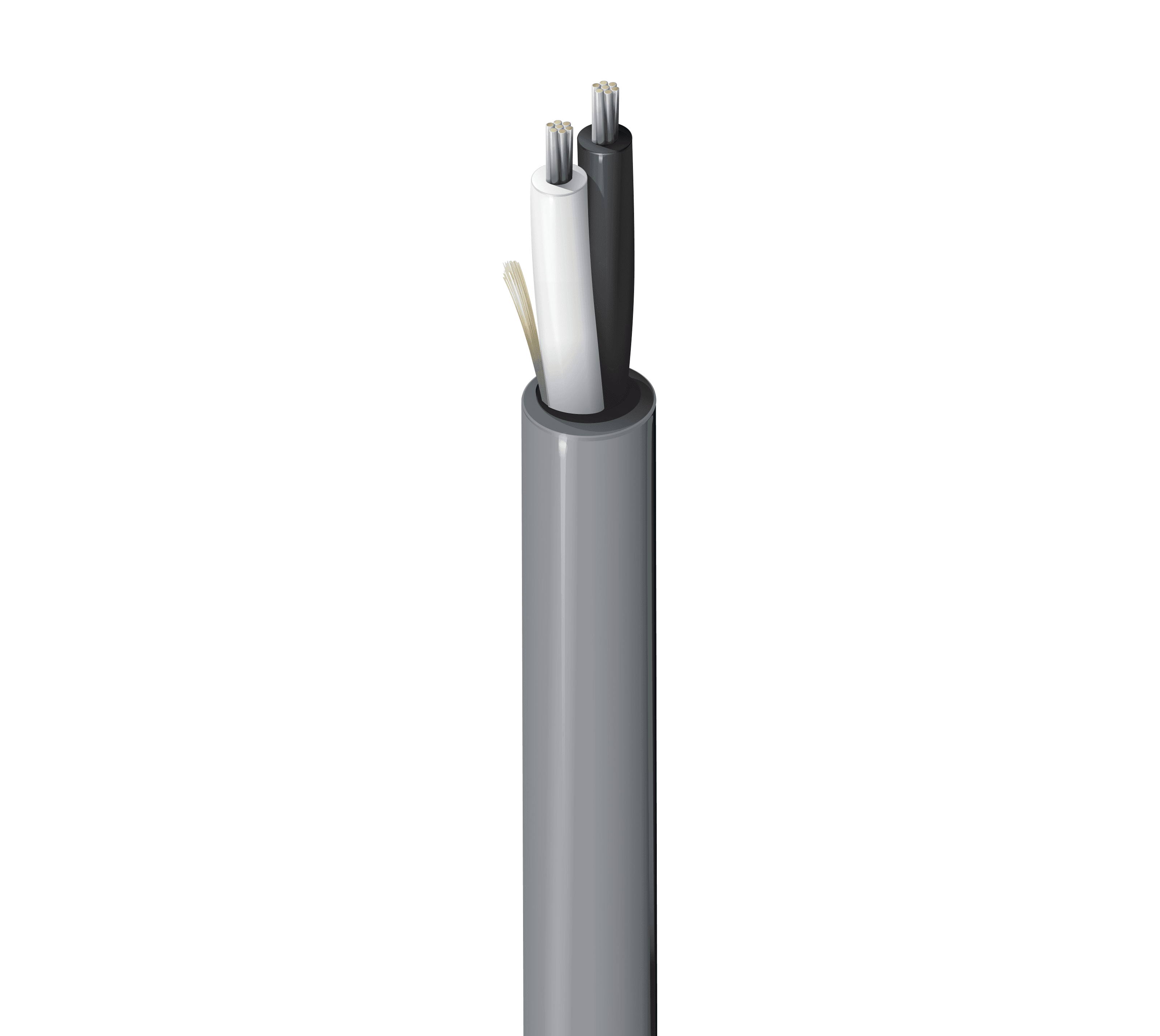

Belden 5000UE 010, Multi Conductor Audio Cable 2C 12 AWG FRPVC Black
SKU:Belden 5000UE 010
$1.25/ FT
● In stock
Description
Belden 5000UE 010 is a 2-conductor 12 AWG security and commercial audio cable for Indoor - Riser and indoor installations. It features 2-12 AWG stranded bare copper conductors with PP - Polypropylene insulation and a PVC - Polyvinyl Chloride jacket. This cable is rated 300 V and supports a max. current of 30 Amps per Conductor @ 30°C. A ripcord is included to help with pulls and stripping.
Key Features
- 2-conductor 12 AWG construction for security and commercial audio wiring.
- 2-12 AWG stranded bare copper conductors with 19x25 stranding.
- PP - Polypropylene insulation with color code: Black, White.
- PVC - Polyvinyl Chloride jacket with ripcord: Yes.
- UL voltage rating: 300 V.
- Max. current: 30 Amps per Conductor @ 30°C.
- Environmental suitability: Indoor - Riser, Indoor.
- Flammability / reaction to fire: UL 1666 Riser, IEEE 1202 FT4, IEC 60332-1-2.
- NEC / UL compliance: Article 725, Article 760, CL3R, FPLR.
Applications
- Used for security system wiring in Indoor - Riser and indoor installations.
- Suitable for intercom/PA runs where a 2-conductor audio/control cable is needed.
- Works for audio/speaker runs in security and commercial audio setups.
- Supports fire alarm systems (Red only).
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Nom. conductor DCR | 1.6 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 24 pF/ft (79 pF/m) |
| Nom. inductance | 0.15 µH/ft (0.49 µH/m) |
| Conductor Material | BC - Bare Copper |
| Insulation thickness (nom.) | 0.011 in (0.28 mm) |
| Insulation diameter (nom.) | 0.113 in (2.87 mm) |
| Outer shield | No Shield |
| Jacket thickness (nom.) | 0.017 in (0.43 mm) |
| Cable diameter (nom.) | 0.26 in (6.6 mm) |
| Bulk cable weight | 51 lbs/1000ft |
| Footage marking | Sequential footage marking every two feet |
| Plenum number | 6000UE |
| Operating | -20°C to +75°C |
| UL temperature | 75°C |
| Bend radius (stationary min.) | 2.6 in (66 mm) |
| Bend radius (installation min.) | 2.6 in (66 mm) |
| Max Pull Tension | 152 lbs (68.9 kg) |
| CPR Euroclass | Eca |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
