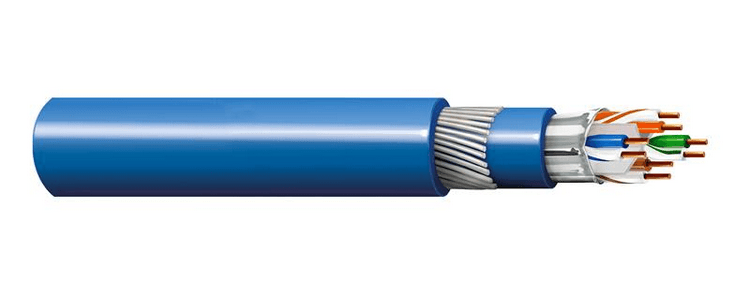

Belden 50106AFLS, Industrial Ethernet CAT6A F/UTP LSZH SWA Outdoor Cable

Part Number: 50106AFLS

Belden 50106AFLS is a ruggedized industrial Ethernet Category 6A (CAT6A) cable engineered for outdoor, sunlight- and UV-exposed environments. It is built with 4 pairs of 23 AWG solid bare copper conductors in an F/UTP construction with a PET + Al-Mylar (aluminium facing outside) overall tape shield and a 26 AWG solid tinned copper drainwire. A steel wire armor (SWA) layer between dual Low Smoke Zero Halogen (LSZH) jackets adds mechanical protection and rodent resistance, making it suited for harsh industrial routing. It supports Industrial Ethernet links between switches, IP controllers, media converters, distributed control systems, and programmable logic controllers.

Belden 50106AFLS Key Features

• Category 6A industrial Ethernet construction for high-performance network cabling.
• 4 pairs of 23 AWG solid bare copper conductors.
• F/UTP design with an overall PET + Al-Mylar bi-laminate (Alum+Poly) tape shield and 26 AWG solid TC drainwire.
• Steel Wire Armor (SWA) for crush, impact, and rodent protection.
• Dual LSZH (Low Smoke Zero Halogen, flame retardant) inner and outer jackets.
• Outdoor rated with sunlight and UV resistance.

Belden 50106AFLS Technical Specs

Construction & Materials

Data category	Category 6A
Shielding	F/UTP
Number of pairs	4
Conductor size	23 AWG
Conductor stranding	Solid
Conductor material	BC - Bare Copper
Insulation material	PE - Polyethylene
Nom. insulation diameter	1.14 mm (0.0449 in)
Color code	Blue/White, Orange/White, Green/White, Brown/White
Shield type	Overall tape, Bi-Laminate (Alum+Poly)
Drainwire type	26 AWG (Solid) TC
Inner jacket material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Inner jacket nom. diameter	9.1 mm (0.36 in)
Armor type	SWA - Steel Wire Armor
Armor wire diameter	0.8 mm (0.031 in)
Outer jacket material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Overall cable diameter (nominal)	12.50 mm (0.4921 in)

Performance & Electrical Characteristics

UL voltage rating	72 V DC
Max. conductor DCR	95 Ohm/km @20°C
Max. mutual capacitance	56 pF/m (17 pF/ft)
Max. capacitance unbalance	1,600 pF/km
Transfer impedance class	Grade 2

Environmental & Mechanical Ratings

Operating temperature	-30°C to +60°C
Environmental suitability	Outdoor, Sunlight Resistance, UV Resistance

Compliance & Certifications

Flammability / reaction to fire	IEC 60332-1-2, IEC 60332-3-22
ISO/IEC compliance	IEC 61156-5, ISO/IEC 11801 ed. 2.0
Halogen free	IEC 60754-1 (Halogen amount = 5 mg/g), IEC 60754-2 (max. conductivity = 10 µS/mm, min. pH = 4.3)

Belden 50106AFLS Applications

• Interconnecting Industrial Ethernet switches, IP controllers, and media converters.
• Distributed control systems (DCS) and programmable logic controller (PLC) data links.
• Transmitting industrial protocol data signals in outdoor and harsh environments.
• Ruggedized CAT6A network runs requiring armored, UV-resistant cable.

Available Variants

50106AFLS 010305M	Black, 305 m
50106AFLS 009305M	White, 305 m
