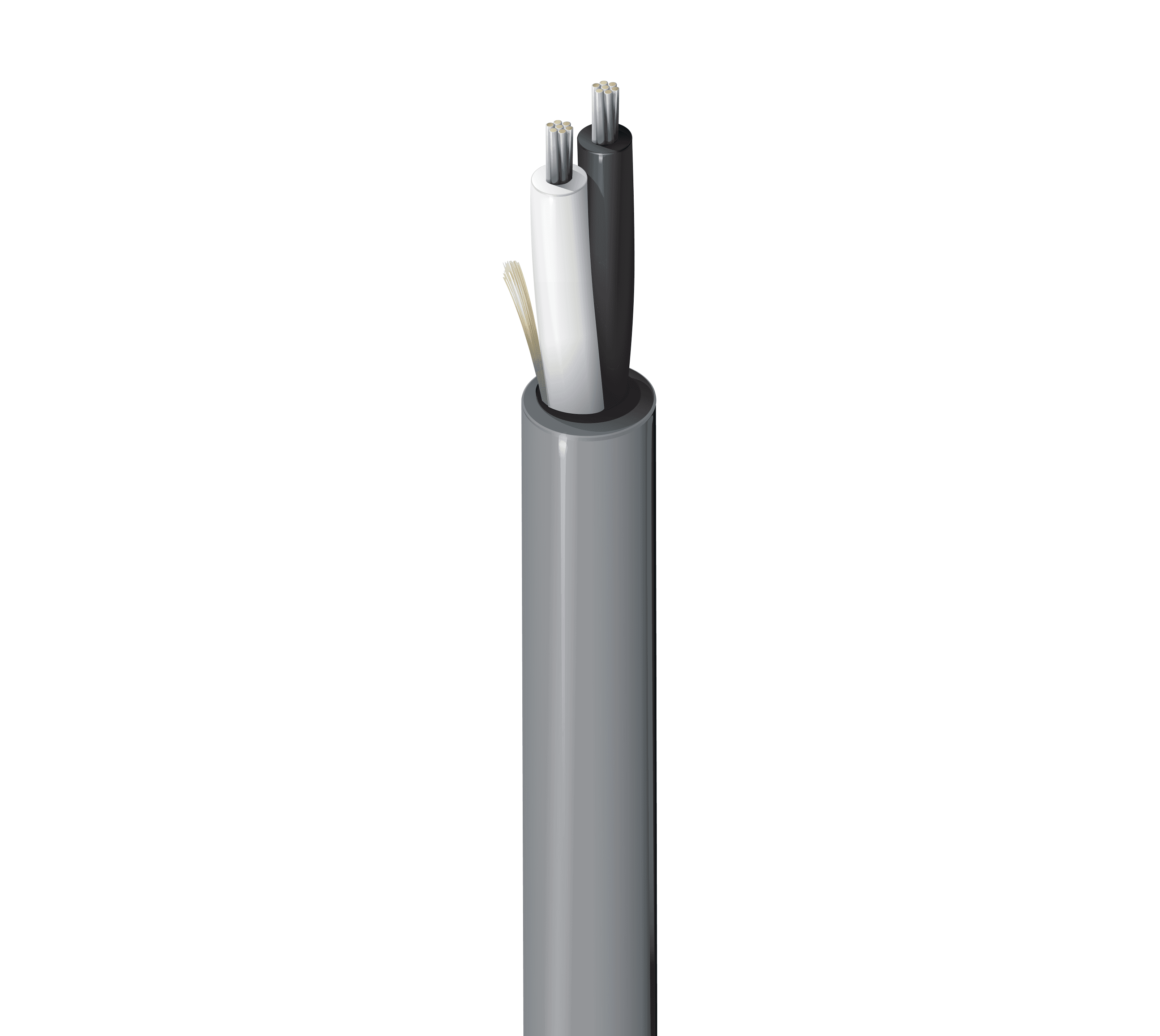

Belden 5100UE 008, Multi Conductor 2C 14 AWG FRPVC Gray
SKU:Belden 5100UE 008
● In stock
Description
Belden 5100UE 008 is a security & commercial audio cable for indoor riser installations, designed for intercom/PA systems, sound/audio systems, and Fire Alarm applications (for color Red only)(Dual Rated). It features 2 14 AWG stranded bare copper conductors with polypropylene insulation and a PVC jacket with ripcord. The cable meets Riser-CL3R-FPLR requirements and carries a 300 V (CL3R, FPLR) UL voltage rating. Sequential footage marking every two feet helps support efficient pulls and accurate cut lengths.
Key Features
- 2 14 AWG stranded bare copper conductors (19x26) for security & commercial audio wiring.
- PP - Polypropylene insulation with black, white color code.
- PVC - Polyvinyl Chloride jacket with ripcord for easier stripping.
- UL voltage rating: 300 V (CL3R, FPLR).
- Sequential footage marking every two feet for cut-length accuracy.
Applications
- Use in intercom/PA systems where indoor riser routing is required.
- Install in sound/audio systems that need consistent electrical performance in indoor installations.
- Specify for Fire Alarm applications (For color Red only)(Dual Rated) in indoor riser environments.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of Conductors | 2 |
| Conductor size | 14 AWG |
| Stranding | 19x26 |
| Conductor Material | BC - Bare Copper |
| Insulation Material | PP - Polypropylene |
| Nom. thickness | 0.011 in (0.28 mm) |
| Nom. insulation diameter | 0.092 in (2.3 mm) |
| Color Code | Black, White |
| Jacket Material | PVC - Polyvinyl Chloride |
| Ripcord | Yes |
| Nom. jacket thickness | 0.017 in (0.43 mm) |
| Nom. diameter | 0.218 in (5.54 mm) |
| Overall cable diameter (nominal) | 0.218 in (5.54 mm) |
| Plenum number | 6100UH |
| Nom. conductor DCR | 2.53 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 22 pF/ft (72 pF/m) |
| Nom. inductance | 0.15 µH/ft (0.49 µH/m) |
| Max. current | 25 Amps per Conductor @ 30°C |
| Operating | -20°C to +75°C |
| UL temperature | 75°C |
| Bend radius (stationary min.) | 2.2 in (56 mm) |
| Bend radius (installation min.) | 2.2 in (56 mm) |
| Max Pull Tension | 95 lbs (43 kg) |
| Bulk cable weight | 33 lbs/1000ft |
| Environmental suitability | Indoor - Riser, Indoor |
| NEC / UL compliance | Article 725, Article 760, CL3R, FPLR |
| Flammability / reaction to fire | UL 1666 Riser, IEEE 1202 FT4, IEC 60332-1-2 |
| CPR Euroclass | Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
