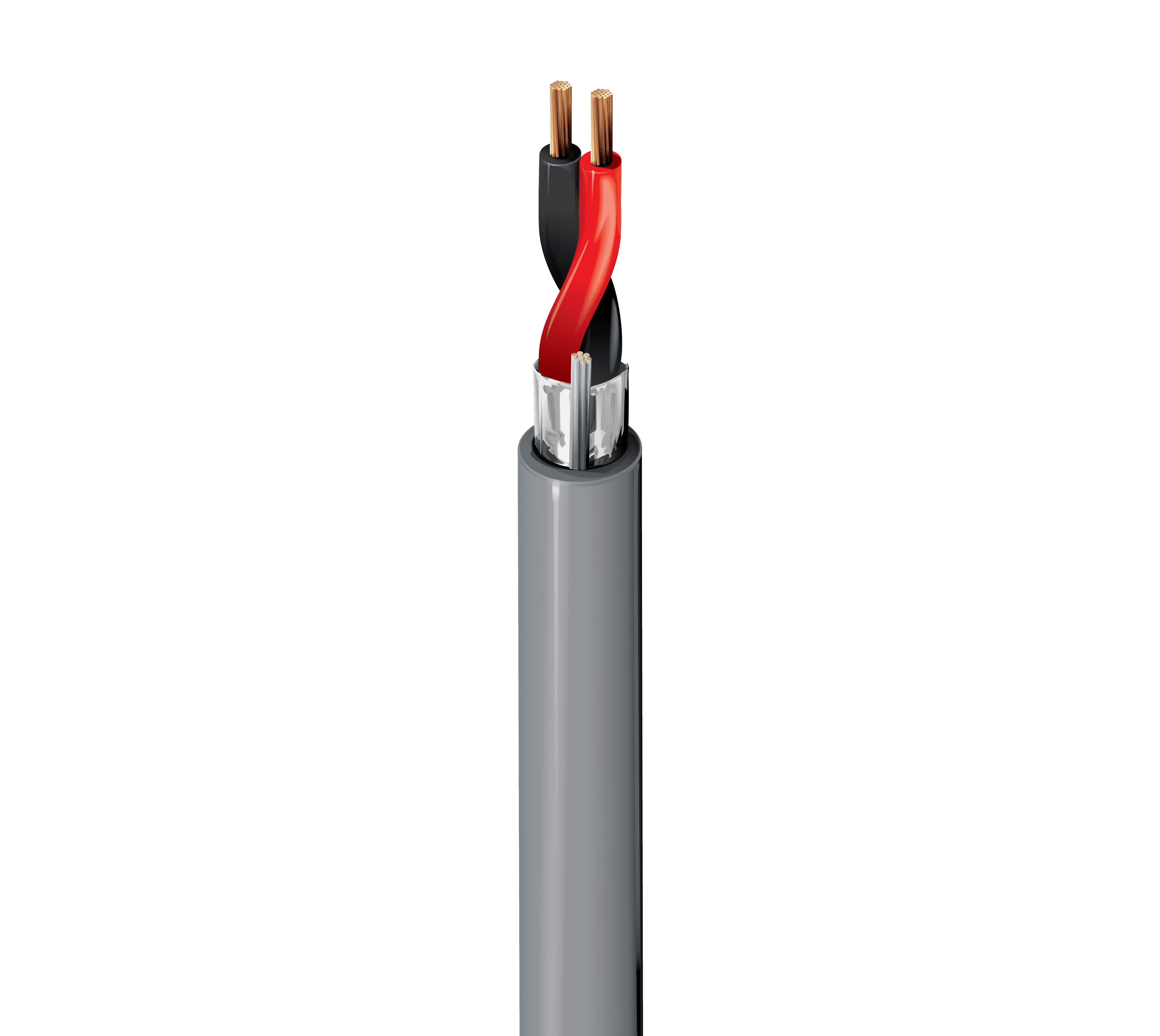

Belden 5200FE 008, Multi Conductor 2C 16 AWG FRPVC Gray
Description
Belden 5200FE 008 is a security and commercial audio cable for indoor riser (CMR) installations, built with 2 stranded 16 AWG BC - Bare Copper conductors and PP - Polypropylene insulation. It uses an overall tape shield made from Bi-Laminate (Alum+Poly) with a 24 AWG (7x32) TC drainwire to help reduce interference in noisy environments. The PVC - Polyvinyl Chloride jacket includes a ripcord and sequential footage marking every two feet for easier stripping and more accurate cut lengths. It is rated 300 V (CMR) and meets UL 1666 Riser, FT4, and IEC 60332-1-2, with CPR Euroclass: Eca.
Key Features
- 2 stranded 16 AWG conductors (19x29) using BC - Bare Copper for security and commercial audio wiring.
- Overall tape shield with 100% coverage using Bi-Laminate (Alum+Poly), plus a 24 AWG (7x32) TC drainwire.
- PVC - Polyvinyl Chloride jacket with ripcord and sequential footage marking every two feet.
- Indoor riser environmental suitability with a 300 V (CMR) rating and UL 1666 Riser, FT4, and IEC 60332-1-2 flammability / reaction to fire.
Applications
- Use in security system installations where an indoor riser (CMR) cable is required.
- Support intercom/PA wiring runs in commercial and building environments.
- Enable audio/speaker connections where a shielded construction is desired.
- Route through noisy environments where interference reduction is needed.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of Conductors | 2 |
| Conductor size | 16 AWG |
| Conductor stranding | 19x29 |
| Conductor Material | BC - Bare Copper |
| Insulation Material | PP - Polypropylene |
| Nom. thickness | 0.008 in (0.20 mm) |
| Nom. insulation diameter | 0.073 in (1.9 mm) |
| Color Code | Black, Red |
| Shield Type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire type | 24 AWG (7x32) TC |
| Shield construction | Overall Shield & drain |
| Nom. conductor DCR | 4 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 58 pF/ft (190 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 114 pF/ft (374 pF/m) |
| Nom. inductance | 0.14 µH/ft (0.46 µH/m) |
| Max. current | 6.25 Amps per Conductor @ 25°C |
| Nom. outer shield DCR | 14.4 Ohm/1000ft (47.2 Ohm/km) |
| Nom. jacket thickness | 0.017 in (0.43 mm) |
| Nom. diameter | 0.184 in (4.67 mm) |
| Bulk cable weight | 24 lbs/1000ft |
| UL temperature | 75°C |
| Operating temperature | -20°C to +75°C |
| Bend radius (stationary min.) | 1.9 in (48 mm) |
| Bend radius (installation min.) | 1.9 in (48 mm) |
| Max Pull Tension | 85.5 lbs (38.8 kg) |
| CPR compliance | CPR Euroclass: Eca |
| NEC / UL compliance | Article 800, CMR |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Plenum number | 6200FE |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
