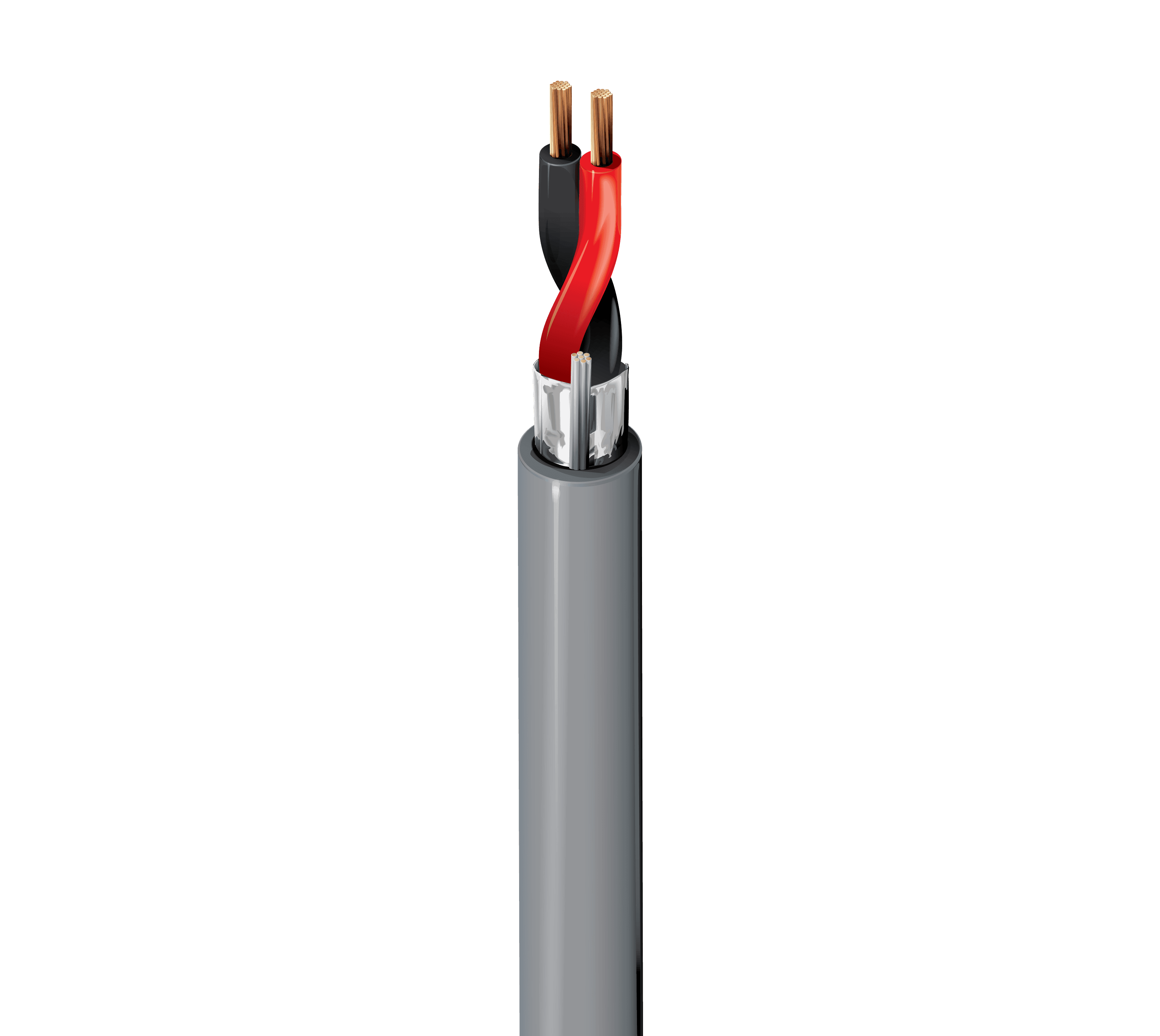

Belden 5200FE 008U, Multi Conductor Audio Cable 2C 16 AWG FRPVC Gray
Description
Belden 5200FE 008U is a security and commercial audio cable for Indoor - Riser (CMR) indoor installations. It features 2-conductor 16 AWG construction with BC - Bare Copper stranding (19x29), PP - Polypropylene insulation, and a tape shield made from Bi-Laminate (Alum+Poly) with 100% coverage plus a 24 AWG (7x32) TC drainwire. The PVC - Polyvinyl Chloride jacket includes a ripcord, and the cable is rated UL Voltage Rating: 300 V (CMR) with UL temperature: 75°C. Sequential footage marking every two feet supports easier measuring during installation.
Key Features
- Designed for Indoor - Riser, Indoor installations with NEC / UL compliance: Article 800, CMR.
- Uses 2 x 16 AWG stranded BC - Bare Copper conductors (Stranding: 19x29) for security and commercial audio wiring.
- Includes PP - Polypropylene insulation with Color code: Black, Red for clear conductor identification.
- Features a tape shield (Bi-Laminate (Alum+Poly)) with Coverage: 100% and a 24 AWG (7x32) TC drainwire to support noise rejection in noisy environments.
- Has a PVC - Polyvinyl Chloride jacket with Ripcord: Yes to help with pulls and stripping.
- Provides sequential footage marking every two feet to help measure runs during installation.
Applications
- Use in security system installations where an Indoor - Riser (CMR) cable is required.
- Support intercom/PA wiring runs in commercial or building environments.
- Choose for audio/speaker connections where shielded construction is desired.
- Install in noisy environment installations where improved noise rejection is needed.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of Conductors | 2 |
| Conductor size | 16 AWG |
| Conductor Material | BC - Bare Copper |
| Stranding | 19x29 |
| Insulation Material | PP - Polypropylene |
| Insulation nom. thickness | 0.008 in (0.20 mm) |
| Nom. insulation diameter | 0.073 in (1.9 mm) |
| Color Code | Black, Red |
| Shield Type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire type | 24 AWG (7x32) TC |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket nom. thickness | 0.017 in (0.43 mm) |
| Overall cable diameter (nominal) | 0.184 in (4.67 mm) |
| Plenum number | 6200FE |
| Max. current | 6.25 Amps per Conductor @ 25°C |
| Nom. conductor DCR | 4 Ohm/1000ft |
| Nom. outer shield DCR | 14.4 Ohm/1000ft (47.2 Ohm/km) |
| Nom. capacitance cond-to-cond | 58 pF/ft (190 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 114 pF/ft (374 pF/m) |
| Nom. inductance | 0.14 µH/ft (0.46 µH/m) |
| UL Voltage Rating | 300 V (CMR) |
| UL temperature | 75°C |
| Operating temperature | -20°C to +75°C |
| Bend radius (stationary min.) | 1.9 in (48 mm) |
| Bend radius (installation min.) | 1.9 in (48 mm) |
| Max Pull Tension | 85.5 lbs (38.8 kg) |
| Bulk cable weight | 24 lbs/1000ft |
| Environmental suitability | Indoor - Riser, Indoor |
| Flammability / reaction to fire | UL 1666 Riser, FT4, IEC 60332-1-2 |
| NEC / UL compliance | Article 800, CMR |
| CEC / C(UL) compliance | CMG |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
