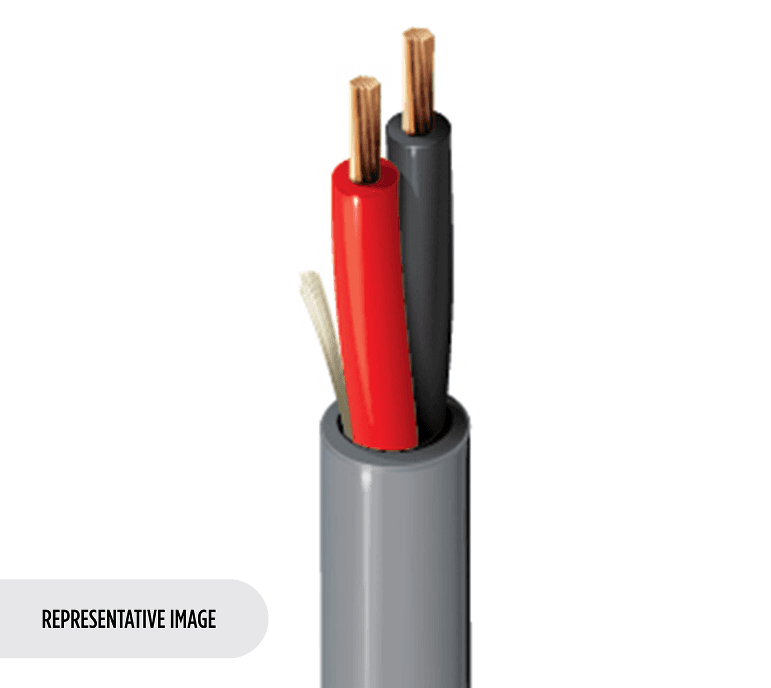

Belden 5200UP 010, Commercial Audio Cable 2C 16 AWG PVC FRPVC Black
SKU:Belden 5200UP 010
● In stock
Description
Belden 5200UP 010 is a commercial audio cable designed for speaker and low-voltage audio runs in security systems, intercom/PA, and power-limited control applications. It uses 2 stranded bare copper conductors in 16 AWG with PVC insulation and a PVC jacket. Electrical performance includes 4.05 Ohm/1000ft DCR and a 300 V (CM) UL Voltage Rating. It is intended for indoor (not riser or plenum) installations and meets Article 800, CM, and CPR Euroclass: Eca.
Key Features
- 2 stranded bare copper conductors (BC - Bare Copper) in 16 AWG for commercial audio and control wiring.
- PVC - Polyvinyl Chloride insulation and PVC - Polyvinyl Chloride jacket for indoor installations.
- Ripcord: Yes, to simplify stripping and handling during installation.
- UL Voltage Rating: 300 V (CM).
- Environmental suitability: Indoor (Not Riser or Plenum), Indoor.
- NEC / UL compliance: Article 800, CM.
- CPR compliance: CPR Euroclass: Eca.
Applications
- Use in security system installations where speaker and low-voltage audio runs are required.
- Support intercom/PA systems that need dependable audio cabling for indoor routing.
- Provide audio/speaker connections in commercial environments.
- Install for power-limited controls wiring in power-limited control applications.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Stranding | 65x34 |
| Insulation thickness (nom.) | 0.0175 in (0.445 mm) |
| Insulation diameter (nom.) | 0.094 in (2.4 mm) |
| Color Code | Black, White |
| Jacket thickness (nom.) | 0.015 in (0.38 mm) |
| Overall diameter (Nom.) | 0.218 in (5.54 mm) |
| Bulk cable weight | 26 lbs/1000ft |
| Conductor DCR (nom.) | 4.05 Ohm/1000ft |
| Capacitance, Cond-to-Cond (nom.) | 30 pF/ft (98 pF/m) |
| Inductance (nom.) | 0.16 µH/ft (0.52 µH/m) |
| Max. current | 15.7 Amps per Conductor @ 25°C |
| UL temperature | 75°C |
| Operating temperature | -20°C to +75°C |
| Min Bend Radius (Stationary) | 2.2 in (56 mm) |
| Min Bend Radius (Installation) | 2.2 in (56 mm) |
| Max Pull Tension | 65 lbs (29 kg) |
| Flammability / reaction to fire | UL 1685 UL loading , IEC 60332-1-2 |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
