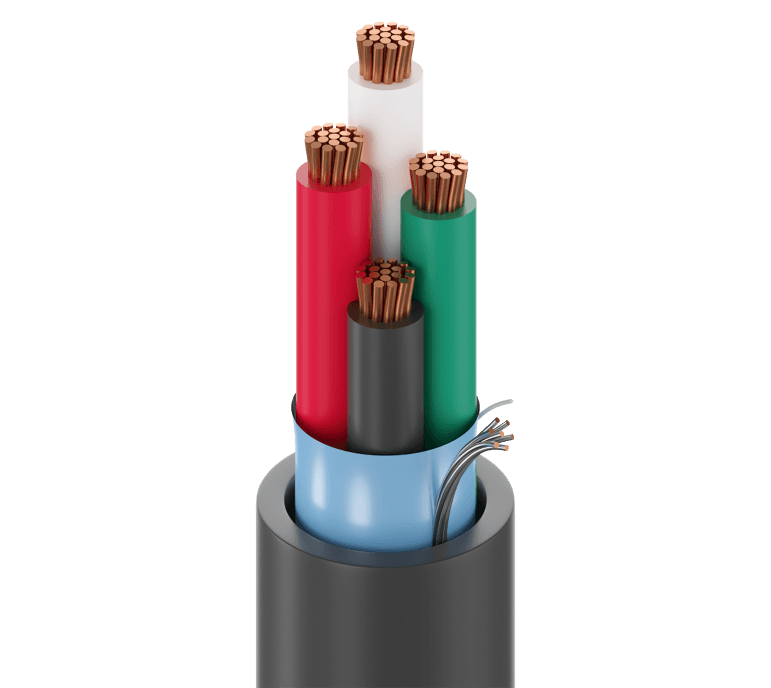

Belden 5202FE 008, Multi Conductor 4C 16 AWG FRPVC Gray
SKU:Belden 5202FE 008
● In stock
Description
Belden 5202FE 008 is a security & sound cable for Indoor - Riser and Indoor installations, built with 4 stranded 16 AWG BC - Bare Copper conductors and PP-POLYPROPYLENE insulation. It features a tape shield made from Bi-Laminate (Alum+Poly) with 100% coverage, plus an overall shield & drain and a 24 AWG (7x32) TC drainwire. The PVC - Polyvinyl Chloride jacket includes a ripcord and is rated 300 V (CMR) and 75°C. Sequential footage marking every two feet supports easier measuring during pulls.
Key Features
- Security & sound cable construction with 4 conductors in 16 AWG and 19x29 stranding.
- Overall tape shield with 100% coverage using Bi-Laminate (Alum+Poly), plus an overall shield & drain and a 24 AWG (7x32) TC drainwire.
- PVC - Polyvinyl Chloride jacket with ripcord for easier stripping and installation.
- Rated 300 V (CMR) and 75°C for Indoor - Riser and Indoor use.
- Sequential footage marking every two feet for efficient measurement.
Applications
- Use in security system installations where a shielded security & sound cable is needed.
- Support intercom/PA wiring runs in Indoor - Riser and Indoor environments.
- Connect audio/speaker circuits where interference reduction is helpful.
- Install in power-limited controls circuits requiring a 300 V (CMR) rated cable.
- Deploy in noisy environment installations where the overall shield & drain can help reduce interference.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Conductor color code | Black, Red, White, Green |
| Insulation thickness (nominal) | 0.008 in (0.20 mm) |
| Insulation diameter (nominal) | 0.073 in (1.9 mm) |
| Jacket thickness (nominal) | 0.017 in (0.43 mm) |
| Overall cable diameter (nominal) | 0.214 in (5.44 mm) |
| Bulk cable weight | 44 lbs/1000ft |
| Plenum number | 6202FE |
| Nom. conductor DCR | 4 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 30.5 pF/ft (100 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 55 pF/ft (180 pF/m) |
| Max. current | 5.0 Amps per Conductor @ 25°C |
| Nom. outer shield DCR | 14.4 Ohm/1000ft (47.2 Ohm/km) |
| Operating temperature | -20°C to +75°C |
| Bend radius (stationary min.) | 2.1 in (53 mm) |
| Bend radius (installation min.) | 2.1 in (53 mm) |
| Max Pull Tension | 146 lbs (66.2 kg) |
| Flammability / reaction to fire | UL 1666 Riser, FT4, IEC 60332-1-2 |
| NEC / UL compliance | Article 800, CMR |
| CEC / C(UL) compliance | CMG |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
