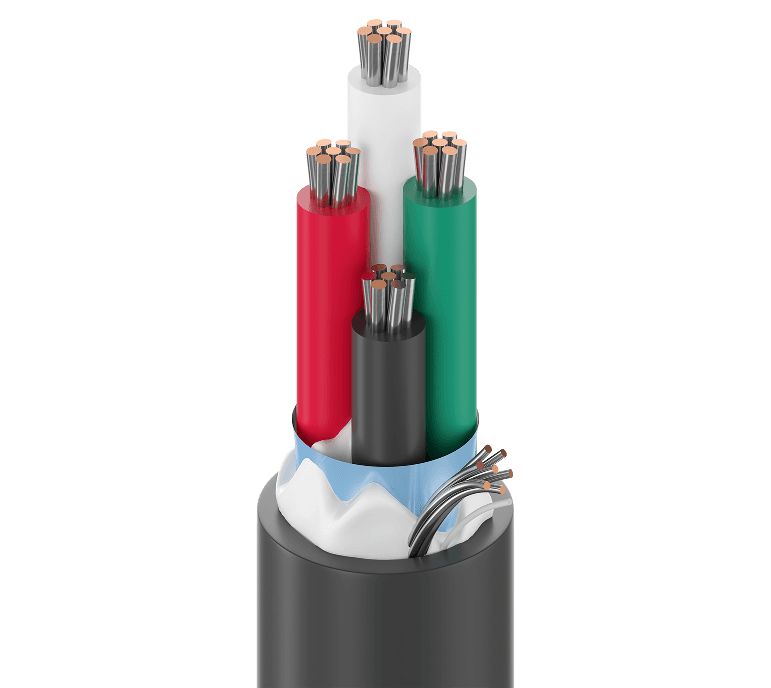

Belden 5302F1 010, Multi Conductor 4C 18 AWG PVC FS PVC Black
SKU:Belden 5302F1 010
● In stock
Description
Belden 5302F1 010 is a security & sound cable rated-CMG-FPL-PLTC with 4 conductors in 18 AWG stranded tinned copper and PVC insulation. It includes waterblock tape and a tape shield with 100% coverage, plus an overall drain wire to support noise rejection. The PVC jacket supports a 300 V (CMG, FPL, PLTC-ER) rating and a UL temperature of 90°C for use in specified indoor, outdoor, and below-grade conduit environments.
Key Features
- Rated-CMG-FPL-PLTC security & sound cable with UL voltage rating: 300 V (CMG, FPL, PLTC-ER).
- 4 conductors, 18 AWG, with conductor stranding: 7x26 and conductor material: TC - Tinned Copper.
- PVC - Polyvinyl Chloride insulation with color code: Black, White, Red, Green.
- Tape shield with shield coverage: 100% and drainwire type: 20 AWG (7x28) TC.
- Waterblocking: Waterblock Tape for moisture-focused installations.
- PVC - Polyvinyl Chloride jacket with overall cable diameter (nominal): 0.259 in (6.58 mm).
Applications
- Use for security system wiring where a rated-CMG-FPL-PLTC cable is required.
- For intercom/PA installations, the shielded construction supports noise rejection.
- Choose for audio/speaker runs where consistent electrical characteristics are needed.
- Apply in power-limited controls covered under the listed NEC / UL compliance articles.
- In noisy & wet location environments, water exposure and shielding are key considerations.
- For below-grade duct and below-grade conduit scenarios, burial and water exposure suitability are specified.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Insulation thickness (nom.) | 0.010 in (0.25 mm) |
| Insulation diameter (nom.) | 0.066 in (1.7 mm) |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Jacket thickness (nom.) | 0.037 in (0.94 mm) |
| Nom. diameter | 0.259 in (6.58 mm) |
| Bulk cable weight | 45 lbs/1000ft (67 kg/km) |
| Nom. conductor DCR | 6.6 Ohm/1000ft (22 Ohm/km) |
| Nom. capacitance cond-to-cond | 40 pF/ft (130 pF/m) |
| Nom. outer shield DCR | 15.25 Ohm/1000ft (50.03 Ohm/km) |
| UL temperature | 90°C |
| Operating temperature | -20°C to +90°C |
| Stationary min. bend radius | 2.6 in (66 mm) |
| Installation min. bend radius | 2.6 in (66 mm) |
| Max Pull Tension | 102 lbs (46.3 kg) |
| Environmental suitability | Water Exposure/Below-Grade Conduit, Indoor, Outdoor, Sunlight Resistance, Burial |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4, IEEE 1202 |
| CPR compliance | CPR Euroclass: Eca |
| NEC / UL compliance | Article 725, Article 760, Article 800, CMG, FPL, PLTC |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
