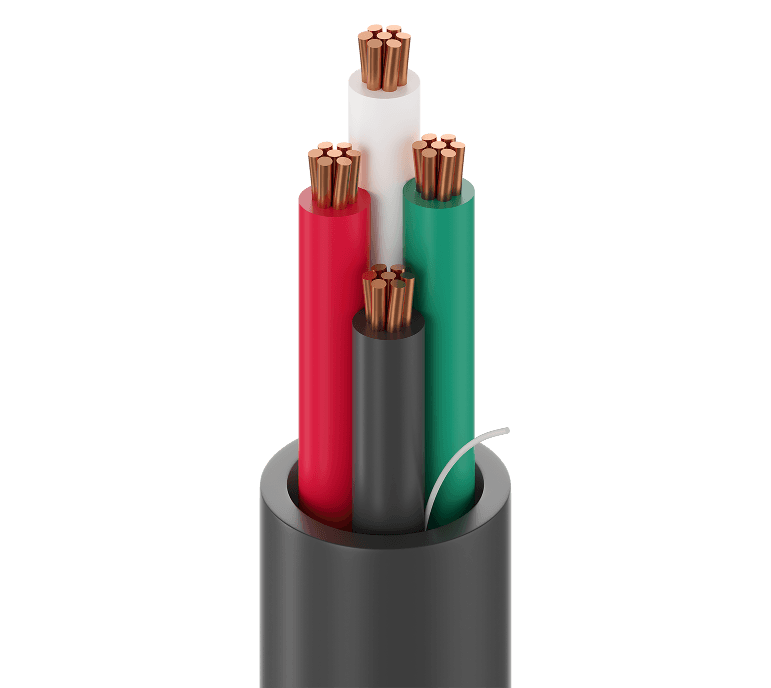

Belden 5302UE 008, Multi Conductor 4C 18 AWG PP FRPVC Gray

Belden 5302UE 008 is a security & sound cable with a Riser-CMR fire rating, built with 4 stranded 18 AWG BC - Bare Copper conductors and PP - Polypropylene insulation. It features a PVC - Polyvinyl Chloride jacket with a ripcord and sequential footage marking every two feet to support efficient measuring, pulling, and stripping. Electrical ratings include UL voltage rating: 300 V and max. current: 4 Amps per Conductor at 25ºC (10°C Temperature Rise).

Key Features

• Security & sound cable construction with a Riser-CMR fire rating for riser installations.
• 4 stranded 18 AWG conductors using BC - Bare Copper and 7x26 stranding.
• PVC - Polyvinyl Chloride jacket with ripcord for easier jacket removal during installation.
• Sequential footage marking every two feet to simplify measuring and pulls.
• UL voltage rating: 300 V and max. current: 4 Amps per Conductor at 25ºC (10°C Temperature Rise).

Applications

• Use in security system installations where dependable signal and power-limited control runs are required.
• Support intercom/PA wiring for consistent connectivity in communication systems.
• Route audio signals in audio/speaker connections for installed sound setups.
• Implement power-limited controls wiring for control circuits that require organized, easy-to-measure cable runs.
