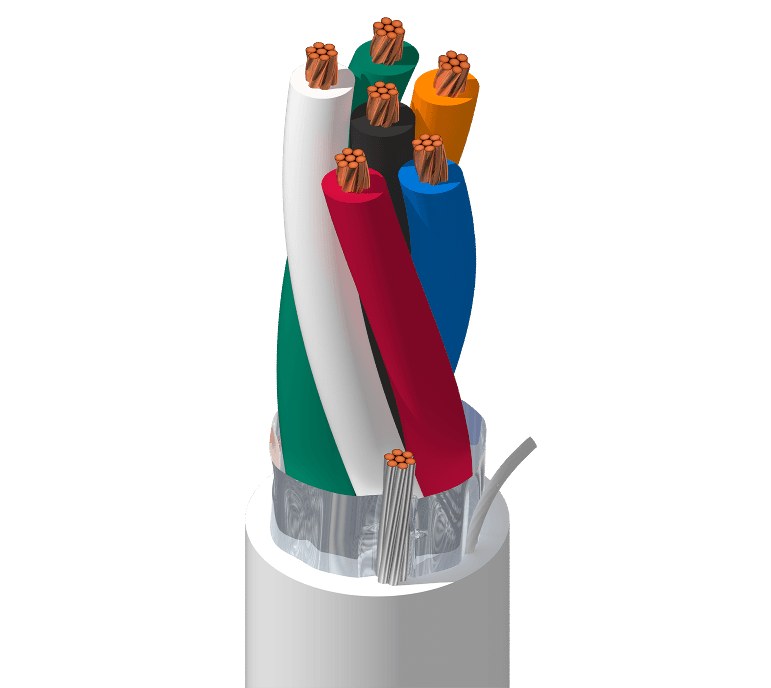

Belden 5304FE 008, Multi Conductor 6C 18 AWG FRPVC Gray
SKU:Belden 5304FE 008
● In stock
Description
Belden 5304FE 008 is a 6-conductor Security & Sound Cable, Riser-CMR, built with 18 AWG stranded bare copper conductors and a PVC jacket with ripcord. It uses PO (Polyolefin) insulation and includes a tape shield with 100% coverage plus a 24 AWG (7x32) TC drainwire. Designed for indoor riser installations, it is rated 300 V and 75°C and is sequentially footage marked every two feet for easier measuring and pulls.
Key Features
- 6-conductor construction with 18 AWG stranded bare copper conductors (7x26) for security and sound wiring.
- Tape shield with 100% coverage using Bi-Laminate (Alum+Poly), plus a 24 AWG (7x32) TC drainwire.
- PVC - Polyvinyl Chloride jacket with ripcord for easier stripping during installation.
- Riser-rated CMR design for indoor riser environments.
- Sequential footage marking every two feet to speed up measuring and pulls.
Applications
- Use in security system installations where a multi-conductor, shielded cable is needed for signal integrity.
- Support intercom/PA wiring runs in indoor riser pathways.
- Connect audio/speaker runs where shielding can help in noisy environment conditions.
- Install in power-limited controls circuits in indoor building installations.
- Choose for projects in a noisy environment where the overall shield and drainwire are beneficial.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Cable type | Security & Sound Cable, Riser-CMR |
| Number of Conductors | 6 |
| Conductor size | 18 AWG |
| Conductor stranding | 7x26 |
| Conductor Material | BC - Bare Copper |
| Insulation Material | PO - Polyolefin |
| Nom. insulation thickness | 0.009 in (0.23 mm) |
| Nom. insulation diameter | 0.062 in (1.6 mm) |
| Conductor color code | Black, Red, White, Green, Brown, Blue |
| Shield Type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Shield Coverage | 100% |
| Drainwire type | 24 AWG (7x32) TC |
| Jacket Material | PVC - Polyvinyl Chloride |
| Ripcord | Yes |
| Nom. jacket thickness | 0.017 in (0.43 mm) |
| Overall cable diameter (nominal) | 0.224 in (5.69 mm) |
| UL Voltage Rating | 300 V |
| UL temperature | 75°C |
| Nom. conductor DCR | 6.5 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 27 pF/ft (89 pF/m) |
| Nom. capacitance (Cond-to-other) | 48.5 pF/ft (159 pF/m) |
| Max. current | 9.8 Amps per conductor @ 25°C |
| Nom. outer shield DCR | 15.25 Ohm/1000ft (50.03 Ohm/km) |
| Nom. insertion loss (attenuation) | 25.1 dB/100m |
| Operating temperature | -20°C to +75°C |
| Bend radius (stationary min.) | 2.2 in (56 mm) |
| Bend radius (installation min.) | 2.2 in (56 mm) |
| Max Pull Tension | 143.5 lbs (65.09 kg) |
| Bulk cable weight | 43 lbs/1000ft |
| Flammability / reaction to fire | UL 1666 Riser, IEEE 1202 FT4, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| NEC / UL compliance | Article 800, CMR |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Plenum number | 6304FE |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
