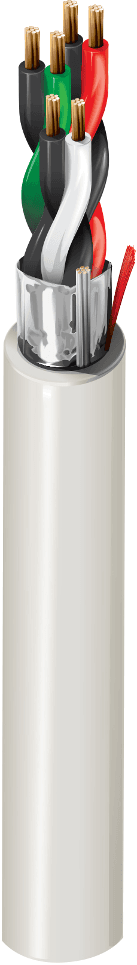

Belden 5342FE 008, Multi Conductor Cable 3 Pair 18 AWG Shielded PVC

Belden 5342FE 008 is a Security & Sound Cable for Riser (CMR) installations, built with 3 pair(s) of 18 AWG stranded BC - Bare Copper conductors. It features PP - Polypropylene insulation, a Tape shield with 100% coverage, and a PVC - Polyvinyl Chloride jacket with ripcord. Key electrical and compliance details include a UL Voltage Rating of 300 V, UL temperature of 75°C, and flammability ratings of UL 1666 Riser, FT4, IEC 60332-1-2.

Key Features

• 3 pair(s) of 18 AWG stranded BC - Bare Copper conductors (Stranding: 7x26).
• Tape shield made from Bi-Laminate (Alum+Poly) with 100% coverage.
• 24 AWG (7x32) TC drainwire included for grounding.
• PVC - Polyvinyl Chloride jacket with ripcord for easier stripping.
• Sequential footage marking every two feet supports faster measuring and pulls.

Applications

• Use in security system installations where a riser-rated cable is required.
• Choose for intercom/PA wiring runs that benefit from a shielded construction.
• Support audio/speaker connections in environments where noise can affect signal integrity.
• Install in power-limited controls circuits requiring a 300 V rated cable.
• Fit for noisy environment installations where shielding helps protect signal integrity.
