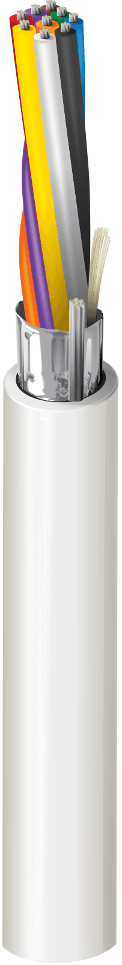

Belden 5407FE 008, Multi Conductor 9C 20 AWG PP FRPVC Gray
Description
Belden 5407FE 008 is a security & sound cable built with 9 stranded 20 AWG BC - Bare Copper conductors and PP - Polypropylene insulation. It uses an overall tape shield made from Bi-Laminate (Alum+Poly) with 100% coverage and a 24 AWG (7x32) TC drainwire type to support noise rejection in noisy environments. The PVC - Polyvinyl Chloride jacket includes a ripcord, and the cable is sequentially footage marked every two feet. It is rated UL1666 Riser, FT4 with NEC / UL compliance Article 800, CMR and a UL Voltage Rating of 300 V.
Key Features
- 9 conductors in 20 AWG with 7x28 stranding and BC - Bare Copper conductor material.
- Overall tape shield with Bi-Laminate (Alum+Poly) material, 100% coverage, and a 24 AWG (7x32) TC drainwire type.
- PVC - Polyvinyl Chloride jacket with ripcord for easier pulls and stripping.
- Sequential footage marking every two feet for simpler measuring and installation tracking.
- Indoor suitability with flammability / reaction to fire rated UL1666 Riser, FT4.
Applications
- Use in security system installations where multi-conductor wiring is needed for signal and control connections.
- Support intercom/PA systems that require organized multi-conductor runs for audio and control wiring.
- Choose for audio/speaker wiring where shielding helps reduce interference in noisy environments.
- Fit power-limited controls where multiple conductors support control and signaling connections.
- Install in noisy environment applications where the overall shield and drain wire support noise rejection.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Cable type | Security & Sound Cable |
| Insulation Material | PP - Polypropylene |
| Nom. insulation thickness | 0.008 in (0.20 mm) |
| Nom. insulation diameter | 0.052 in (1.3 mm) |
| Color Code | Black, Red, White, Green, Brown, Blue, Orange, Yellow, Purple |
| Nom. jacket thickness | 0.018 in (0.46 mm) |
| Overall cable diameter (nominal) | 0.22 in |
| Bulk cable weight | 43 lbs/1000ft |
| Plenum number | 6407FE |
| Nom. conductor DCR | 10.2 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 26 pF/ft (85 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 46.75 pF/ft (153.4 pF/m) |
| Max. current | 2.6 Amps per Conductor at 25ºC |
| Nom. outer shield DCR | 14.4 Ohm/1000ft (47.2 Ohm/km) |
| UL temperature | 75°C |
| Operating temperature | -20°C To +75°C |
| Stationary min. bend radius | 2.2 in (56 mm) |
| Installation min. bend radius | 2.2 in |
| Max Pull Tension | 122.5 lbs (55.57 kg) |
| NEC / UL compliance | Article 800, CMR |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
