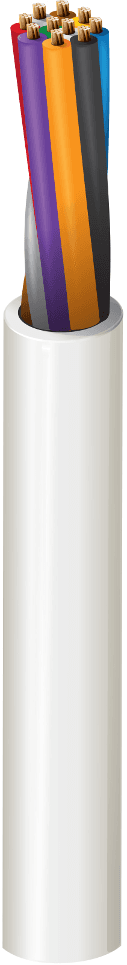

Belden 5408UE 008, Multi Conductor 10C 20 AWG PP FRPVC Gray
Description
Belden 5408UE 008 is a security & sound riser (CMR) cable with 10 stranded bare copper conductors in 20 AWG, insulated with PP - Polypropylene and protected by a PVC - Polyvinyl Chloride jacket. It is rated 300 V and 75°C, with flammability / reaction to fire listed as UL1666 Riser, FT4. Installation-focused features include a ripcord and sequential footage marking every two feet.
Key Features
- 10-conductor 20 AWG construction for security & sound and power-limited control runs.
- Riser (CMR) cable with UL1666 Riser, FT4 flammability / reaction to fire listing.
- PP - Polypropylene insulation with a PVC - Polyvinyl Chloride outer jacket.
- Includes a ripcord for efficient stripping and installation.
- Sequential footage marking every two feet helps track pulls and cut lengths.
Applications
- Use in security system wiring where multi-conductor runs are needed for signal and power-limited control connections.
- Support intercom/PA installations that require organized conductor identification using the listed color code.
- Install for audio/speaker connections in building riser pathways where CMR is required.
- Apply in power-limited controls where sequential footage marking every two feet helps with measuring and cutting.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of Conductors | 10 |
| Conductor size | 20 |
| Conductor stranding | 7x28 |
| Conductor Material | BC - Bare Copper |
| Insulation Material | PP - Polypropylene |
| Nom. thickness (insulation) | 0.008 in (0.20 mm) |
| Nom. insulation diameter | 0.062 in (1.6 mm) |
| Color Code | Black, Red, White, Green, Brown, Blue, Orange, Yellow, Purple, Gray |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Nom. thickness (jacket) | 0.018 in (0.46 mm) |
| Nom. diameter | 0.244 in |
| Shield | No |
| UL Voltage Rating | 300 V |
| Nom. conductor DCR | 10.82 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 24.7 pF/ft (81.0 pF/m) |
| Max. current | 2.6 Amps per Conductor at 25ºC |
| Operating temperature | -20°C To +75°C |
| UL temperature | 75°C |
| Bend radius (stationary min.) | 2.44 in (62.0 mm) |
| Bend radius (installation min.) | 2.44 in |
| Max Pull Tension | 126 lbs (57.2 kg) |
| Bulk cable weight | 44 lbs/1000ft |
| Environmental suitability | Outdoor |
| NEC / UL compliance | Article 800, CMR |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Plenum number | 6408UE |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
