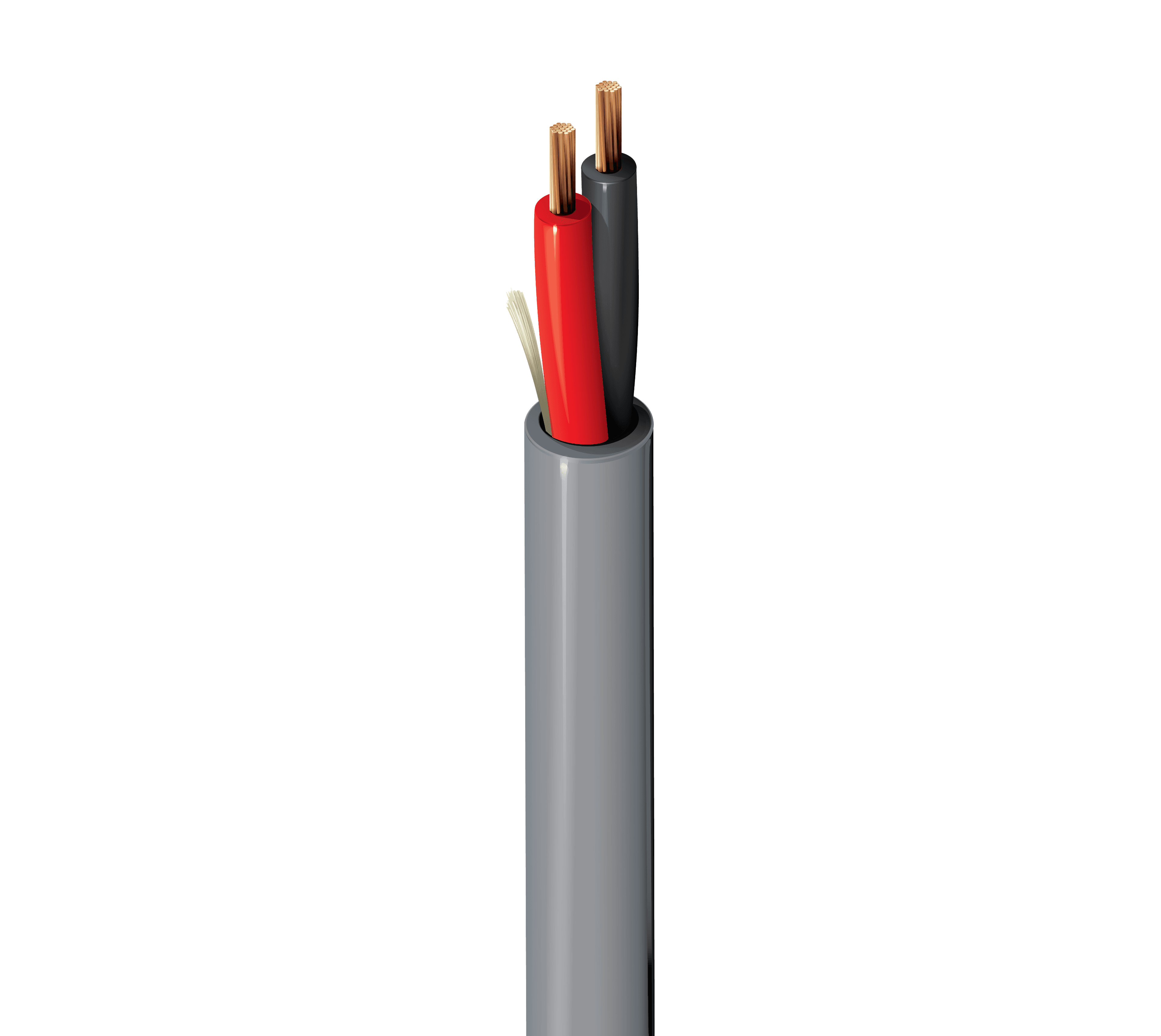

Belden 5500UE 008, ARBOR HOLE 22 AWG 2C Stranded BC PP PVC Jacket GRY
SKU:Belden 5500UE 008
$0.140/ FT
● In stock
Description
Belden 5500UE 008 is a security and commercial audio cable for indoor riser installations (Riser-CMR). It features 2 stranded 22 AWG BC - Bare Copper conductors, PP - Polypropylene insulation, and a PVC - Polyvinyl Chloride jacket with ripcord. This 300 V cable is rated for UL 1666 Riser and Article 800, CMR applications.
Key Features
- Indoor riser cable design for Riser-CMR installations.
- 2 stranded 22 AWG BC - Bare Copper conductors for low-voltage system wiring.
- PP - Polypropylene insulation with insulation color code: Black, Red.
- PVC - Polyvinyl Chloride jacket with ripcord for easier stripping.
- UL voltage rating: 300 V.
- Flammability / reaction to fire: UL 1666 Riser, IEEE 1202 FT4, IEC 60332-1-2.
- NEC / UL compliance: Article 800, CMR.
Applications
- Supports security systems wiring in indoor riser pathways.
- Use it for intercom/PA systems where a riser-rated cable is required.
- Designed for sound/audio systems in commercial and security-related installations.
- Works for power limited controls in indoor building runs.
- It can be used for single line telephone connections in indoor riser environments.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of Conductors | 2 |
| Conductor size | 22 AWG |
| Conductor stranding | 7x30 |
| Conductor Material | BC - Bare Copper |
| Insulation Material | PP - Polypropylene |
| Nom. insulation thickness | 0.008 in (0.20 mm) |
| Nom. insulation diameter | 0.045 in (1.1 mm) |
| Insulation color code | Black, Red |
| Jacket Material | PVC - Polyvinyl Chloride |
| Nom. jacket thickness | 0.017 in (0.43 mm) |
| Nom. overall diameter | 0.123 in (3.12 mm) |
| Ripcord | Yes |
| Shield | No |
| Plenum number | 6500UH |
| Nom. conductor DCR | 16.9 Ohm/1000ft (55.4 Ohm/km) |
| Nom. capacitance cond-to-cond | 17 pF/ft (56 pF/m) |
| Nom. inductance | 0.17 µH/ft (0.56 µH/m) |
| Max. current | 6 Amps per Conductor at 25ºC |
| UL temperature | 75°C |
| Operating temperature | -20°C to +75°C |
| Bend radius (stationary min.) | 1.2 in (30 mm) |
| Bend radius (installation min.) | 1.2 in (30 mm) |
| Max Pull Tension | 18 lbs (8.2 kg) |
| Bulk cable weight | 8 lbs/1000ft (12 kg/km) |
| Environmental suitability | Indoor - Riser, Indoor |
| CPR compliance | CPR Euroclass: Eca |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
