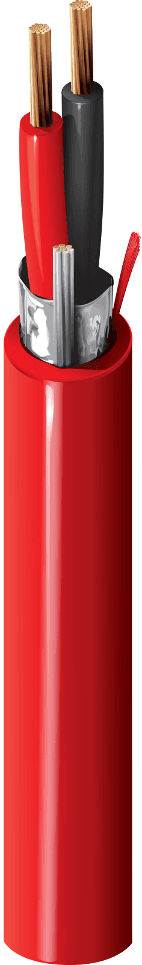

Belden 6100FL 002, FLRST FS 2C 14 AWG Red Audio Cable
SKU:Belden 6100FL 002
● In stock
Description
Belden 6100FL 002 is a plenum-rated fire alarm cable (Plenum-FPLP) for fire alarm, monitor/detection, and circuits including audio, control, initiating, and notification in noisy environments. It is built with 2 14 AWG stranded bare copper conductors with Flamarrest® insulation, plus an overall Beldfoil® tape shield and drain wire for noise protection. A PVC - Polyvinyl Chloride outer jacket includes a ripcord, and the cable includes sequential footage marking every two feet. Designed for indoor use, it meets NFPA 262 (UL910), Article 760, and FPLP.
Key Features
- Plenum-rated fire alarm cable (Plenum-FPLP) for indoor installations.
- 2 14 AWG stranded bare copper conductors with Flamarrest® insulation.
- Overall Beldfoil® tape shield (foil side out) with 100% coverage and a drain wire for noise protection.
- PVC - Polyvinyl Chloride outer jacket with ripcord for easier installation.
- Sequential footage marking every two feet for measuring and pull tracking.
Applications
- Use in fire alarm installations where plenum-rated cable is required.
- Support monitor/detection circuits in indoor environments.
- Run audio, control, initiating, and notification circuits, including in noisy environments.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of Conductors | 2 |
| Conductor size | 14 |
| Conductor stranding | 19x26 |
| Conductor Material | BC - Bare Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Nom. thickness (insulation) | 0.011 in (0.28 mm) |
| Nom. insulation diameter | 0.094 in (2.4 mm) |
| Color Code | Black, Red |
| Shield Type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Shield Coverage | 100% |
| Drainwire type | 22 AWG (7x30) TC |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Nom. thickness (jacket) | 0.015 in (0.38 mm) |
| Nom. diameter | 0.218 in |
| Ripcord | Yes |
| Non-Plenum number | 5100FL |
| Nom. conductor DCR | 2.67 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 78.5 pF/ft (258 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 141.25 pF/ft (463.42 pF/m) |
| Nom. outer shield DCR | 10 Ohm/1000ft (33 Ohm/km) |
| Max. current | 25 Amps per Conductor at 25ºC |
| UL Voltage Rating | 300 V |
| UL temperature | 75°C |
| Operating | 0°C To +75°C |
| Bend radius (stationary min.) | 3.27 in (83.1 mm) |
| Bend radius (installation min.) | 3.27 in |
| Max Pull Tension | 104.1 lbs (47.22 kg) |
| Bulk cable weight | 38 lbs/1000ft |
| Environmental suitability | Indoor |
| Flammability / reaction to fire | NFPA 262 (UL910), IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| NEC / UL compliance | Article 760, FPLP |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
