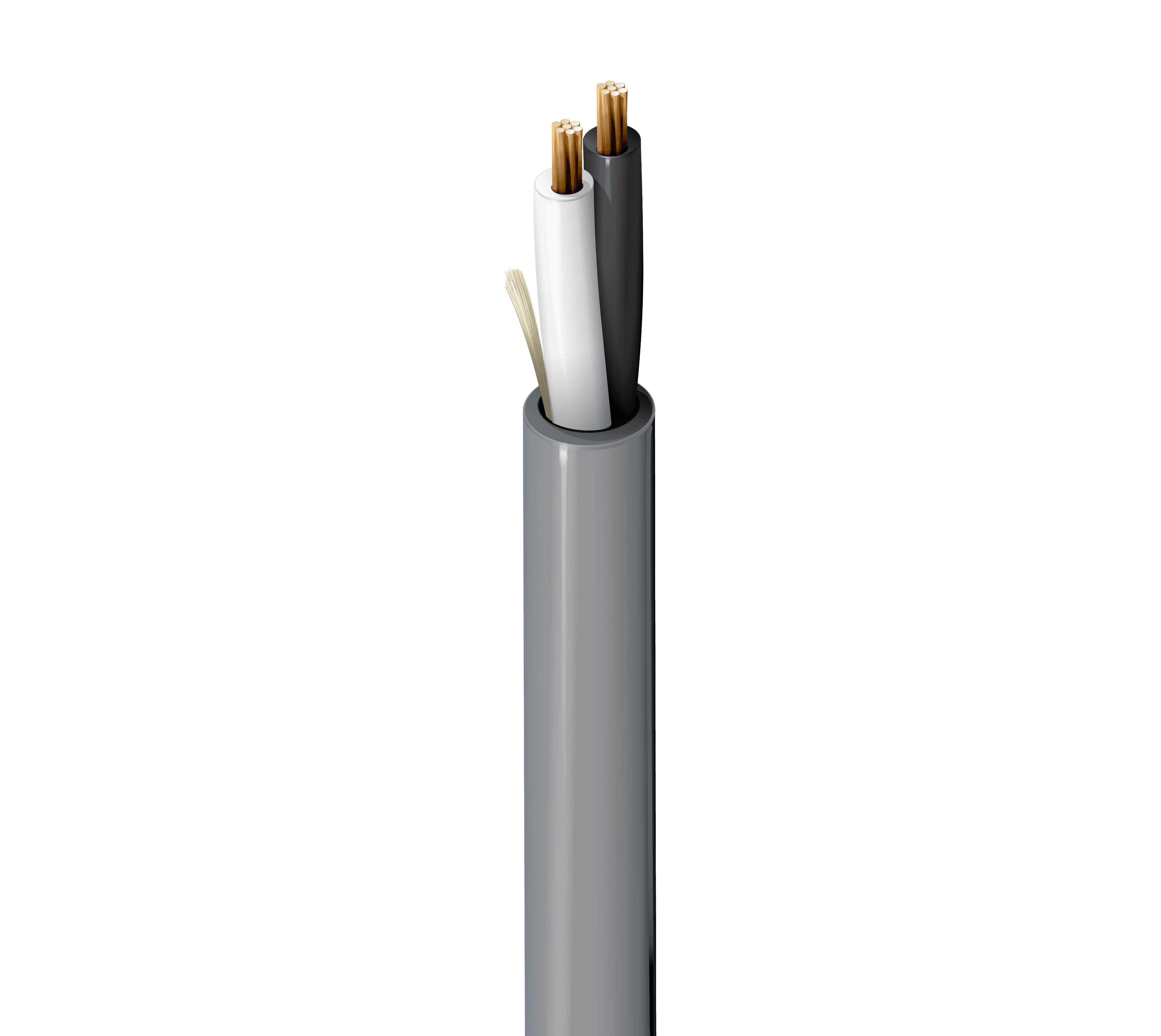

Belden 6100UE 877, Multi Conductor FLRST 2C 14 AWG Natural
SKU:Belden 6100UE 877
● In stock
Description
Belden 6100UE 877 is a 2-conductor, 14 AWG security and commercial audio cable for intercom/PA and sound/audio system wiring in plenum spaces. It features 2-14 AWG stranded bare copper conductors with Flamarrest® insulation and a Flamarrest® jacket. The cable is UL listed for Article 725 CL2P and has a 300 V UL voltage rating. A ripcord and sequential footage marking every two feet support efficient jacket removal and installation.
Key Features
- 2-conductor, 14 AWG construction for security and commercial audio wiring.
- 2-14 AWG stranded bare copper conductors with 19x26 stranding.
- Flamarrest® insulation and Flamarrest® jacket.
- Environmental suitability: indoor - plenum, indoor.
- NEC / UL compliance: Article 725, CL2P.
- UL voltage rating: 300 V.
- Ripcord: yes, with sequential footage marking every two feet.
Applications
- Use in intercom/PA systems where plenum-rated wiring is required for indoor installations.
- Support sound/audio system wiring in plenum spaces, with sequential footage marking every two feet for organized routing and identification.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Conductor Material | BC - Bare Copper |
| Conductor Type | Stranded Conductor |
| Insulation Material | PVC - Polyvinyl Chloride |
| Insulation thickness (nom.) | 0.010 in (0.25 mm) |
| Insulation diameter (nom.) | 0.090 in (2.3 mm) |
| Color Code | Black, White |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket thickness (nom.) | 0.015 in (0.38 mm) |
| Nom. conductor DCR | 2.54 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 36 pF/ft (120 pF/m) |
| Nom. inductance | 0.145 µH/ft (0.476 µH/m) |
| Max. current | 25 Amps per Conductor @ 25°C |
| Cable diameter (nom.) | 0.210 in (5.33 mm) |
| Min Bend Radius (Stationary) | 2.1 in (53 mm) |
| Min Bend Radius (Installation) | 2.1 in (53 mm) |
| Max Pull Tension | 95 lbs (43 kg) |
| Bulk cable weight | 35 lbs/1000ft |
| UL temperature | 75°C |
| Operating temperature | 0°C to +75°C |
| Installation temperature | 0°C to +75 |
| Flammability / reaction to fire | NFPA 262, UL 910 (Plenum), IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum number | 5100UE |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
