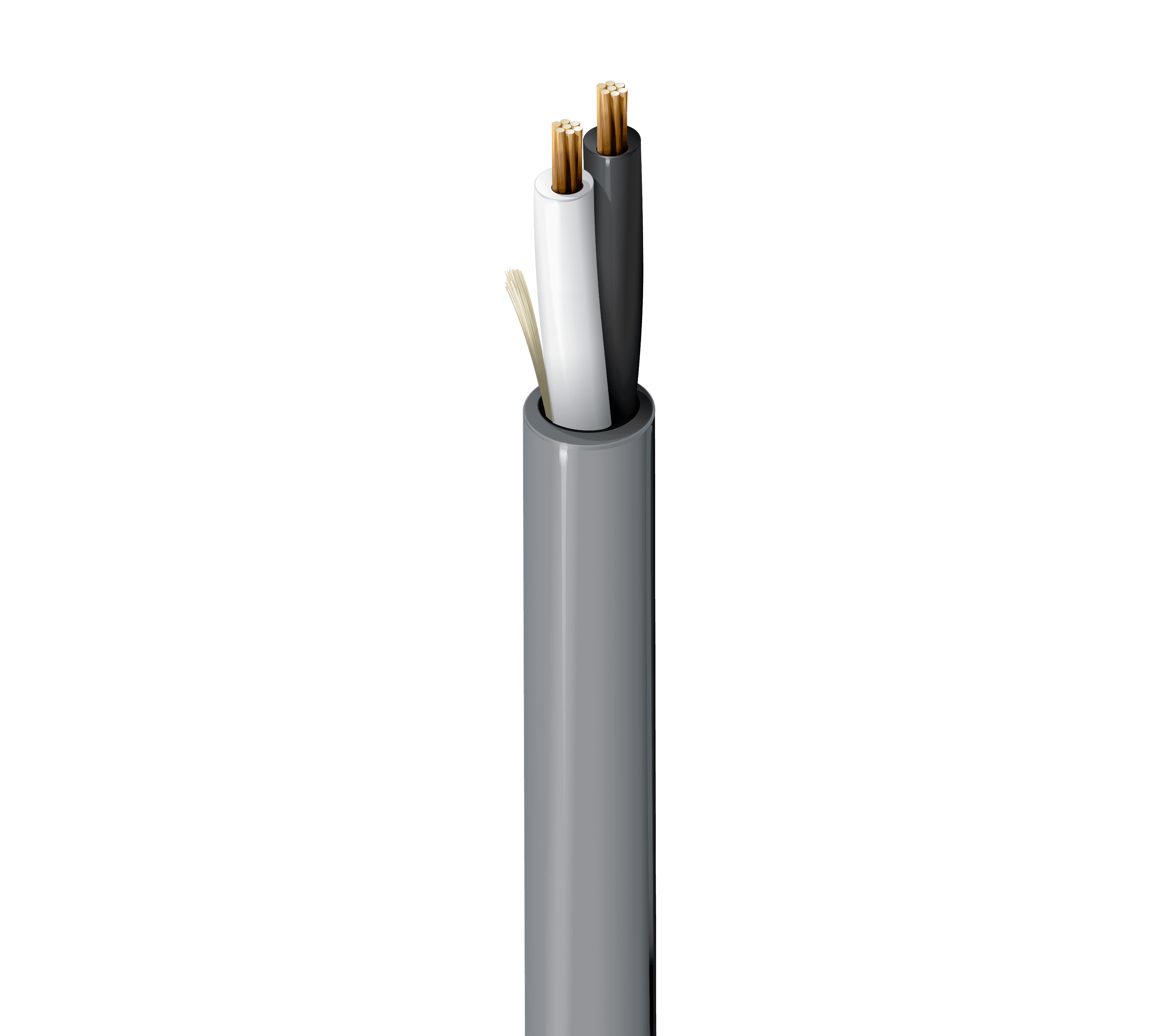

Belden 6100UE 877U, Multi Conductor FLRST 2C 14 AWG Natural
SKU:Belden 6100UE 877U
● In stock
Description
Belden 6100UE 877U is a security and commercial audio cable for plenum indoor installations, supporting intercom/PA systems and sound/audio systems. It is built with 2 x 14 AWG stranded bare copper conductors and a PVC - Polyvinyl Chloride insulation and jacket system. This cable meets Article 725, CL2P requirements and carries a 300 V UL Voltage Rating with a Max. Current of 25 Amps per Conductor @ 25°C. For easier handling during installation, it includes a ripcord and sequential footage marking every two feet.
Key Features
- 2 conductors in 14 AWG with stranded bare copper (BC - Bare Copper) construction.
- PVC - Polyvinyl Chloride insulation and PVC - Polyvinyl Chloride jacket for plenum indoor use.
- Meets NEC / UL Compliance: Article 725, CL2P with UL Voltage Rating: 300 V.
- Rated Max. Current: 25 Amps per Conductor @ 25°C.
- Includes a ripcord and sequential footage marking every two feet to support measuring and pulls.
Applications
- Use in intercom/PA systems where plenum indoor routing is required.
- Install in sound/audio systems in commercial environments needing CL2P-rated cable.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of Conductors | 2 |
| Conductor size | 14 AWG |
| Stranding | 19x26 |
| Conductor Material | BC - Bare Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Insulation nom. thickness | 0.010 in (0.25 mm) |
| Nom. insulation diameter | 0.090 in (2.3 mm) |
| Color Code | Black, White |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket nom. thickness | 0.015 in (0.38 mm) |
| Overall cable diameter (nominal) | 0.210 in (5.33 mm) |
| Non-Plenum number | 5100UE |
| Nom. conductor DCR | 2.54 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 36 pF/ft (120 pF/m) |
| Nom. inductance | 0.145 µH/ft (0.476 µH/m) |
| UL temperature | 75°C |
| Operating temperature | 0°C to +75°C |
| Installation temperature | 0°C to +75 |
| Stationary min. bend radius | 2.1 in (53 mm) |
| Installation min. bend radius | 2.1 in (53 mm) |
| Max Pull Tension | 95 lbs (43 kg) |
| Bulk cable weight | 35 lbs/1000ft |
| Environmental suitability | Indoor - Plenum, Indoor |
| Flammability / reaction to fire | NFPA 262, UL 910 (Plenum), IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
