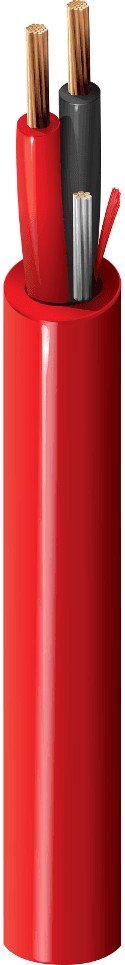

Belden 6100UL 002, FLRST 2C 14 AWG Red Multi Conductor Cable
SKU:Belden 6100UL 002
● In stock
Description
Belden 6100UL 002 is a plenum-rated fire alarm cable (Plenum-FPLP) with 2 stranded bare copper conductors (2-14 AWG) and a Flamarrest® PVC jacket. It is built for fire alarm, monitor/detection, and audio/control/initiating/notification circuits in indoor installations. Key electrical characteristics include 300 V, 2.67 Ohm/1000ft nominal conductor DCR, and 32 pF/ft (100 pF/m) nominal capacitance conductor-to-conductor. It meets NFPA 262 (UL910) and NEC Article 760, FPLP requirements.
Key Features
- Plenum-rated fire alarm cable (Plenum-FPLP) designed for indoor installations.
- 2 stranded bare copper conductors (2-14 AWG) with insulation color code: Black, Red.
- Flamarrest® insulation and a Flamarrest® PVC jacket with ripcord for easier stripping.
- Electrical performance includes 300 V, 2.67 Ohm/1000ft nominal conductor DCR, and 32 pF/ft (100 pF/m) nominal capacitance conductor-to-conductor.
- Meets NFPA 262 (UL910) and NEC / UL compliance: Article 760, FPLP.
Applications
- Supports fire alarm circuits where plenum-rated cabling is required.
- Enables monitor/detection circuit wiring in indoor environments.
- Works in circuits that include audio, control, initiating, and notification functions.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of Conductors | 2 |
| Conductor size | 14 |
| Conductor stranding | 19x26 |
| Conductor Material | BC - Bare Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Ripcord | Yes |
| Nom. insulation thickness | 0.012 in (0.30 mm) |
| Nom. insulation diameter | 0.094 in (2.4 mm) |
| Nom. jacket thickness | 0.015 in (0.38 mm) |
| Nom. overall diameter | 0.214 in |
| Bulk cable weight | 35 lbs/1000ft |
| Max. current | 25 Amps per Conductor at 25ºC |
| UL temperature | 75°C |
| Operating temperature | 0°C To +75°C |
| Stationary min. bend radius | 1.71 in (43.4 mm) |
| Installation min. bend radius | 1.71 in |
| Max Pull Tension | 95 lbs (43 kg) |
| Environmental suitability | Indoor |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum number | 5100UL |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
