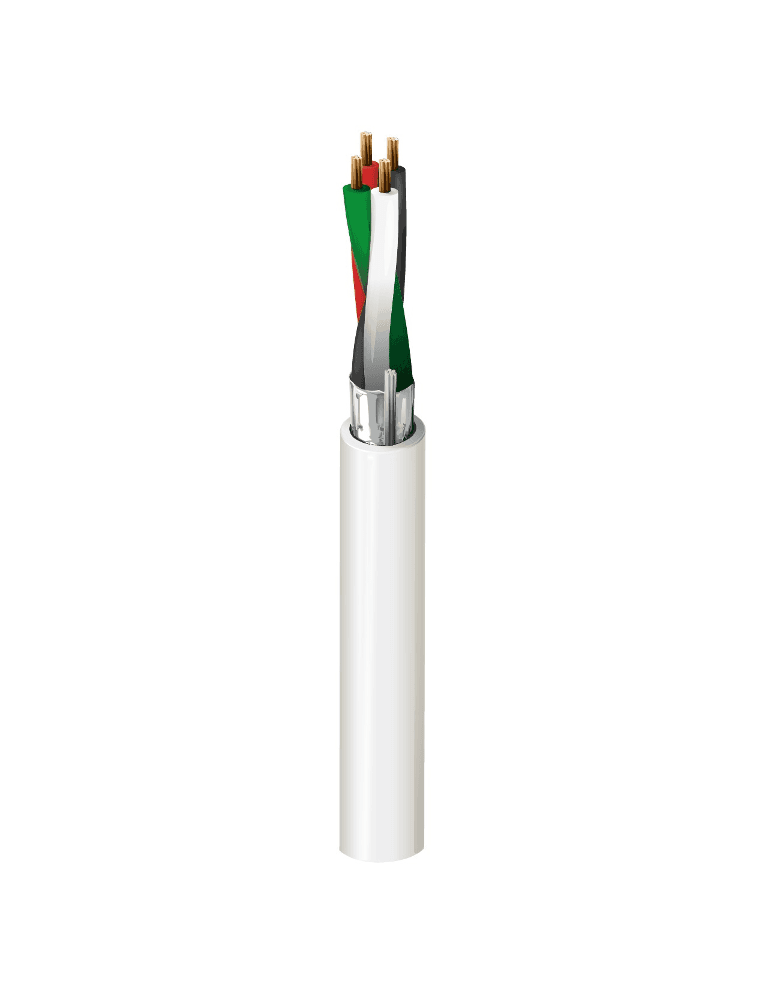

Belden 6202FE 877, FLRST FS 4C 16 AWG Multi Conductor Natural
SKU:Belden 6202FE 877
● In stock
Description
Belden 6202FE 877 is a plenum-rated security & commercial audio cable with 4 stranded 16 AWG BC - Bare Copper conductors and a PVC - Polyvinyl Chloride jacket. It features PVC - Polyvinyl Chloride insulation, a Beldfoil® tape shield, and a 24 AWG (7x32) TC drainwire to help manage noise. UL rated 300 V, it has a 0.215 in (5.46 mm) nominal diameter for routing in plenum spaces. A ripcord and sequential footage marking every two feet support efficient installation and measurement.
Key Features
- Plenum-rated construction for indoor - plenum, indoor installations.
- 4 stranded 16 AWG conductors with 19x29 stranding and BC - Bare Copper conductor material.
- Beldfoil® tape shield with 100% coverage and a 24 AWG (7x32) TC drainwire for noise rejection.
- PVC - Polyvinyl Chloride jacket with ripcord and a 0.215 in (5.46 mm) nominal diameter for easier routing.
- UL voltage rating: 300 V.
- Sequential footage marking every two feet to help with measuring and layout during installation.
Applications
- Security systems that require a plenum-rated cable for indoor routing.
- Intercom/PA systems that benefit from shielded construction to help manage noise.
- Sound/audio systems that require a security & commercial audio cable format.
- Power limited controls in indoor installations where CMP compliance is specified.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Insulation Material | PVC - Polyvinyl Chloride |
| Nom. thickness | 0.009 in (0.23 mm) |
| Nom. insulation diameter | 0.075 in (1.9 mm) |
| Color Code | Black, Red, White, Green |
| Shield Type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Nom. jacket thickness | 0.015 in (0.38 mm) |
| Nom. outer shield DCR | 14.4 Ohm/1000ft (47.2 Ohm/km) |
| Nom. conductor DCR | 4 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 45 pF/ft (150 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 81 pF/ft (270 pF/m) |
| Nom. inductance | 0.15 µH/ft (0.49 µH/m) |
| Max. current | 14.4 Amps per Conductor @ 25°C |
| Operating temperature | 0°C to +75°C |
| UL temperature | 75°C |
| Bend radius (stationary min.) | 2.2 in (56 mm) |
| Bend radius (installation min.) | 2.2 in (56 mm) |
| Max Pull Tension | 165 lbs (74.8 kg) |
| Bulk cable weight | 46 lbs/1000ft |
| NEC / UL compliance | Article 800, CMP |
| CEC / C(UL) compliance | CMP |
| Flammability / reaction to fire | NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum number | 5202FE |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
