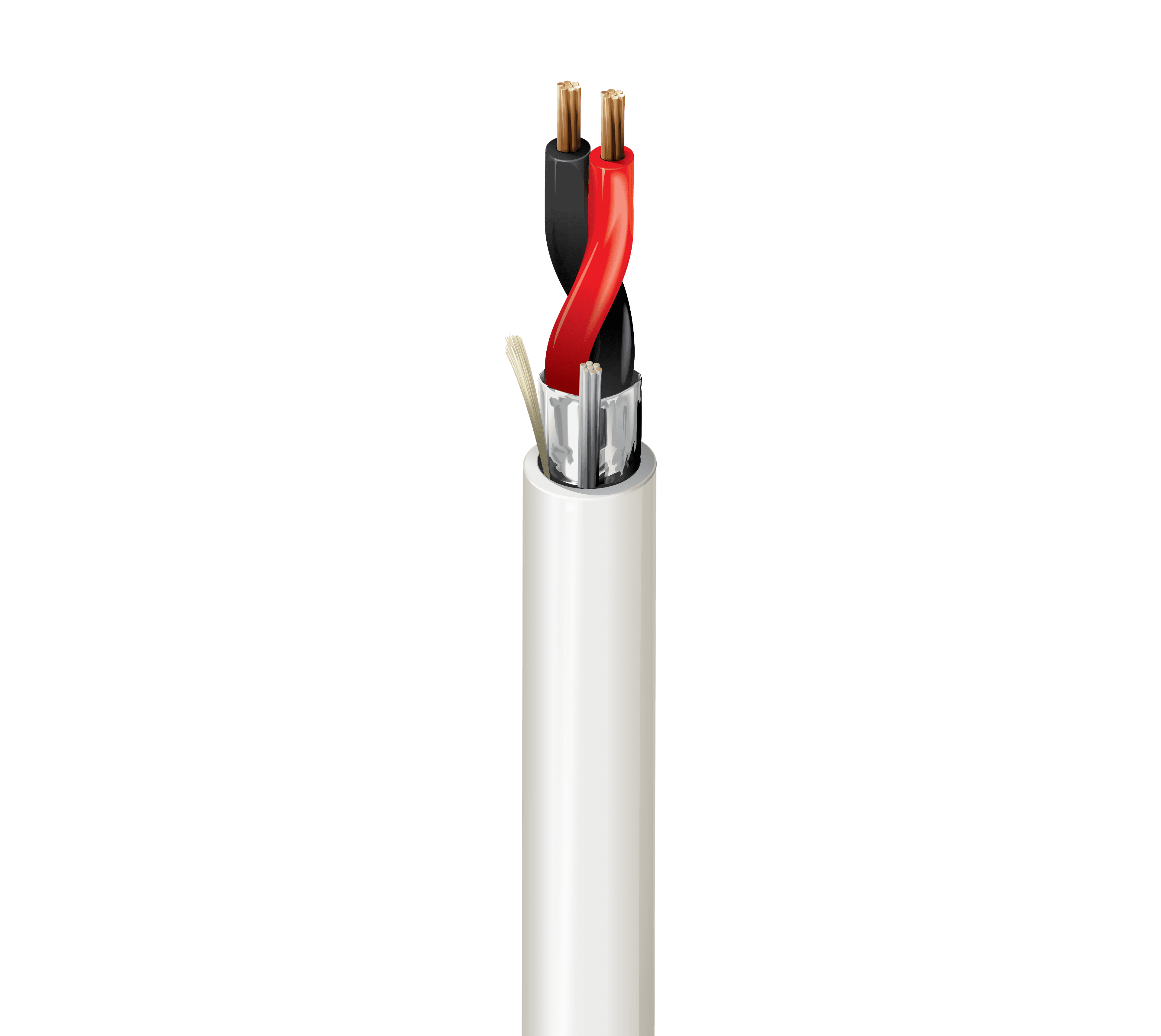

Belden 6300FE 877U, Commercial Audio Cable 2C 18 AWG FLRST FS Natural
SKU:Belden 6300FE 877U
● In stock
Description
Belden 6300FE 877U is a Plenum-CMP security & commercial audio cable with 2 stranded 18 AWG BC - Bare Copper conductors and PVC - Polyvinyl Chloride insulation. An overall tape shield (Bi-Laminate (Alum+Poly), 100% coverage) and a 24 AWG (7x32) TC drainwire support noise rejection in signal runs. The PVC - Polyvinyl Chloride jacket includes a ripcord and has a 0.162 in (4.11 mm) nominal overall diameter for routing. It is rated 300 V and meets NFPA 262 and UL 910 (Plenum).
Key Features
- Plenum-CMP rated construction for indoor - plenum and indoor installations.
- 2 stranded 18 AWG BC - Bare Copper conductors with PVC - Polyvinyl Chloride insulation.
- Overall tape shield with Bi-Laminate (Alum+Poly) material and 100% coverage, plus a 24 AWG (7x32) TC drainwire.
- PVC - Polyvinyl Chloride jacket with ripcord and a 0.162 in (4.11 mm) nominal overall cable diameter.
- Meets NFPA 262 and UL 910 (Plenum) flammability / reaction to fire requirements.
Applications
- Use in security system installations where a plenum-rated cable is required for indoor pathways.
- Run in intercom/PA systems where shielded construction supports cleaner signal transfer.
- Install for audio/speaker wiring where consistent electrical characteristics are needed across the run.
- Route through noisy environments where the overall shield and drainwire help reduce interference.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Cable type | Security & Commercial Audio Cable |
| Number of Conductors | 2 |
| Conductor stranding | 7x26 |
| Nom. insulation thickness | 0.009 in (0.23 mm) |
| Nom. insulation diameter | 0.063 in (1.6 mm) |
| Insulation color code | Black, Red |
| Nom. jacket thickness | 0.015 in (0.38 mm) |
| Sequential footage marking | every two feet |
| Nom. conductor DCR | 6.4 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 70 pF/ft (230 pF/m) |
| Nom. capacitance (Cond-to-other) | 126 pF/ft (413 pF/m) |
| Nom. inductance | 0.15 µH/ft (0.49 µH/m) |
| Max. current | 14 Amps per conductor @ 25°C |
| Nom. outer shield DCR | 15.9 Ohm/1000ft (52.2 Ohm/km) |
| UL temperature | 75°C |
| Operating temperature | 0°C to +75°C |
| Bend radius (stationary min.) | 1.6 in (41 mm) |
| Bend radius (installation min.) | 1.6 in (41 mm) |
| Max Pull Tension | 50.3 lbs (22.8 kg) |
| Bulk cable weight | 21 lbs/1000ft |
| CPR compliance | CPR Euroclass: Eca |
| NEC / UL compliance | Article 800, CMP |
| CEC / C(UL) compliance | CMP |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum number | 5300FH |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
