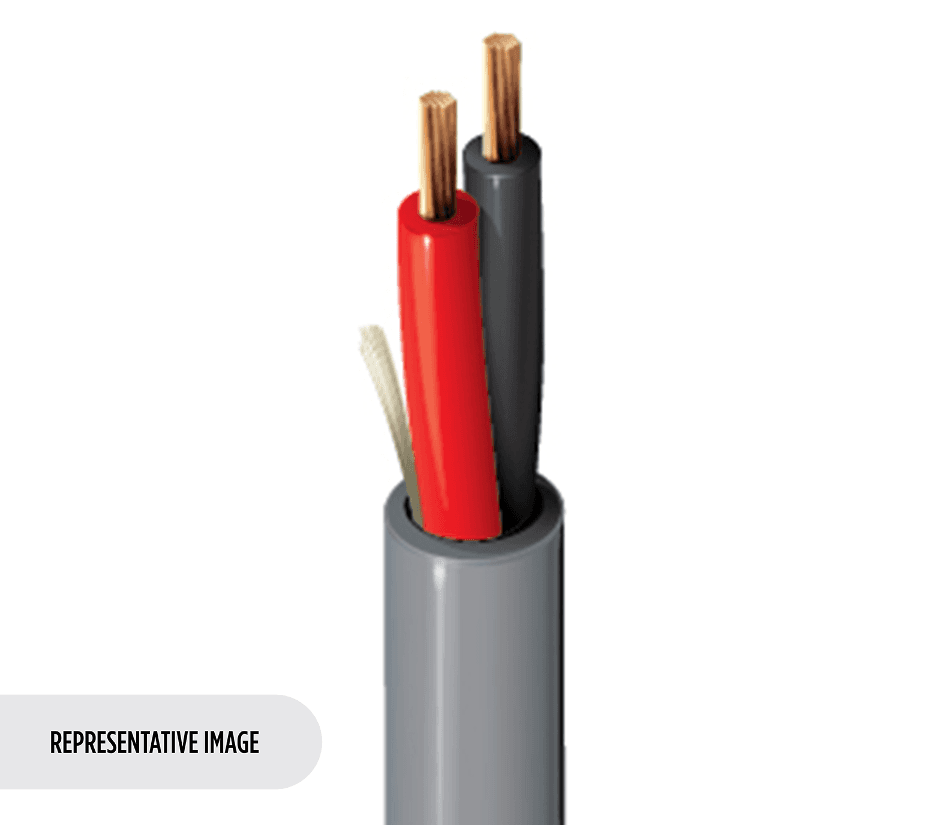

Belden 6301UE 877, Commercial Audio Cable 3C 18 AWG FLRST Natural
SKU:Belden 6301UE 877
● In stock
Description
Belden 6301UE 877 is a plenum-rated commercial audio cable for intercom/PA systems and sound/audio systems. It is built with 3-18 AWG stranded (7x26) BC - Bare Copper conductors, PVC - Polyvinyl Chloride insulation, and a PVC - Polyvinyl Chloride jacket. Designed for Indoor - Plenum, Indoor installations, it meets NFPA 262 and UL 910 (Plenum) fire safety requirements. A ripcord and sequential footage marking every two feet help simplify stripping, measuring, and pulls.
Key Features
- Plenum-rated design for environmental suitability: Indoor - Plenum, Indoor.
- 3-18 AWG stranded (7x26) BC - Bare Copper conductors for signal and power delivery.
- PVC - Polyvinyl Chloride insulation and PVC - Polyvinyl Chloride jacket.
- Ripcord: Yes, for easier stripping during installation.
- Sequential footage marking every two feet to simplify measuring and pulls.
- Flammability / reaction to fire compliance: NFPA 262, UL 910 (Plenum), FT6.
Applications
- Use in intercom/PA systems where reliable signal and power delivery is required.
- Install in sound/audio systems within indoor plenum environments that require NFPA 262 and UL 910 (Plenum) compliance.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of Conductors | 3 |
| Conductor size | 18 AWG |
| Conductor stranding | 7x26 |
| Conductor Material | BC - Bare Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Nom. thickness | 0.009 in (0.23 mm) |
| Nom. insulation diameter | 0.061 in (1.5 mm) |
| Color Code | Black, Red, White |
| Jacket Material | PVC - Polyvinyl Chloride |
| Nom. jacket thickness | 0.015 in (0.38 mm) |
| Overall cable diameter (nominal) | 0.163 in (4.14 mm) |
| Bulk cable weight | 23 lbs/1000ft |
| UL Voltage Rating | 300 V |
| Nom. conductor DCR | 6.5 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 34 pF/ft (110 pF/m) |
| Max. current | 14 Amps per Conductor @ 25°C |
| UL temperature | 75°C |
| Operating Temperature Range | 0°C to +75°C |
| Bend radius (stationary min.) | 1.6 in (41 mm) |
| Bend radius (installation min.) | 1.6 in (41 mm) |
| Max Pull Tension | 67 lbs (30 kg) |
| NEC / UL compliance | Article 800, CMP |
| CEC / C(UL) compliance | CMP |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum number | 5301UE |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
