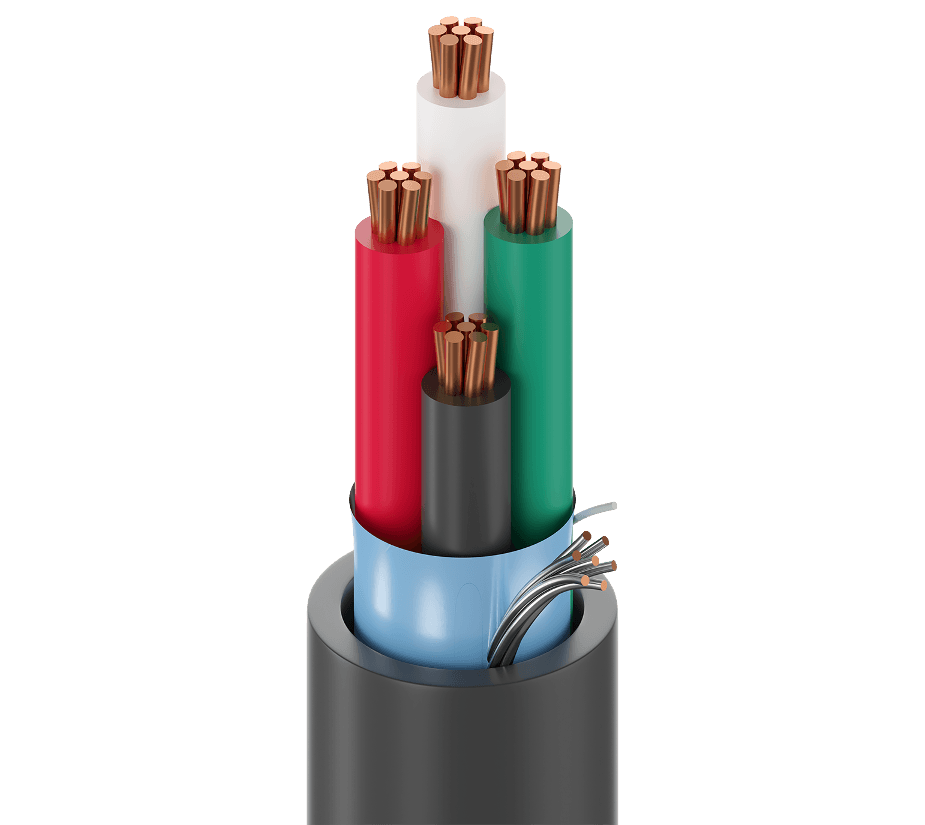

Belden 6302FE 877U, FLRST FS 4C 18 AWG Multi Conductor Natural
SKU:Belden 6302FE 877U
● In stock
Description
Belden 6302FE 877U is a Plenum-CMP security & sound cable for indoor installations in security systems, intercom/PA, and audio/speaker runs, including noisy environments. It features 4 stranded 18 AWG bare copper conductors with Flamarrest® insulation and an overall Beldfoil® tape shield with 100% coverage plus a 24 AWG (7x32) TC drainwire. The Flamarrest® PVC jacket includes a ripcord, and the cable is UL rated 300 V with a 75°C temperature rating.
Key Features
- Plenum-CMP security & sound cable for indoor installations.
- 4 stranded 18 AWG bare copper conductors with Flamarrest® insulation.
- Overall Beldfoil® tape shield with 100% coverage and a 24 AWG (7x32) TC drainwire for noise rejection.
- Flamarrest® PVC jacket with ripcord for easier pulls and stripping.
- Sequential footage marking every two feet to simplify measuring and installation.
Applications
- Use in security system installations where an indoor, plenum-rated cable is required.
- Run intercom/PA wiring in buildings and facilities.
- Support audio/speaker runs for indoor distribution and connections.
- Install in noisy environment locations where shielding helps reduce interference.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of Conductors | 4 |
| Conductor size | 18 AWG |
| Conductor stranding | 7x26 |
| Conductor Material | BC - Bare Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Insulation thickness (nom.) | 0.009 in (0.23 mm) |
| Insulation diameter (nom.) | 0.061 in (1.5 mm) |
| Color Code | Black, Red, White, Green |
| Shield Type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Shield Coverage | 100% |
| Drainwire type | 24 AWG (7x32) TC |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket thickness (nom.) | 0.015 in (0.38 mm) |
| UL Voltage Rating | 300 V |
| Conductor DCR (nom.) | 6.5 Ohm/1000ft |
| Outer shield DCR (nom) | 14.4 Ohm/1000ft (47.2 Ohm/km) |
| Capacitance, Cond-to-Cond (nom.) | 42 pF/ft (140 pF/m) |
| Capacitance, Cond-to-other (nom.) | 76 pF/ft (250 pF/m) |
| Max. current | 11.2 Amps per Conductor at 25ºC (10°C Temperature Rise) |
| Overall cable diameter (nom.) | 0.188 in (4.78 mm) |
| Bulk cable weight | 32 lbs/1000ft |
| UL temperature | 75°C |
| Operating temperature | 0°C to +75°C |
| Bend radius (stationary min.) | 1.9 in (48 mm) |
| Bend radius (installation min.) | 1.9 in (48 mm) |
| Max Pull Tension | 95 lbs (43 kg) |
| Environmental suitability | Indoor, Indoor |
| Flammability / reaction to fire | NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2 |
| NEC / UL compliance | Article 800, CMP |
| CEC / C(UL) compliance | CMP |
| CPR compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum number | 5302FE |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
