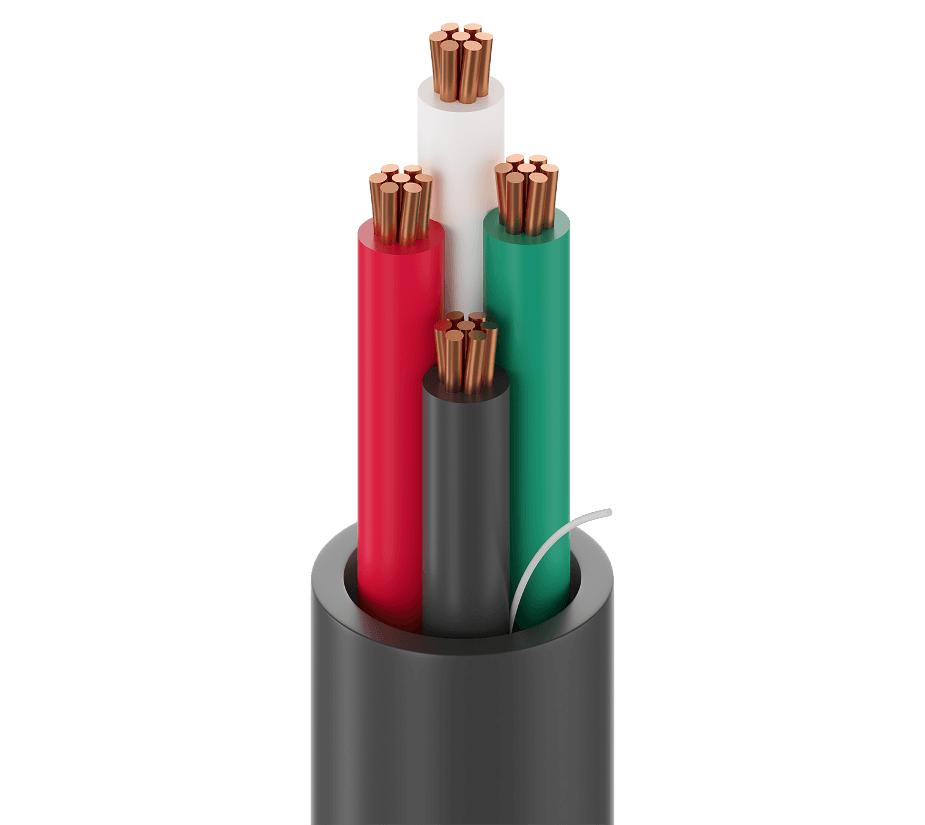

Belden 6302UE 004, Multi Conductor Cable 4C 18 Stranded BC FRPVC Jacket
SKU:Belden 6302UE 004
● In stock
Description
Belden 6302UE 004 is a Security & Sound Cable for Plenum-CMP indoor installations, built with 4 conductors of 18 AWG stranded bare copper (7x26). It uses PVC - Polyvinyl Chloride insulation and a PVC - Polyvinyl Chloride jacket, and includes a ripcord for easier stripping and handling. This cable has a UL Voltage Rating of 300 V and is designed to meet NFPA 262 (UL910) and NEC Article 800, CMP requirements.
Key Features
- Plenum-CMP fire rating for indoor installations.
- 4 conductors of 18 AWG stranded bare copper (7x26).
- PVC - Polyvinyl Chloride insulation with a PVC - Polyvinyl Chloride outer jacket.
- Ripcord for easier stripping and handling.
- UL Voltage Rating: 300 V.
- Shield: No.
Applications
- Use for indoor security system wiring where a plenum-rated cable is required.
- Works well for intercom/PA connections in building spaces designated for plenum use.
- Choose it for audio/speaker runs in indoor installations.
- Commonly used for power-limited control circuits in indoor environments.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Cable type | Security & Sound Cable |
| Insulation thickness (nom.) | 0.009 in (0.23 mm) |
| Insulation diameter (nom.) | 0.047 in (1.2 mm) |
| Color Code | Black, Red, White, Green |
| Jacket thickness (nom.) | 0.015 in (0.38 mm) |
| Overall diameter (Nom.) | 0.18 in (4.6 mm) |
| Bulk cable weight | 30 lbs/1000ft |
| Non-Plenum number | 5302UE |
| Nom. conductor DCR | 6.79 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 34 pF/ft (110 pF/m) |
| Max. current | 4 Amps per Conductor at 25ºC (10°C Temperature Rise) |
| UL temperature | 75°C |
| Operating temperature | -10°C To +75°C |
| Installation temperature | 0°C To +75°C |
| Stationary min. bend radius | 1.8 in (46 mm) |
| Installation min. bend radius | 1.8 in (46 mm) |
| Max Pull Tension | 83.2 lbs (37.7 kg) |
| Environmental suitability | Indoor |
| Flammability / reaction to fire | NFPA 262 (UL910), FT6, IEC 60332-1-2 |
| NEC / UL compliance | Article 800, CMP |
| CEC / C(UL) compliance | CMP |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
