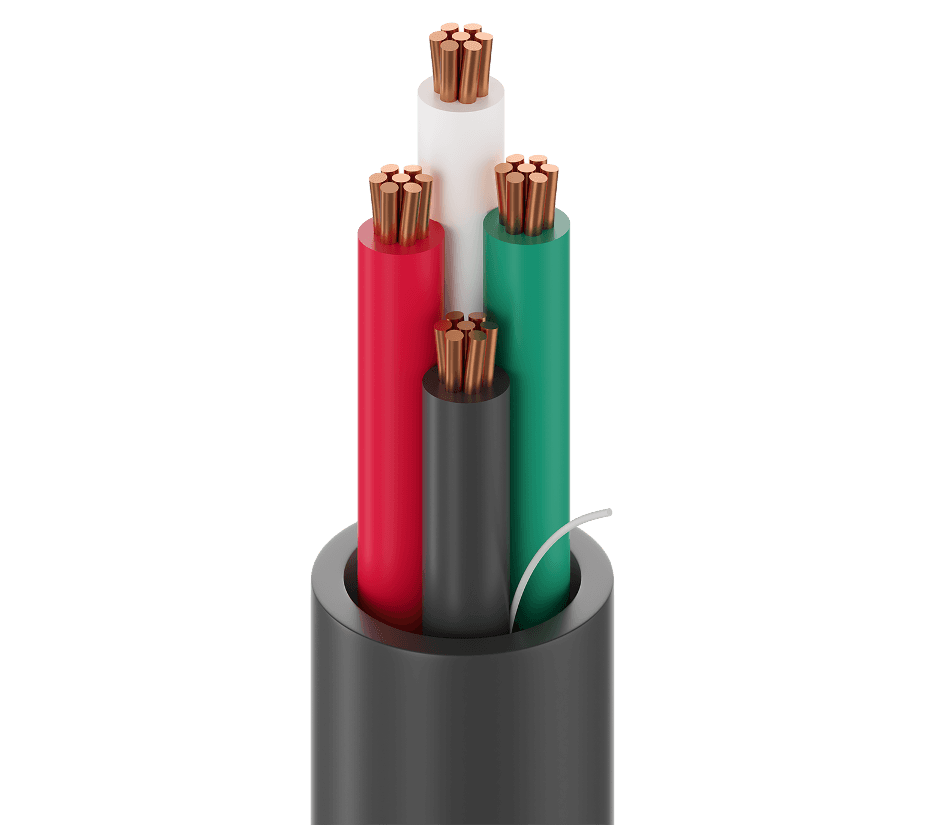

Belden 6302UE 010, 18 4C Stranded BC LSPVC Jacket CMP 75C 1000’
SKU:Belden 6302UE 010
● In stock
ea
Description
Belden 6302UE 010 is a plenum-rated security & sound cable for indoor security systems, intercom/PA, audio/speaker, and power-limited control circuits. It features 4 conductors of 18 AWG stranded bare copper (7x26) with PVC - Polyvinyl Chloride insulation and a PVC - Polyvinyl Chloride jacket. Electrical characteristics include a 300 V rating, 6.79 Ohm/1000ft DCR, and 34 pF/ft (110 pF/m) capacitance Cond-to-Cond. A ripcord is included in the jacket to help simplify stripping.
Key Features
- Plenum fire rating for indoor installations.
- 4 conductors of 18 AWG stranded bare copper (7x26) for security and sound wiring.
- PVC - Polyvinyl Chloride insulation with a PVC - Polyvinyl Chloride outer jacket.
- Ripcord included to help simplify stripping during installation.
- Electrical performance includes 300 V, 6.79 Ohm/1000ft DCR, and 34 pF/ft (110 pF/m) capacitance Cond-to-Cond.
Applications
- Use it for indoor security system wiring where a plenum-rated cable is required.
- Connect intercom/PA systems in building communication installations.
- Run audio/speaker lines in installed sound applications.
- Support power-limited controls in control circuit installations.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of Conductors | 4 |
| Conductor size | 18 AWG (American Wire Gauge) |
| Conductor stranding | 7x26 |
| Conductor Material | BC - Bare Copper |
| Shield | No |
| Max. current | 4 Amps per Conductor at 25ºC (10°C Temperature Rise) |
| Insulation Material | PVC - Polyvinyl Chloride |
| Insulation nom. thickness | 0.009 in (0.23 mm) |
| Nom. insulation diameter | 0.047 in (1.2 mm) |
| Color Code | Black, Red, White, Green |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket nom. thickness | 0.015 in (0.38 mm) |
| Nom. diameter | 0.18 in (4.6 mm) |
| Ripcord | Yes |
| UL temperature | 75°C |
| Operating temperature | -10°C To +75°C |
| Installation temperature | 0°C To +75°C |
| Stationary min. bend radius | 1.8 in (46 mm) |
| Installation min. bend radius | 1.8 in (46 mm) |
| Max Pull Tension | 83.2 lbs (37.7 kg) |
| Bulk cable weight | 30 lbs/1000ft |
| Environmental suitability | Indoor |
| Fire rating | Plenum |
| Flammability / reaction to fire | NFPA 262 (UL910), FT6, IEC 60332-1-2 |
| NEC / UL compliance | Article 800, CMP |
| CEC / C(UL) compliance | CMP |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum number | 5302UE |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
