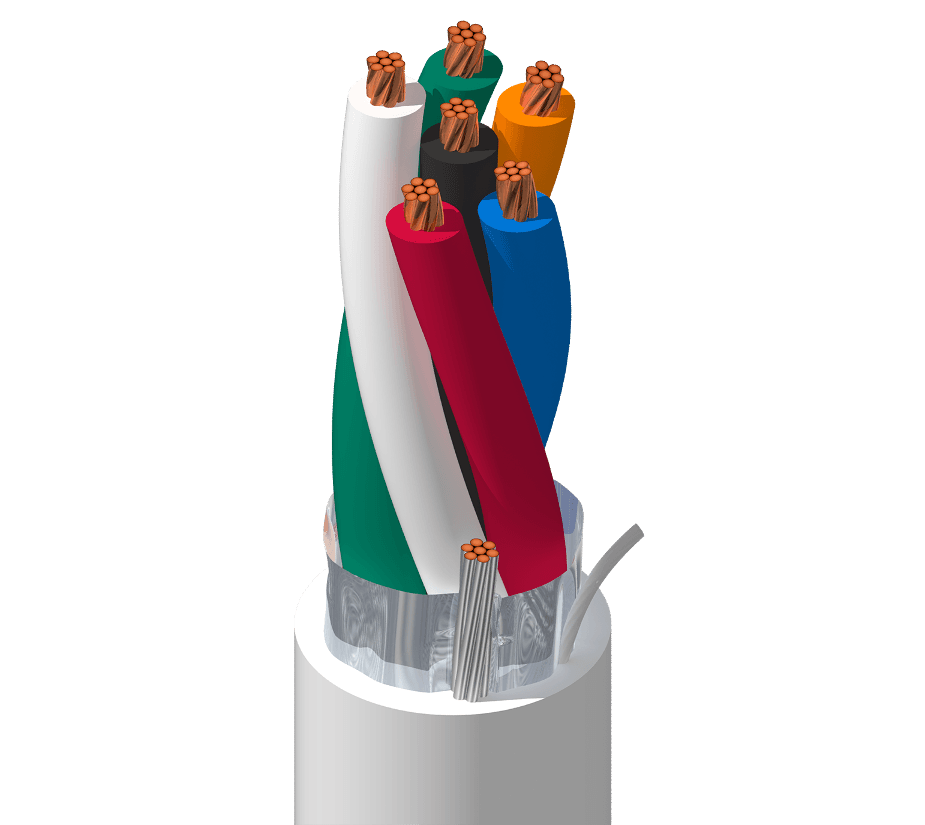

Belden 6304FE 877, 6C 18 AWG Natural
Description
Belden 6304FE 877 is a plenum-rated (Plenum-CMP) security & sound cable with 6-18 AWG stranded bare copper conductors, Flamarrest® insulation, and a Flamarrest® jacket with ripcord. It uses an overall Beldfoil® tape shield with a drain wire to help reduce interference in noisy environments. Designed for indoor - plenum and indoor installations, it includes sequential footage marking every two feet for easier measuring and pull management.
Key Features
- Plenum-rated (Plenum-CMP) security & sound cable for indoor - plenum and indoor installations.
- 6-18 AWG stranded bare copper conductors with 7x26 stranding.
- Overall Beldfoil® tape shield with drain wire and 100% coverage to help reduce interference in noisy environments.
- Flamarrest® insulation and Flamarrest® jacket with ripcord for easier pulling.
- Sequential footage marking every two feet for simpler measuring and pull management.
Applications
- Use in security system installations where a shielded cable is needed to help reduce interference.
- Support intercom/PA wiring runs in indoor building spaces.
- Enable audio/speaker connections with consistent identification using the color code: Black, Red, White, Green, Brown, Blue.
- Fit power-limited controls circuits requiring a 300 V UL voltage rating.
- Route through noisy environment areas where the overall shield and drain can help manage interference.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of Conductors | 6 |
| Conductor size | 18 AWG |
| Conductor stranding | 7x26 |
| Conductor Material | BC - Bare Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Nom. insulation thickness | 0.009 in (0.23 mm) |
| Nom. insulation diameter | 0.063 in (1.6 mm) |
| Color Code | Black, Red, White, Green, Brown, Blue |
| Overall cable diameter (nominal) | 0.226 in (5.74 mm) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Nom. jacket thickness | 0.015 in (0.38 mm) |
| Nom. jacket diameter | 0.226 in (5.74 mm) |
| Ripcord | Yes |
| Shield Type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Shield Coverage | 100% |
| Drainwire type | 24 AWG (7x32) TC |
| Shield construction | Overall Shield & drain |
| UL Voltage Rating | 300 V |
| Nom. conductor DCR | 6.5 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 42 pF/ft (140 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 76 pF/ft (250 pF/m) |
| Max. current | 9.8 Amps per Conductor @ 25°C |
| Nom. outer shield DCR | 14.4 Ohm/1000ft (47.2 Ohm/km) |
| Operating temperature | 0°C to +75°C |
| UL temperature | 75°C |
| Bend radius (stationary min.) | 2.3 in (58 mm) |
| Bend radius (installation min.) | 2.3 in (58 mm) |
| Max Pull Tension | 140 lbs (64 kg) |
| Bulk cable weight | 48 lbs/1000ft |
| NEC / UL compliance | Article 800, CMP |
| CEC / C(UL) compliance | CMP |
| Flammability / reaction to fire | NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum number | 5304FE |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
