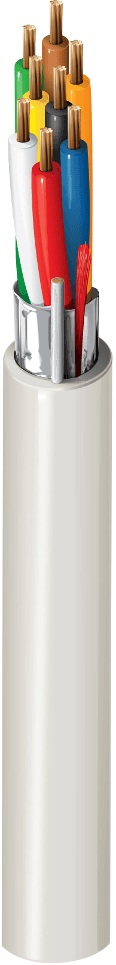

Belden 6306FE 877, FLRST FS Multi Conductor 8C 18 AWG Natural
Description
Belden 6306FE 877 is a plenum-rated security & sound cable with 8 stranded 18 AWG BC - Bare Copper conductors, PVC - Polyvinyl Chloride insulation, and a PVC - Polyvinyl Chloride jacket with ripcord. It includes an overall tape shield with 100% coverage and a 24 AWG (7x32) TC drainwire to support noise rejection in demanding indoor installations. The cable is UL Voltage Rating: 300 V and meets NFPA 262 and UL 910 (Plenum). Nominal Overall Diameter is 0.246 in (6.25 mm) for pathway planning, and it includes sequential footage marking every two feet for easier measuring and pulls.
Key Features
- Plenum-rated construction for indoor - plenum and indoor installations, meeting NFPA 262 and UL 910 (Plenum) flammability / reaction to fire requirements.
- 8 stranded 18 AWG BC - Bare Copper conductors for security & sound wiring needs.
- Overall shield: tape with 100% coverage and Shield Material: Bi-Laminate (Alum+Poly), plus Drainwire type: 24 AWG (7x32) TC.
- PVC - Polyvinyl Chloride jacket with Ripcord: Yes to support easier stripping and routing.
- UL Voltage Rating: 300 V.
- Sequential footage marking every two feet to help track pull length and cut accuracy.
Applications
- Use for security system wiring in indoor plenum spaces where listed fire performance requirements are needed.
- Run intercom/PA lines where shielded construction helps manage interference in noisy environment installations.
- Connect audio/speaker circuits that benefit from an overall shield and drainwire for noise control.
- Support power-limited controls in indoor pathways where consistent footage marking helps maintain accurate cut lengths.
- Install in noisy environment installations where the shielded design supports improved noise rejection.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Conductor stranding | 7x26 |
| Insulation thickness (nom.) | 0.009 in (0.23 mm) |
| Insulation diameter (nom.) | 0.063 in (1.6 mm) |
| Color Code | Black, Red, White, Green, Brown, Blue, Orange, Yellow |
| Jacket thickness (nom.) | 0.015 in (0.38 mm) |
| Overall cable diameter (nom.) | 0.246 in (6.25 mm) |
| Bulk cable weight | 63 lbs/1000ft |
| Non-Plenum number | 5306FE |
| Conductor DCR (nom.) | 6.5 Ohm/1000ft |
| Capacitance, Cond-to-Cond (nom.) | 42 pF/ft (140 pF/m) |
| Capacitance, Cond-to-other (conds + Shield) (nom.) | 76 pF/ft (250 pF/m) |
| Max. current | 9.8 Amps per Conductor @ 25°C |
| Outer shield DCR (nom) | 13.1 Ohm/1000ft (43.0 Ohm/km) |
| Operating temperature | 0°C to +75°C |
| UL temperature | 75°C |
| Bend radius (stationary min.) | 2.5 in (64 mm) |
| Bend radius (installation min.) | 2.5 in (64 mm) |
| Max Pull Tension | 185 lbs (83.9 kg) |
| NEC / UL compliance | Article 800, CMP |
| CEC / C(UL) compliance | CMP |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
