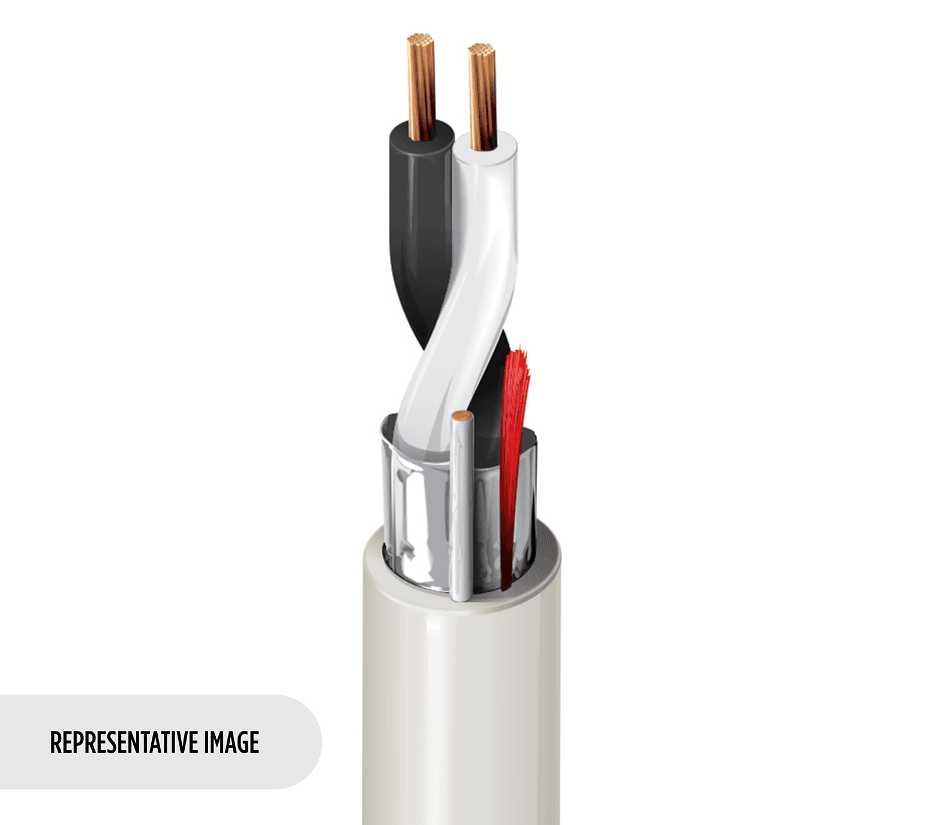

Belden 6320FE 877, Multi Conductor 2C 18 AWG FLRST FS Natural
SKU:Belden 6320FE 877
● In stock
Description
Belden 6320FE 877 is a plenum-rated security and commercial audio cable designed for indoor plenum installations. It uses 2 solid 18 AWG BC - Bare Copper conductors with Flamarrest® insulation and an overall Beldfoil® tape shield with a 20 AWG (7x28) TC drainwire. The Flamarrest® PVC - Polyvinyl Chloride jacket includes a ripcord to support easier pulls and stripping, and the cable includes sequential footage marking every two feet.
Key Features
- Plenum-rated construction for indoor - plenum, indoor environments.
- 2 solid 18 AWG BC - Bare Copper conductors for security and commercial audio wiring.
- Overall tape shield (Bi-Laminate (Alum+Poly), 100% coverage) with 20 AWG (7x28) TC drainwire.
- Flamarrest® PVC - Polyvinyl Chloride jacket with ripcord for easier pulls and stripping.
- Sequential footage marking every two feet for easier measuring and installation.
Applications
- Use in security systems where shielded signal cabling is needed in indoor plenum spaces.
- Support intercom/PA systems for dependable signal performance in building communication runs.
- Install in sound/audio systems for commercial audio wiring where noise reduction is important.
- Specify for power limited controls in indoor installations that require plenum-rated cable.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Cable type | Plenum-rated security and commercial audio cable |
| Insulation Material | PVC - Polyvinyl Chloride |
| Nom. insulation thickness | 0.010 in (0.25 mm) |
| Nom. insulation diameter | 0.0605 in (1.54 mm) |
| Color Code | Black, Red |
| Shield Type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Shield Coverage | 100% |
| Shield construction | Overall shield & drain |
| Jacket Material | PVC - Polyvinyl Chloride |
| Nom. jacket thickness | 0.015 in (0.38 mm) |
| Nom. diameter | 0.151 in (3.84 mm) |
| Bulk cable weight | 21 lbs/1000ft |
| UL Voltage Rating | 300 V |
| Nom. conductor DCR | 6.4 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 70 pF/ft (230 pF/m) |
| Nom. capacitance (Cond-to-other) | 126 pF/ft (413 pF/m) |
| Max. current | 14 Amps per Conductor @ 25°C |
| Operating temperature | 0°C to +75°C |
| UL temperature | 75°C |
| Bend radius (stationary min.) | 1.5 in (38 mm) |
| Bend radius (installation min.) | 1.5 in (38 mm) |
| Max Pull Tension | 45 lbs (20 kg) |
| Flammability / reaction to fire | NFPA 262, UL 910 (Plenum), FT6 |
| NEC / UL compliance | Article 800, CMP |
| CEC / C(UL) compliance | CMP |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum number | 5320FE |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
