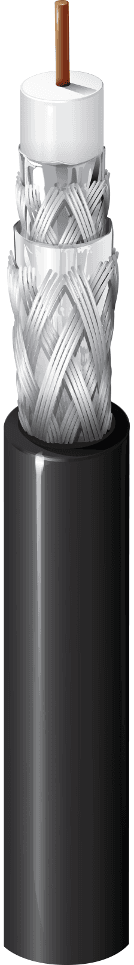

Belden 6339Q8 877U, Coax 18 AWG RG 6 Plenum QUAD SH Natural
Description
Belden 6339Q8 877U is an RG-6 quad-shield coaxial cable with an 18 AWG solid bare copper conductor and a low smoke PVC jacket for plenum indoor installations. It uses foam FEP insulation and a Duofoil® + aluminum braid + Duofoil® + aluminum braid shield stack for strong EMI protection. Key electrical characteristics include 75 Ohm nominal characteristic impedance, 83% nominal velocity of propagation, and published attenuation values up to 1000 MHz. It is designed for surveillance, CATV, and MATV signal distribution in plenum spaces, is CMP rated, and tested to NFPA 262.
Belden 6339Q8 877U Key Features
- RG-6 quad shield (F/B+F/B) coaxial construction for surveillance, CATV, and MATV signal distribution.
- 18 AWG solid BC - bare copper conductor.
- Foam FEP - Fluorinated Ethylene Prop Propylene (Foam) insulation with white color code.
- Shield layers: Tape, Tri-Laminate (Alum+Poly+Alum), Duofoil®, 100% + Braid, Aluminum, 60% + Tape, Tri-Laminate (Alum+Poly+Alum), Duofoil®, 100% + Braid, Aluminum, 40%.
- Low smoke PVC jacket: PVC - Polyvinyl Chloride / FRPVC-Flame Retardant Polyvinyl Chloride; jacket color: Natural.
- Plenum fire rating with NFPA 262 flammability / reaction to fire; NEC / UL compliance: CATVP, CMP; CEC / C(UL) compliance: CMP.
- UL voltage rating: 300 V (CMP).
Belden 6339Q8 877U Applications
- Use it for CATV and MATV signal distribution where RG-6 coax is required.
- Support surveillance, CATV, and MATV installations in Indoor - Plenum and Indoor environments.
- Meet plenum-space requirements where a plenum fire rating and NFPA 262 compliance are specified.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Coax Type | RG-6 |
| RG type | 6 |
| Conductor nominal diameter | 0.040 in |
| Nom. insulation diameter | 0.171 in (4.34 mm) |
| Jacket nominal diameter | 0.267 in (6.78 mm) |
| Flooded | No not flooded over braid |
| Outdoor | No not outdoor grade material |
| Bulk cable weight | 39 lbs/1000ft |
| Nom. capacitance (Cond-to-Shield) | 16.3 pF/ft (53.5 pF/m) |
| Nom. conductor DCR | 6.4 Ohm/1000ft |
| Nom. outer shield DCR | 2.5 Ohm/1000ft (8.2 Ohm/km) |
| Attenuation @ 1 MHz | 0.24 dB/100ft |
| Attenuation @ 3 MHz | 0.45 dB/100ft |
| Attenuation @ 5 MHz | 0.55 dB/100ft |
| Attenuation @ 8 MHz | 0.70 dB/100ft |
| Attenuation @ 10 MHz | 0.85 dB/100ft |
| Attenuation @ 50 MHz | 1.50 dB/100ft |
| Attenuation @ 100 MHz | 2.10 dB/100ft |
| Attenuation @ 200 MHz | 3.10 dB/100ft |
| Attenuation @ 400 MHz | 4.50 dB/100ft |
| Attenuation @ 700 MHz | 6.00 dB/100ft |
| Attenuation @ 900 MHz | 6.90 dB/100ft |
| Attenuation @ 1000 MHz | 7.30 dB/100ft |
| Operating temperature | -20°C to +75°C |
| UL temperature | 75°C |
| Installation min. bend radius | 2.6 in (66 mm) |
| Max Pull Tension | 76 lbs (34 kg) |
| Environmental suitability | Indoor - Plenum, Indoor |
| Sustainability | CA Prop 65, Product Lens™, Environmental Product Declaration (EPD) Available |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
