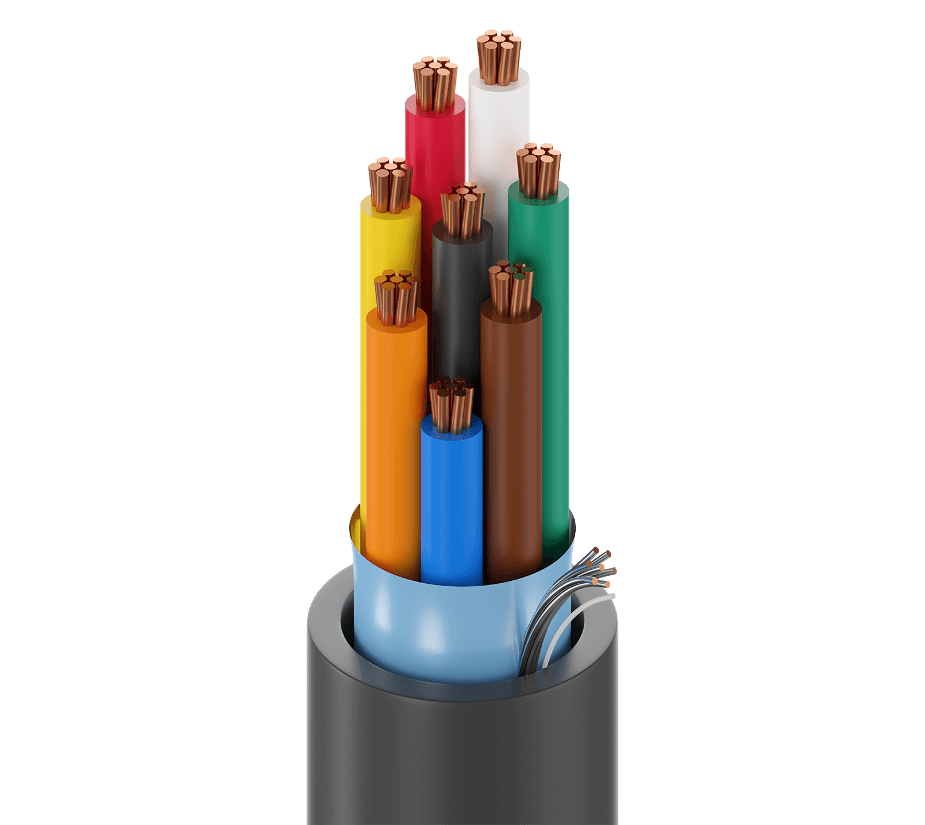

Belden 6506FE 877, Security Alarm Cable CMP 8C 22 AWG Shielded
SKU:Belden 6506FE 877
● In stock
Description
Belden 6506FE 877 is a plenum-rated Security & Sound Cable with 8 stranded 22 AWG BC - Bare Copper conductors and PVC - Polyvinyl Chloride insulation. It features a Bi-Laminate (Alum+Poly) tape shield with 100% coverage and a 24 AWG (7x32) TC drainwire type for noise rejection. The PVC - Polyvinyl Chloride jacket includes a ripcord and sequential footage marking every two feet. UL Voltage Rating is 300 V (CMP), with flammability / reaction to fire listings including NFPA 262 and UL 910 (Plenum).
Key Features
- Plenum-rated construction for indoor plenum and indoor installations.
- 8 stranded conductors with 22 AWG size and 7x30 stranding.
- Bi-Laminate (Alum+Poly) tape shield with 100% coverage, plus a 24 AWG (7x32) TC drainwire type.
- PVC - Polyvinyl Chloride jacket with ripcord: Yes and sequential footage marking every two feet.
- UL Voltage Rating: 300 V (CMP) and flammability / reaction to fire: NFPA 262, UL 910 (Plenum), FT6.
Applications
- Supports security system wiring where dependable signal integrity is needed in indoor spaces.
- Fits intercom/PA installations that benefit from shielded construction in electrically noisy environments.
- Handles audio/speaker connections where noise rejection is important.
- Serves power-limited controls circuits in indoor plenum areas.
- Performs well in a noisy environment where shielding helps reduce interference.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Cable type | Security & Sound Cable |
| Conductor Material | BC - Bare Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Nom. insulation thickness | 0.009 in (0.23 mm) |
| Nom. insulation diameter | 0.047 in (1.2 mm) |
| Color Code | Black, Red, White, Green, Brown, Blue, Orange, Yellow |
| Jacket Material | PVC - Polyvinyl Chloride |
| Nom. jacket thickness | 0.015 in (0.38 mm) |
| Nom. diameter | 0.190 in (4.83 mm) |
| Overall cable diameter (nominal) | 0.190 in (4.83 mm) |
| Non-Plenum number | 5506FE |
| Nom. conductor DCR | 16.2 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 33 pF/ft (110 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 59 pF/ft (190 pF/m) |
| Max. current | 1.9 Amps per Conductor at 25ºC |
| Nom. outer shield DCR | 18.54 Ohm/1000ft (60.83 Ohm/km) |
| UL temperature | 75°C |
| Operating temperature | 0°C to +75°C |
| Bend radius (stationary min.) | 1.9 in (48 mm) |
| Bend radius (installation min.) | 1.9 in (48 mm) |
| Max Pull Tension | 78 lbs (35 kg) |
| Bulk cable weight | 32 lbs/1000ft |
| NEC / UL compliance | Article 800, CMP |
| CEC / C(UL) compliance | CMP |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
