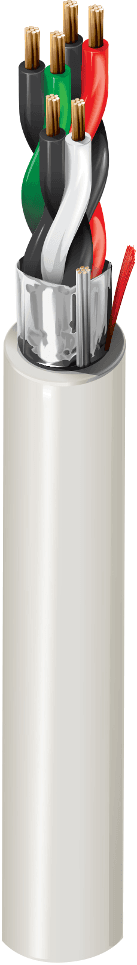

Belden 6542FE 877, Multi Conductor 3 Pair 22 AWG FLRST FS
Description
Belden 6542FE 877 is a Plenum-CMP security & sound cable with 3 pairs of 22 AWG stranded bare copper conductors. It features Flamarrest® insulation, an overall Beldfoil® tape shield with drain wire, and a Flamarrest® PVC jacket with ripcord. Rated 300 V, it meets NFPA 262 (UL910) and FT6 requirements for plenum installations.
Key Features
- Plenum-CMP security & sound cable construction for plenum installations.
- 3 pairs of 22 AWG stranded bare copper conductors (7x30).
- Overall Beldfoil® tape shield with 100% coverage and drain wire for grounding.
- Flamarrest® PVC jacket with ripcord for cleaner pulls and terminations.
- Sequential footage marking every two feet.
Applications
- Use for security system wiring where a plenum-rated cable is required.
- Connect intercom/PA systems in building spaces that call for CMP cable.
- Run audio/speaker lines where an overall shield helps manage noise in noisy environment installations.
- Install in power-limited control circuits in plenum areas.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Elements | pair(s) |
| No. of elements | 3 |
| Insulation Material | PVC - Polyvinyl Chloride |
| Nom. insulation thickness | 0.009 in (0.23 mm) |
| Nom. insulation diameter | 0.047 in (1.2 mm) |
| Color Code | Black & Red, Black & White, Black & Green |
| Shield Type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Shield construction | Overall Shield & drain |
| Drainwire type | 24 AWG (7x32) TC |
| Jacket Material | PVC - Polyvinyl Chloride |
| Nom. jacket thickness | 0.015 in (0.38 mm) |
| Nom. overall diameter | 0.216 in (5.49 mm) |
| Bulk cable weight | 26.1 lbs/1000ft |
| Non-Plenum number | 5542FE |
| UL Voltage Rating | 300 V |
| Nom. conductor DCR | 17.6 Ohm/1000ft |
| Nom. outer shield DCR | 14.4 Ohm/1000ft (47.2 Ohm/km) |
| Nom. capacitance cond-to-cond | 33 pF/ft (110 pF/m) |
| Nom. capacitance (Cond-to-other) | 59.4 pF/ft (195 pF/m) |
| Nom. inductance | 0.18 µH/ft (0.59 µH/m) |
| Max. current | 2 Amps per Conductor at 25ºC |
| UL temperature | 75°C |
| Operating temperature | 0°C to +75°C |
| Stationary min. bend radius | 2.16 in (54.9 mm) |
| Installation min. bend radius | 2.16 in (54.9 mm) |
| Max Pull Tension | 60.1 lbs (27.3 kg) |
| Flammability / reaction to fire | NFPA 262 (UL910), FT6 |
| NEC / UL compliance | Article 800, CMP |
| CEC / C(UL) compliance | CMP |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark |
| UK regulation compliance | UKCA Mark |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
